MICROS Workstation 5/5A Dimensions on Stand with

Protégé Customer Display

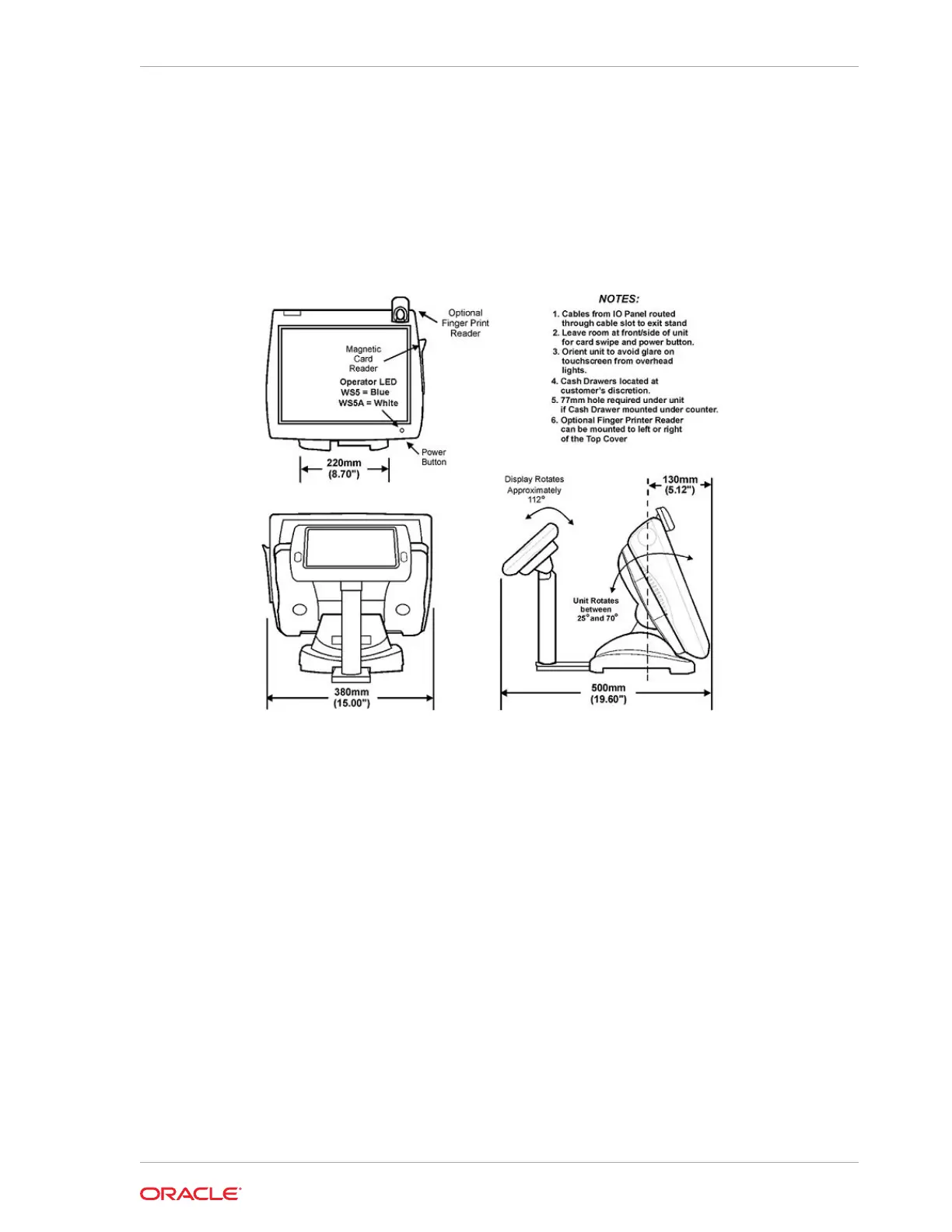

Figure 29-30 Workstation 5/5A Dimensions on Stand with Protégé Customer

Display

Chapter 29

MICROS Workstation 5/5A Dimensions on Stand with Protégé Customer Display

29-29
