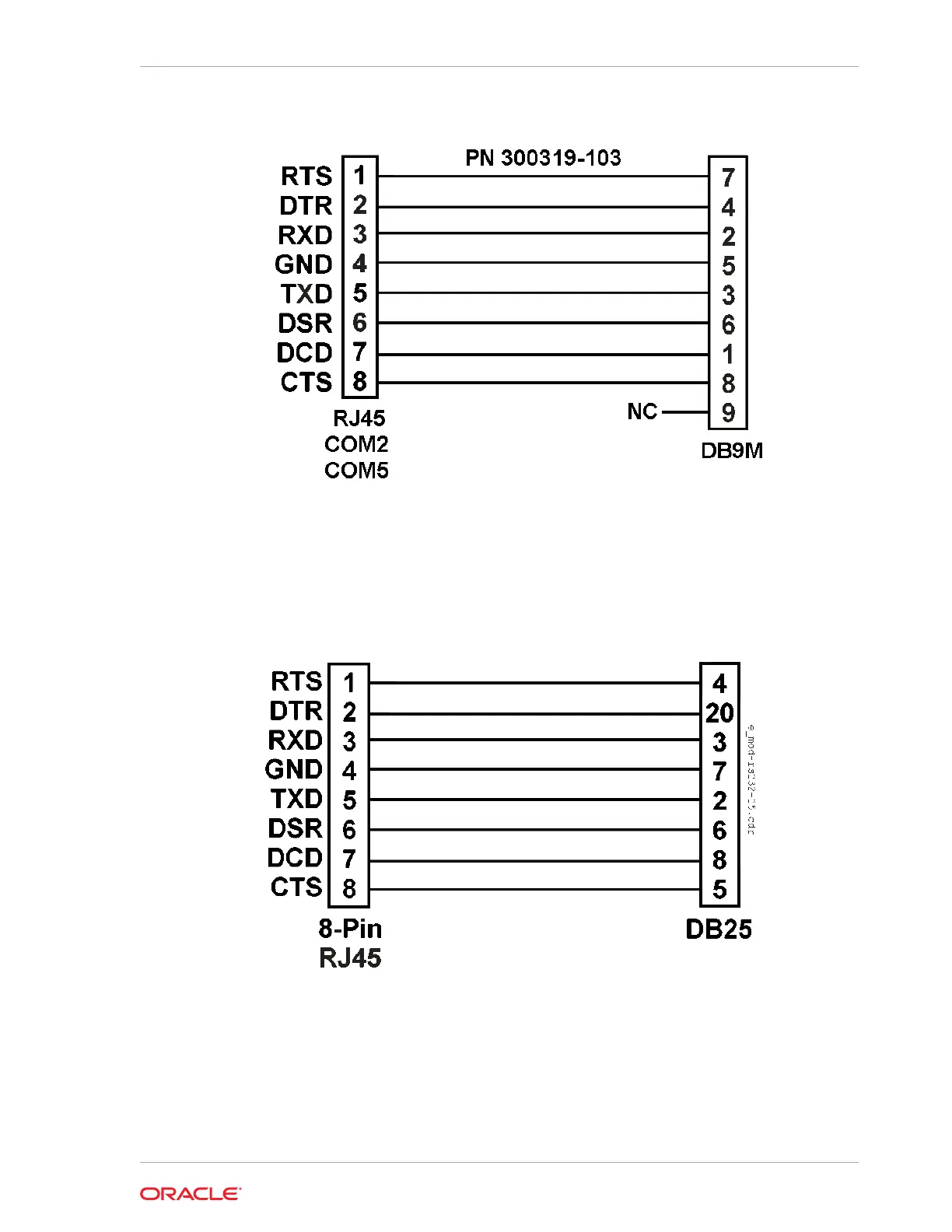

Figure 31-4 Modular RS232 Port to DB9 Male Connector
The figure below shows a diagram of a similar cable that terminates in a DB25 Male
connector.
Figure 31-5 Modular RS232 Port to DB25 Male Connector
8-Pin to 6-Pin Hook-up RS422 Cable
The figure below shows a diagram of the patch cable connected between a
workstation IDN or RS422-A/RS422-B port to a printer IDN port or 6-pin modular jack
on a wall plate.
Chapter 31
8-Pin to 6-Pin Hook-up RS422 Cable
31-3
