MICROS Workstation 6 Series - Side Dimensions with 10-

Inch Customer Display and High Mount

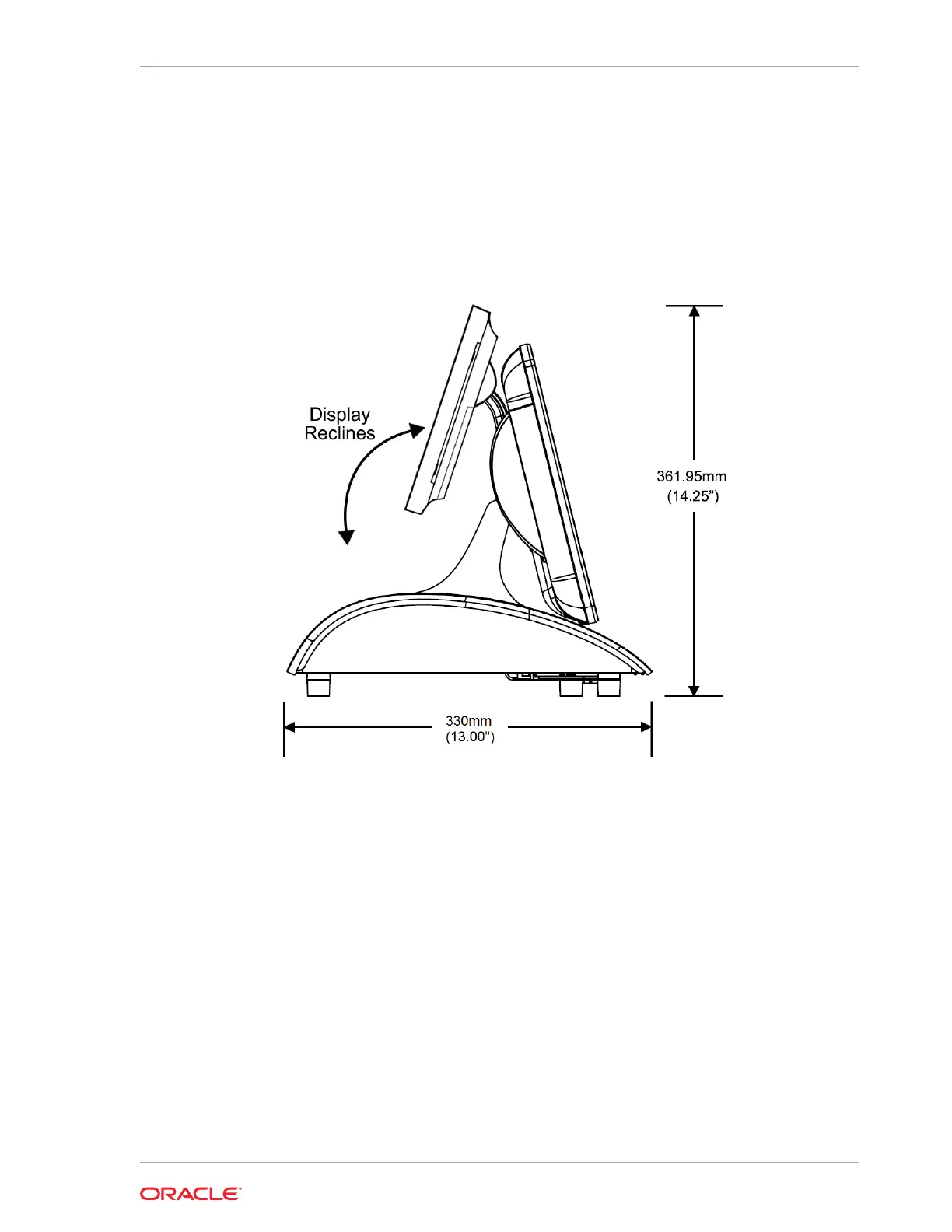

Figure 29-11 Dimensions (Side) of the 10-Inch Customer Display with High

Mount

Chapter 29

MICROS Workstation 6 Series - Side Dimensions with 10-Inch Customer Display and High Mount

29-11
