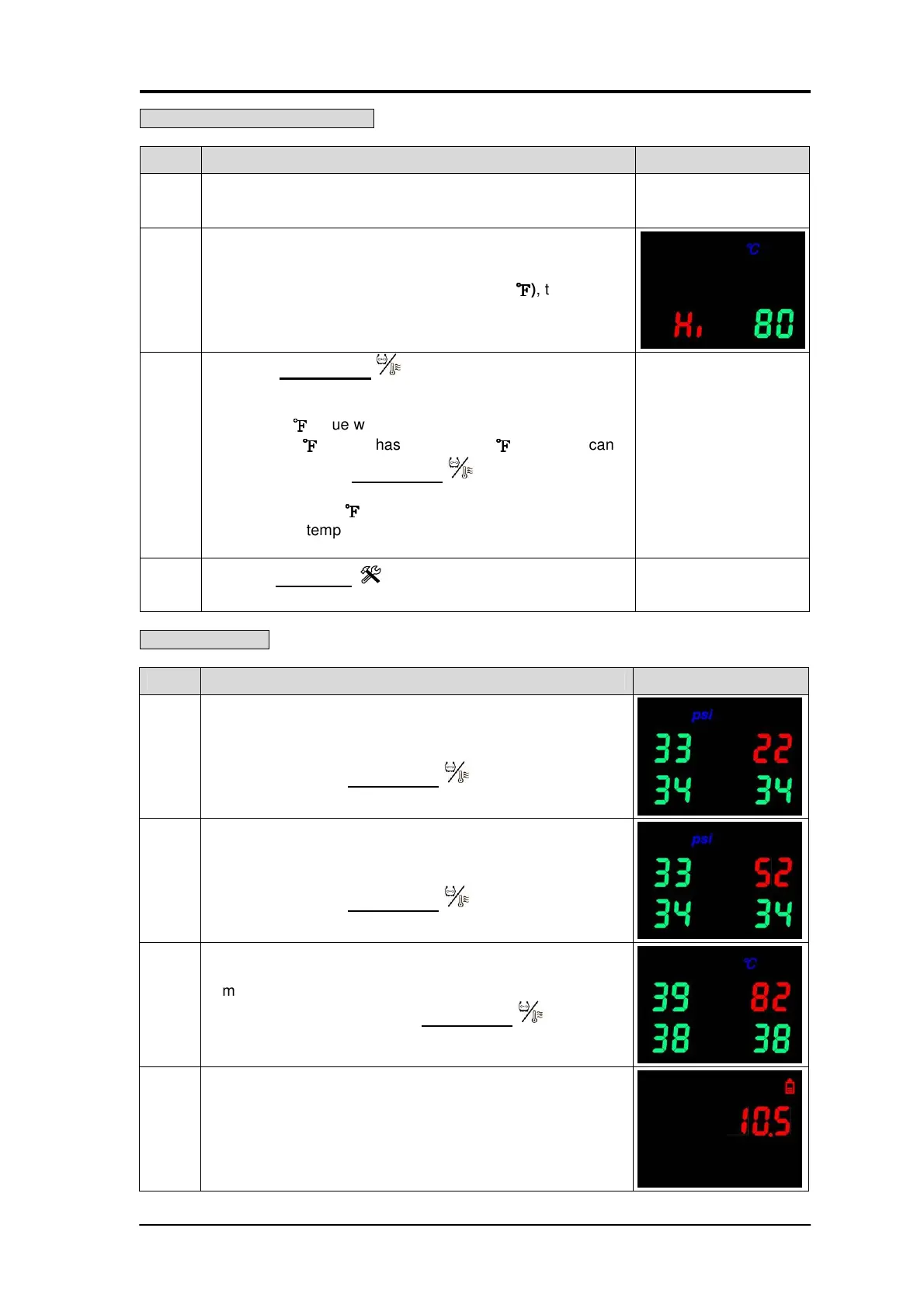

Manual for Tire Pressure Monitoring Systems, TPMS
10/20
Tire Over Temperature Warning
Step
Operation process Photograph
1
After the setting operation of high tire pressure, the system
will automatically entry the setting mode of high tire
temperature.
2
The first shown figure is the tires factory default high
temperature value (80
o
C) for the tires. The green light
indicates the tires factory default (80
o
C / 176
℉
℉℉
℉
), the blue
light indicator for “C”, and the directive character indicator for
“Hi”.
3
Press the function key to change the high temperature
figure.
The high temperature figure set up range is from 60
o
C to
100
o
C ( the
℉
℉℉
℉
value will add 1 unit; and the unit value will
return to 140
℉
℉℉
℉
when it has reached 212
℉
℉℉
℉
, the driver can
continually push the function key to adjust the
appropriate high temperature figure; the factory default
value is 80
o
C / 176
℉
℉℉
℉
.
When the tire temperature exceeds this setting, the system
will generate the warning signals.
4
Press the setup key to complete the high temperature
setting operation.
Alarm Instruction
Type
Warning Description Photograph
1
The tire pressure of RF Tire (22 psi) is under tire pressure
default (26 psi), which shown in red; and
active an alarm to
warn the driver, press
function key to turn off the alarm.
2
The tire pressure of RF Tire (52 psi) is above tire pressure
default (50 psi), which shown in red; and
active an alarm to
warn the driver, press
function key to turn off the alarm.
3
The tire temperature of RF Tire (82
o
C) is above tire
temperature default (80
o
C), which shown in red; and
active
an alarm to warn the driver, press
function key to turn off
the alarm.
4
The battery voltage of
Vehicle
(10.5v) is under battery
voltage default (11v), which is shown in red.
