Orban OPTIMOD-AM 9300 User Manual

OPTIMOD-AM DIGITAL INSTALLATION
2-61
3. To change the properties of an existing connection:
Right-click the connection in the “connection List” window and choose “Proper-
ties.” The “Connection properties” window opens (see page 2-52).
Connecting Using Windows 7 Direct Serial Connection:
You must install the Windows 7 direct serial connection as a modem device using the
Modem setup procedures as shown in the steps below.
1. Add and configure a Direct Connection for Windows 7.

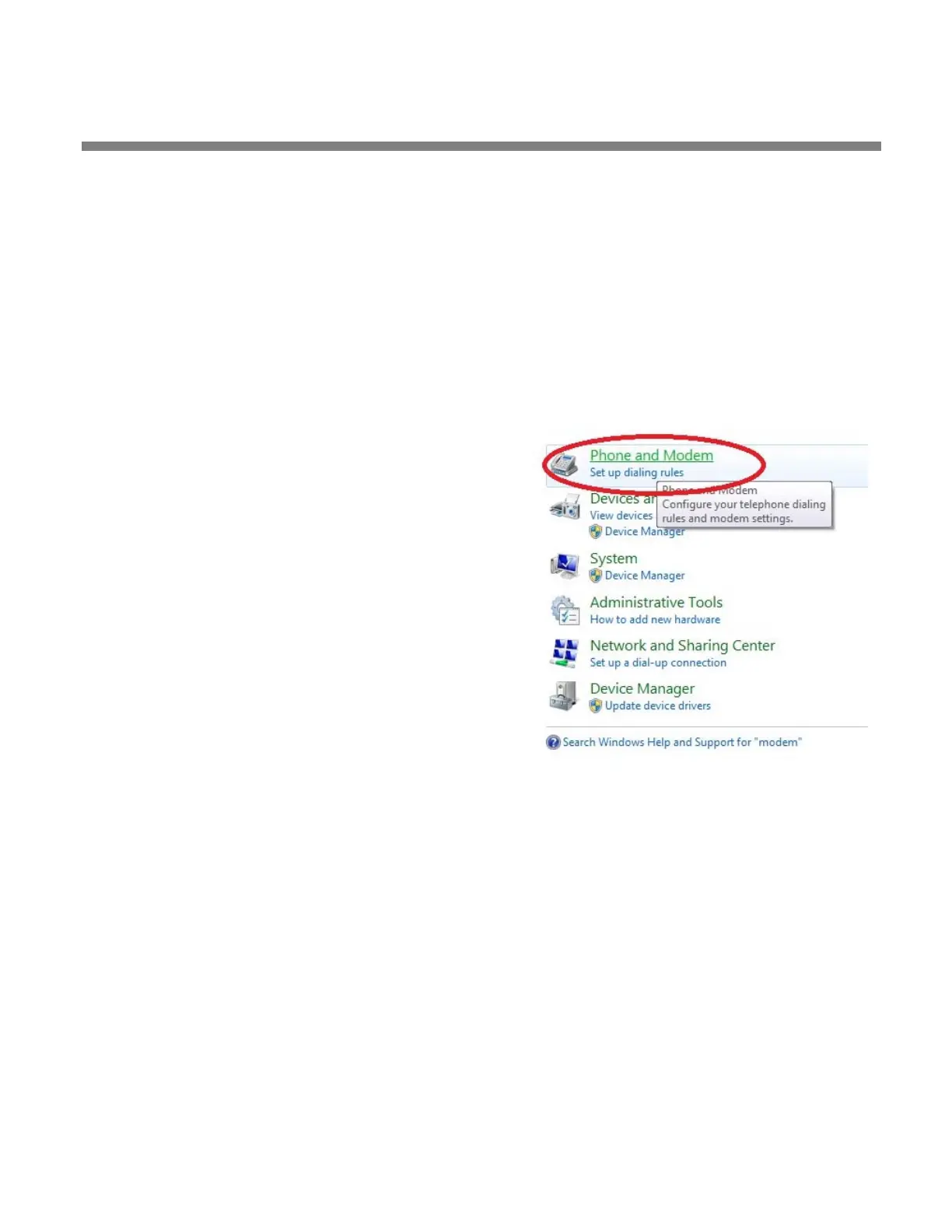

A) Go to the Control Panel. Find the Mo-
dem applet. This is normally under the
Phone and Modem section.
Click on it to start the Phone and Mo-
dem applet.

Orban OPTIMOD-AM 9300 Specifications

General

Sampling Rate	48 kHz
Operating Temperature	0°C to +40°C
Processor Type	DSP
Type	Audio Processor
A/D Conversion	24-bit
D/A Conversion	24-bit
THD+N	<0.01%
Processing Resolution	24-bit
