Orbea RALLON 2022 User Manual

BLUE PAPER RALLON · 202224 | ORBEA ORBEA | 25
GREASE
1
6
12 N.m
8
25 N.m
GREASE
GREASE
2.1
2.2
3.1
3.2
3.3
4.1
4.2
5.1
5.2
TECHNICAL MANUAL
EN

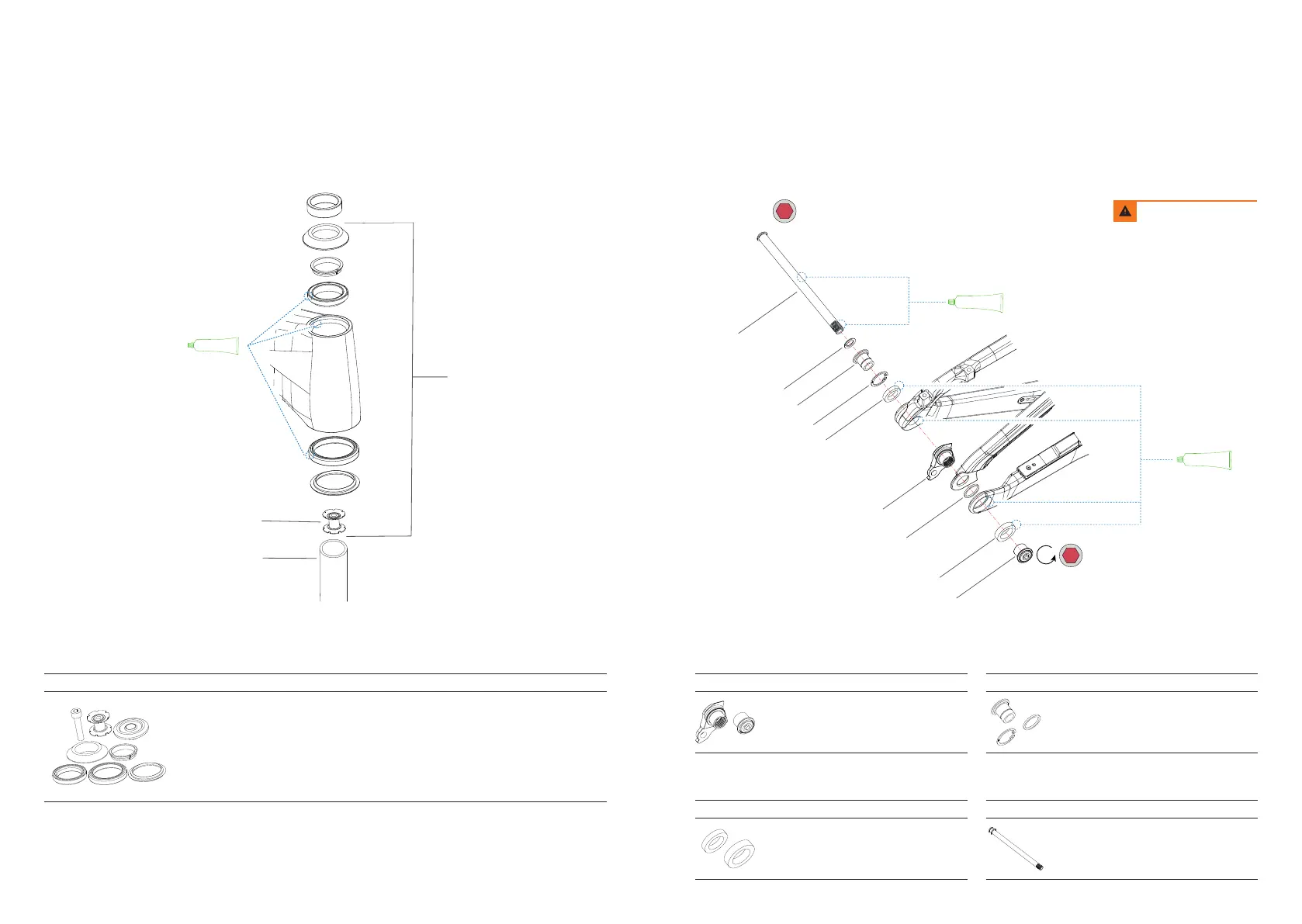

HEADSET SPARE PARTS AND ASSEMBLY
01 INTEGRATED MTB HEADSET 1-1/8" - 1-1/2". ACROS AIX-336
Includes starnut, topcap and preload bolt
ART Nº: X023 QTY.
1.1 Stem topcap. Round
1
1.2 M5 headset preload bolt
1
1.3 1-1/8" starnut
1
1.4 Headset cover
1
1.5 Compression ring
1
1.6 Upper bearing
1
1.7 Lower bearing
1
1.8 Fork crown race
1
HEADSET
Starnut
Fork's steerer tube
REAR AXLE AND DERAILLEUR HANGER
Always follow the recommended
torque settings.
02 SRAM UDH STD X12 DERAILLEUR HANGER
ART Nº: X004 QTY.
2.1 Sram UDH X12 derailleur hanger
1
2.2 Sram UDH X12 hanger nut
1
04 REAR AXLE BEARING KIT RALLON 22
ART Nº: XA16 QTY.
4.1 $GCTKPI'PFWTQ/CZZZ
1
4.2 $GCTKPI'PFWTQ/CZZZ
1
03 REAR AXLE HARDWARE KIT RALLON 22
(Bearings or hanger not included)
ART Nº: XA15 QTY.
3.1 Left axle insert + o-ring
1
3.2 Clirclip steel SB 26mm
1
3.3
Right dropout UDH spacer
1
05 THRU-AXLE BOOST 12x148 HOLLOW (12x187x1.0x15)
Dettachable lever not included
ART Nº: XA17 QTY.
5.1 6JTWCZNGZZZ*QNNQY
1
5.2 Thru-axle washer
1

Orbea RALLON 2022 Specifications

General

Frame Material	Carbon
Wheel Size	29"
Rear Travel	160mm
Front Travel	170mm
Drivetrain	1x12
Brake Type	Hydraulic Disc
Headset	Acros Alloy
Rear Derailleur	Shimano XT M8100
Shifters	Shimano XT M8100
Weight	14.5 kg
Rear Axle	12x148mm Boost
Internal Cable Routing	Yes
ISCG05	Yes
Saddle	Fizik Taiga
Stem	OC Mountain Control MC20
Handlebar	Race Face Aeffect R
Front Brake	Shimano M6120
Rear Brake	Shimano M6120
Cassette	10-51T
Chain	Shimano M9100
Crankset	32T
Wheelset	Race Face AR 30c
Tires	Maxxis Assegai 2.5"
