BLUE PAPER RALLON · 202234 | ORBEA ORBEA | 35
4
5 N.m
2
0.5 N.m
2
0.5 N.m
2.5
1 N.m
21
GREASE
22.1
22.2
22.3
23
24.1
24.2
24.2
24.3
2.5
1 N.m
24.3
L
R
L =
R =
180mm
190mm
25.3
25.4
25.4
25.1
25.4
2 N.m
2
2 N.m
2
25.2
26
2 N.m
2

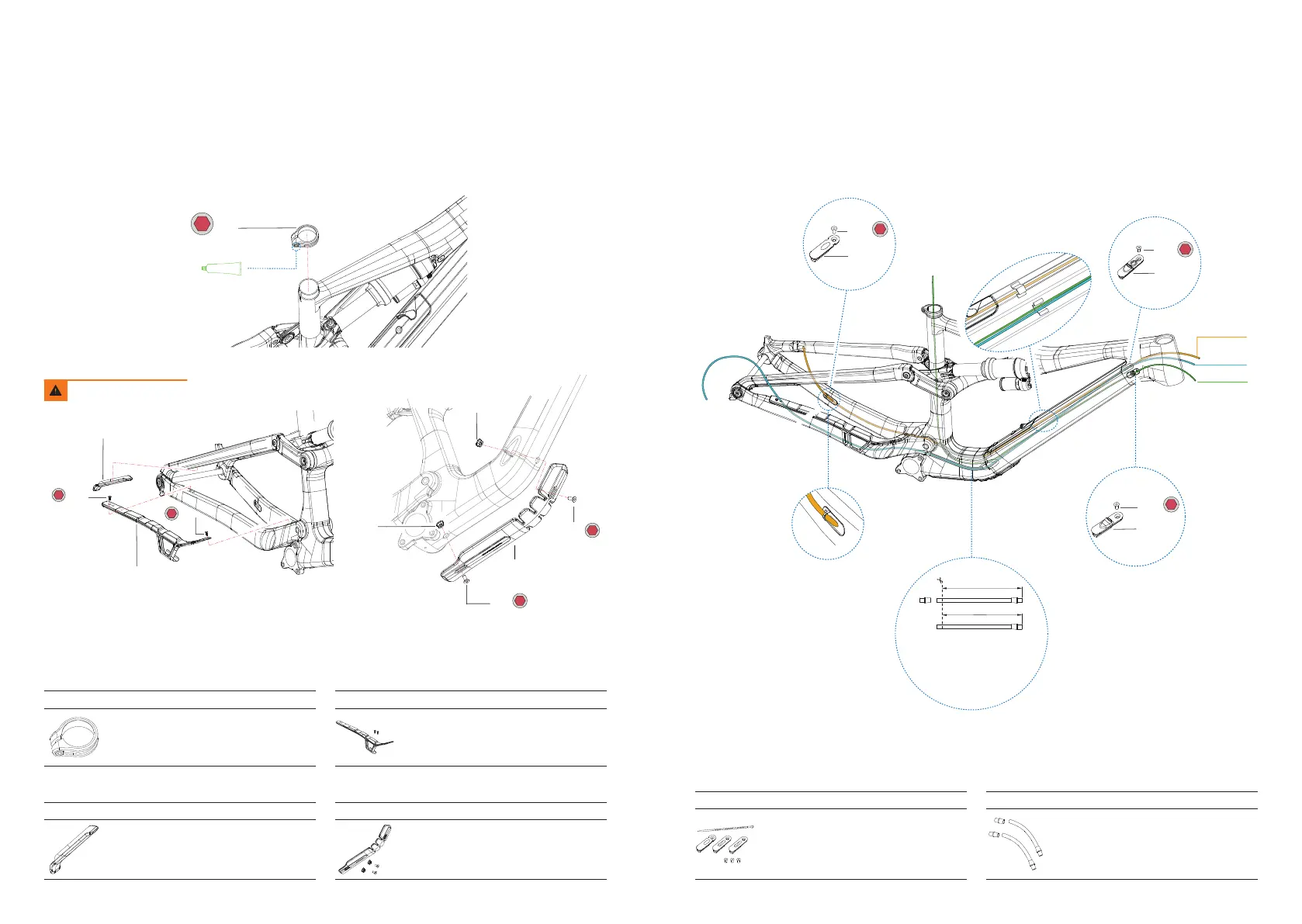

TECHNICAL MANUAL
EN
SEATPOST CLAMP
AND PROTECTORS
21 SEATPOST CLAMP 34.9 BLK
ART Nº: X202 QTY.
Seatpost clamp 34.9 BLK
1
23 RUBBER ADHESIVE RIGHT SEATSTAY PROTECTOR
ART Nº: XA34 QTY.
Rubber adhesive right seatstay protector
1
22 RUBBER CHAINSTAY PROTECTOR RALLON 22
ART Nº: XA33 QTY.
22.1 Rubber right chainstay protector Rallon 22
1
22.2 Bolt M3x12 DIN7991
1
22.3 Bolt M3x16 DIN7991
1
24 RUBBER DOWNTUBE PROTECTOR RALLON 22
ART Nº: XA35 QTY.
24.1 Rubber downtube protector Rallon 22
2
24.2 $QNV/Z
2
24.3 Inner nut protector
2
Always follow the recommended
torque settings
CABLE ROUTING. REAR DERAILLEUR, REAR BRAKE
AND DROPPER SEATPOST
25 CABLEGUIDE KIT RALLON 22
ART Nº: XA36 QTY.
25.1 Framestop. 2 cables. Sealed. 5.2/4.2mm
1
25.2 Framestop. 1 cable. Sealed. 4.2mm
1
25.3 Framestop brake chainstay
1
25.4 Bolt M3x12 DIN7991
3
25.5 <KRVKGZOO
1
26 KIT TUBES CABLE ROUTING FULL SUSP. 20
ART Nº: X313 QTY.
26.1 6WDGECDNGTQWVKPI(WNN5WUROO
2
26.2 6WDGVWDQECDNGTQWVKPI(WNN5WUR
2
Tie the hose around the cableguide
with the ziptie included to avoid
rubbing against the spokes
%WVVWDGUVQVJGURGEKƂGF
lenght. (All sizes):
Rear brake hose
Rear derailleur
Seatpost remote
