BLUE PAPER RALLON · 202230 | ORBEA ORBEA | 31
GREASE
5
5
6
GREASE
GREASE
8
7
5
10 N.m
4
4 N.m
5
10 N.m
8
9
8
12 N.m
11
10
10 N.m
8 N.m
5
5
GREASE
18.1
18.2
18.3
18.4
18.5
GREASE
TECHNICAL MANUAL
EN

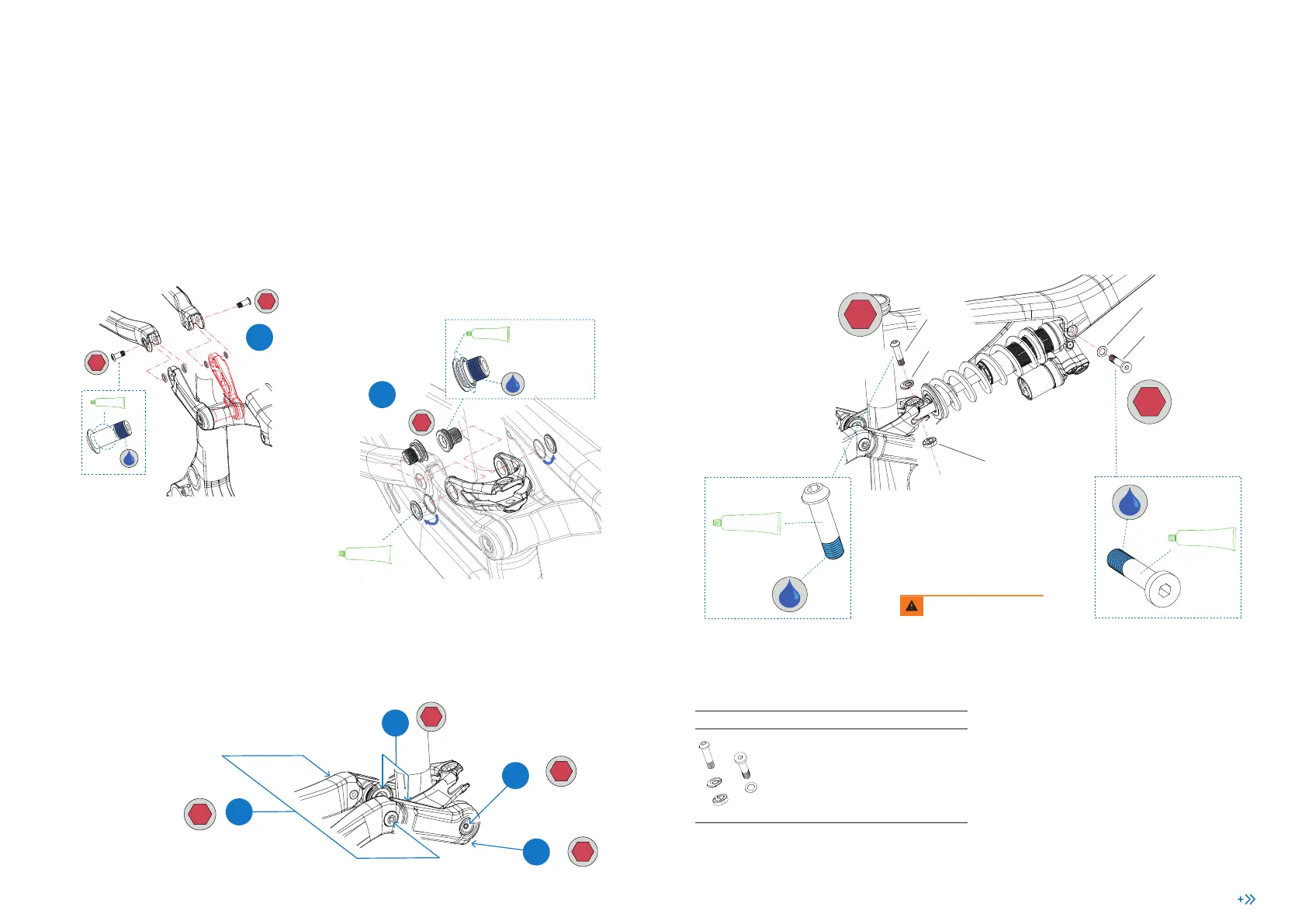

6. Install the seatstays onto the linkage.
Apply grease only on the bolts´ body, not on the thread.
Apply medium strength threadlock on the bolts threads.
8. 6KIJVGPVQVJGƂPCNVQTSWGUGVVKPIVJGNKPMCIG
preload bolt.
9. 6KIJVGPVQVJGƂPCNVQTSWGUGVVKPIVJGNKPMCIGRKPEJDQNV
10. 6KIJVGP VQ VJG ƂPCN VQTSWG UGVVKPI VJGNKPMCIGUJQEM
yoke bolts.
11. 6KIJVGP VQ VJG ƂPCN VQTSWG UGVVKPI VJGNKPMCIGUGCVU-
tays bolts.
7. Install the shock yoke (29" or Mullet). Install the spa-
cers o-rings onto the spacers before installing the linka-
ge-shock yoke spacers.
Apply grease only on the bolts´ body, not on the thread.
Apply medium strength threadlock on the bolts threads.
Do not apply grease
on thread
Do not apply grease
on thread
SHOCK AND YOKE ASSEMBLY
GEOMETRY CHANGE AND 29" / MULLET SETUPS
18 SHOCK-FRAME FIXING KIT RALLON 22
For 29" and Mullet
ART Nº: XA30 QTY.
18.1 Shock yoke bolt (M8xP1) (29" and Mullet)
1
18.2
7RRGTIGQƃKREJKR
(Not used with mullet yoke)
1
18.3 .QYGTIGQƃKREJKR
(Not used with mullet yoke)
1
18.4 Shock-frame bolt (M8xP1)
1
18.5 Shock-frame washer
1
SHOCK ASSEMBLY
Do not apply grease on thread
Do not apply grease on thread
LINKAGE
LINKAGE ASSEMBLY
Always follow the recommended
torque settings.
