Wall Mounting
 Remove the installation mounting plate.
 Check the spirit level bubble for correct positioning of drill holes.
 Drill 6 x Ø8 mm holes for rawl plugs (supplied).

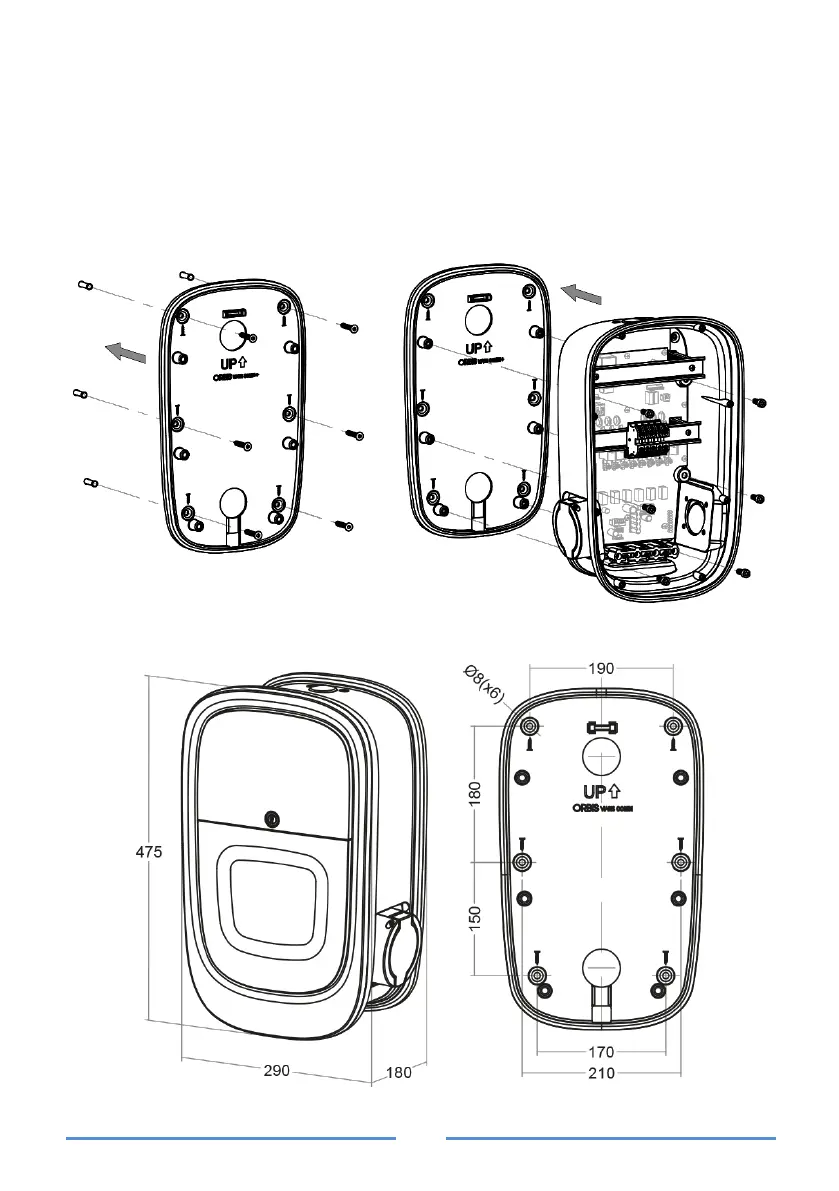

 Bolt the installation plate to the wall. Fig. 1
 Attach the charger to mounting using six M8 screws (supplied). Fig. 2
DIMENSIONS
Fig. 1
Fig. 2
