SPEED CONTROL LEVER (HST)

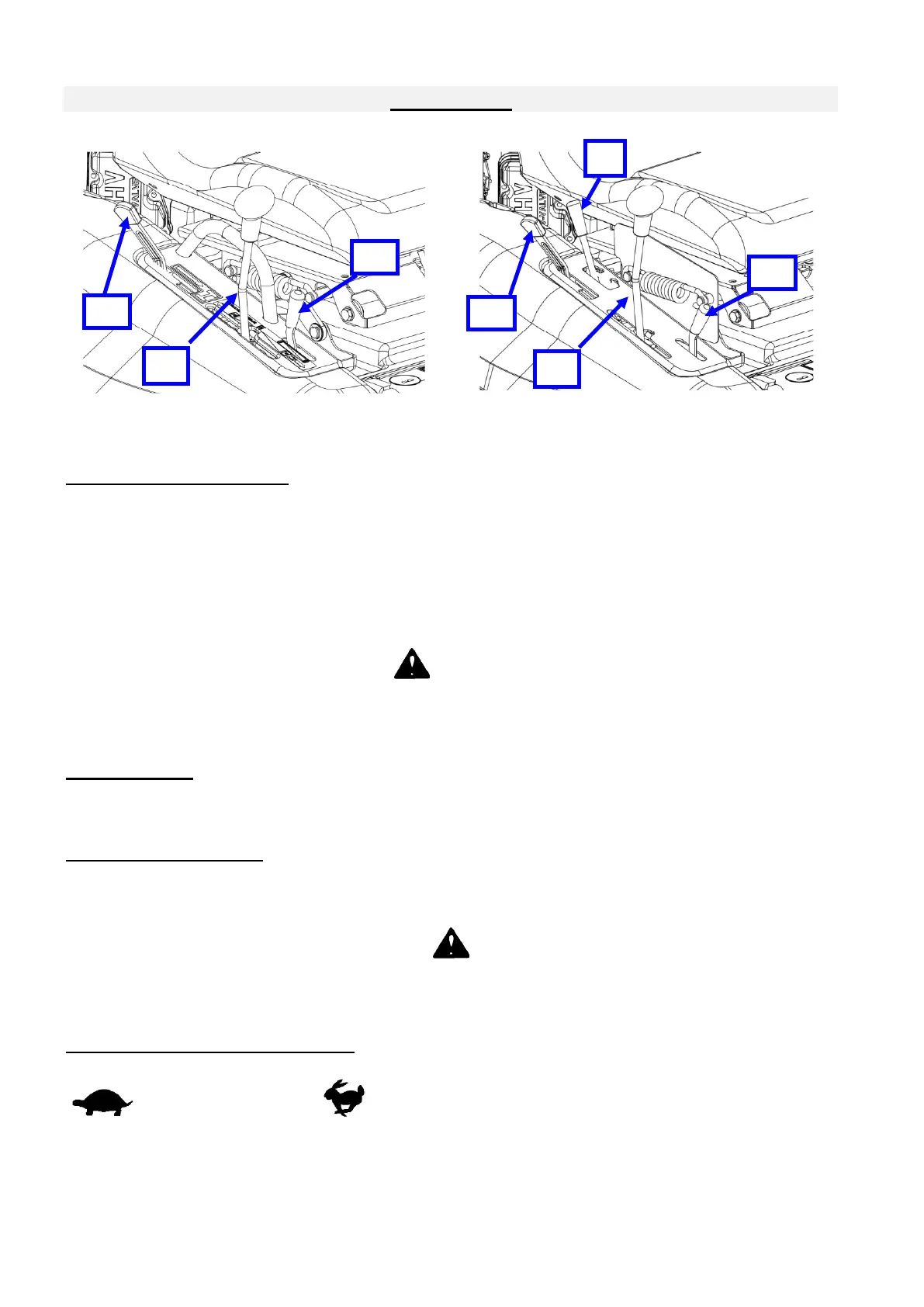

This lever is used to go forward, reverse and stop the machine (1, Fig 5a & 5b). When the lever is
moved to « R » the machine is going on reverse. When lever is moved from « N » to « F », the
machine is going forward. When lever is located in « N » position the machine is stopped.
Travel speed is increased by pushed the lever from « N » to « F » or « R ». Travel speed is
decreased by push the lever from « F » or « R » to « N ».
Push or release lever gradually (except on an emergency) in order to avoid sudden stop and go.
DANGER
When the travel lever is released to stop the machine, it might be damaged. Release the lever
to « N » gently, except in case of emergency to avoid sudden stops.
THROTTLE LEVER
Push the throttle lever(2, Fig 5a & 5b) forward to increase engine speed, pull the throttle lever
backward to decrease engine speed. The machine is always used at full engine speed to mow.
DIFFERENTIAL LOCK LEVER
This lever(3, Fig 5a & 5b) is used that the rear wheels to be moved together in slipping areas. The diff
lock should be locked when one wheel is slipping. Release the lever as soon as the machine leaves
the slipping area.
The diff lock shoud be used in straight line: never use the diff lock lever when turning.
The damage to the transmission will not be covered by the warranty
SUB CHANGE LEVER (ONLY ON RM952)
This lever control to basic driving speed condition. (4, Fig 5b)
[ ] is Low speed position. [ ] is Hi speed position.
To move the lever, push it completely down then move to the wished position by keeping it pushed
and release it.
For the Grass cutting work, we suggest to use Low speed position to reduce the machine damage.
On the Neutral position (N), HST gearbox is disengaged. It enable to push the machine without
engine power.
