5.1.5 lubrication for each part
1) Grease about every 30 hours, add engine oil (# 30) to other moveing parts as needed.
Neglecting to lubricate the grease may cause damage due to poor lubrication.

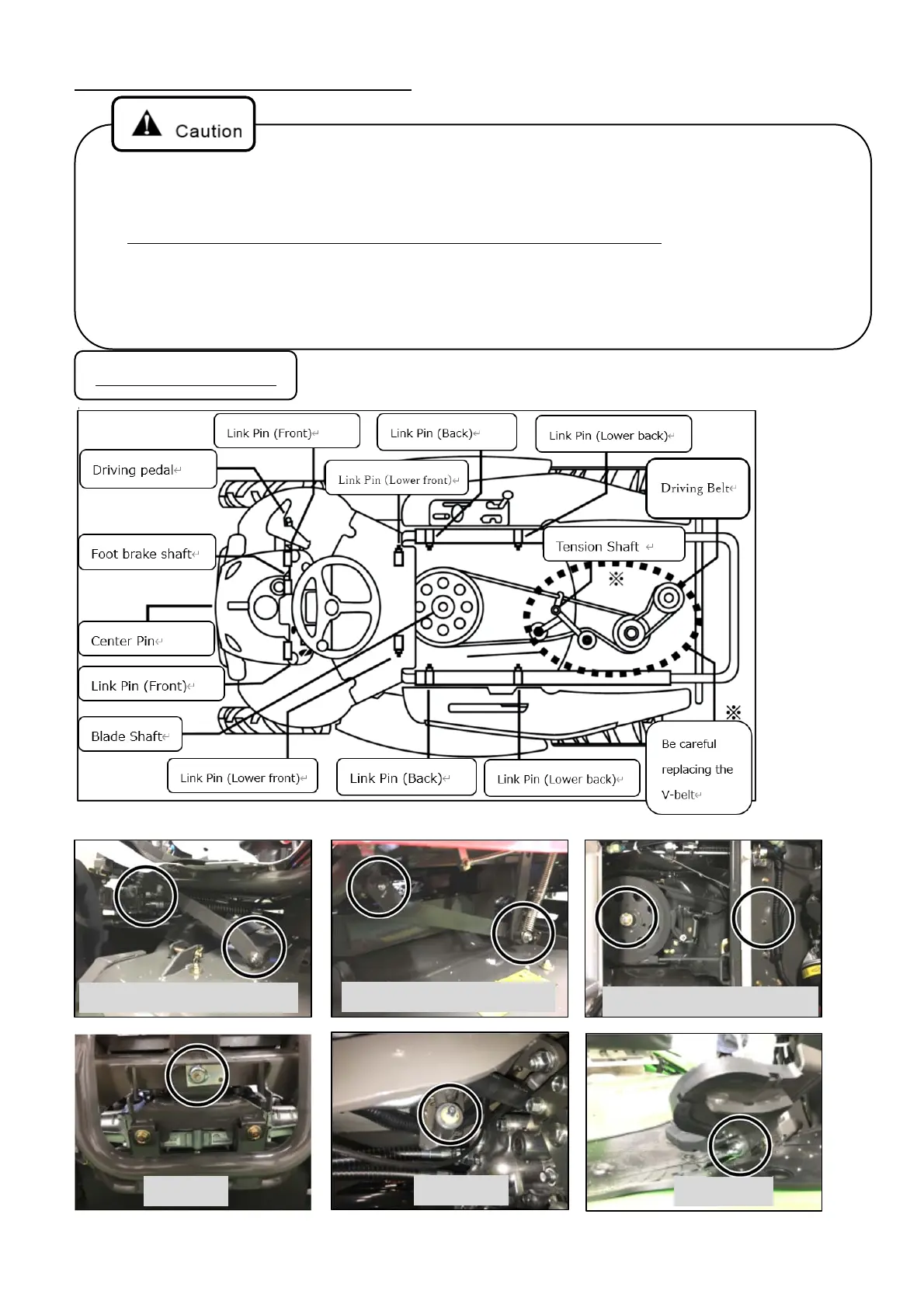

Lubricate with reference to the grease nipple in the figure below.
Recommended grease consistency number: No. 2
2) A grease nipple is provided on each shaft. You can inject grease with a grease gun,
but if you do not have it, please ask to your dealer shop.
Center Pin
BladeShaft・Tension Shaft
Pedal Shaft
Brake Shaft
Link Pin Rear
(Upper, Lower)
Link Pin Front
(Upper, Lower)
Grease nipple position
