5. 点検・整備・調整
- 45 -
②Blade belt adjustment (under seat bracket)
Visually inspect the belt for damage. If it is cracked or
worn, replace it with a new one.
③Adjusting the belt retainer (under the seat bracket)
① Set the cutting height adjustment lever to the position of about 30 mm.
③ Move the Blade clutch lever to the "on" position.

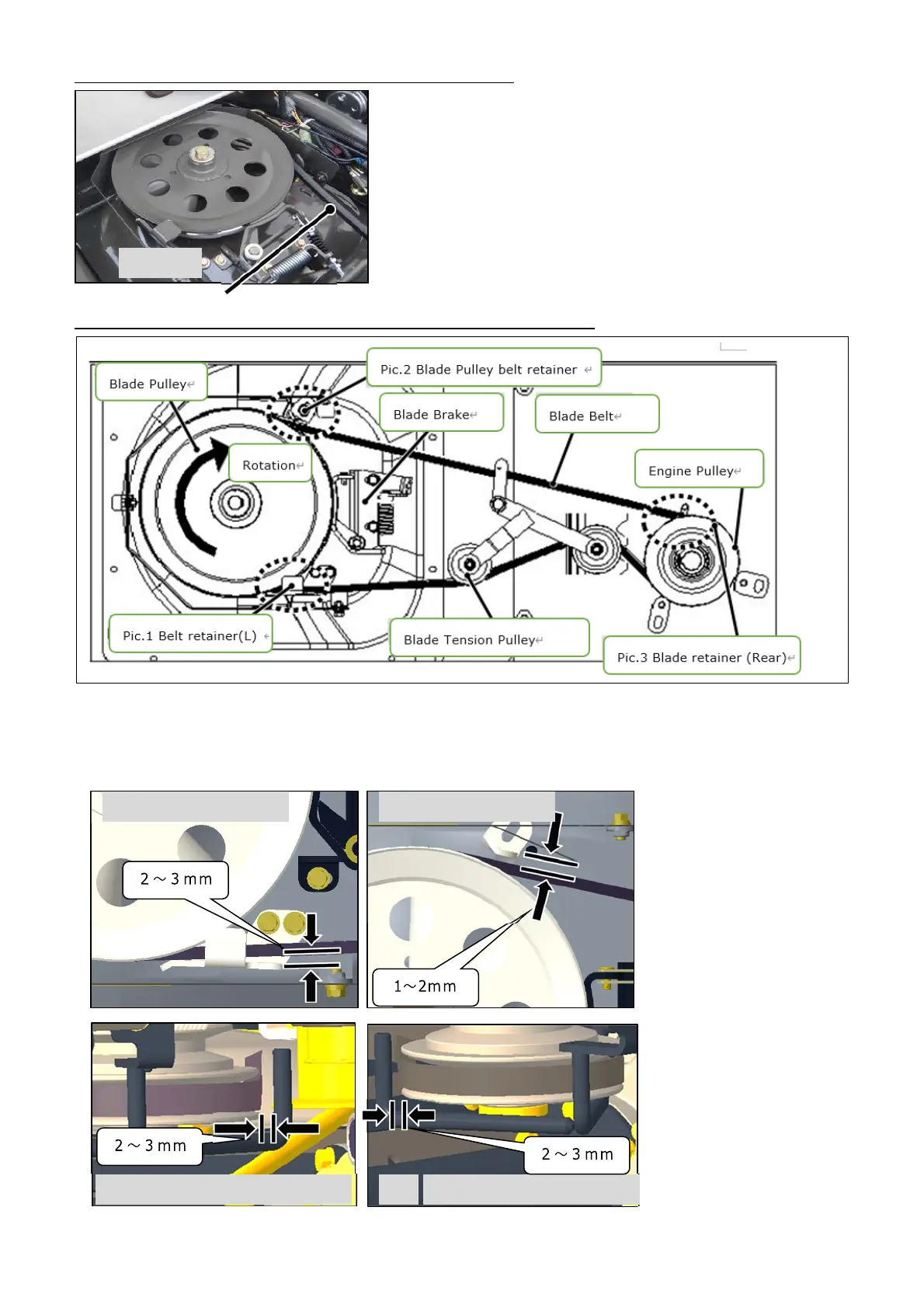

④ Adjust the clearance between each belt retainer with reference to the following.
Blade Belt
Pic.1Belt retainer (L ) Pic.2Belt retainer(R)
Pic.3 Belt retainer (Rear) Left Pic.3 Belt retainer (Rear) Right
