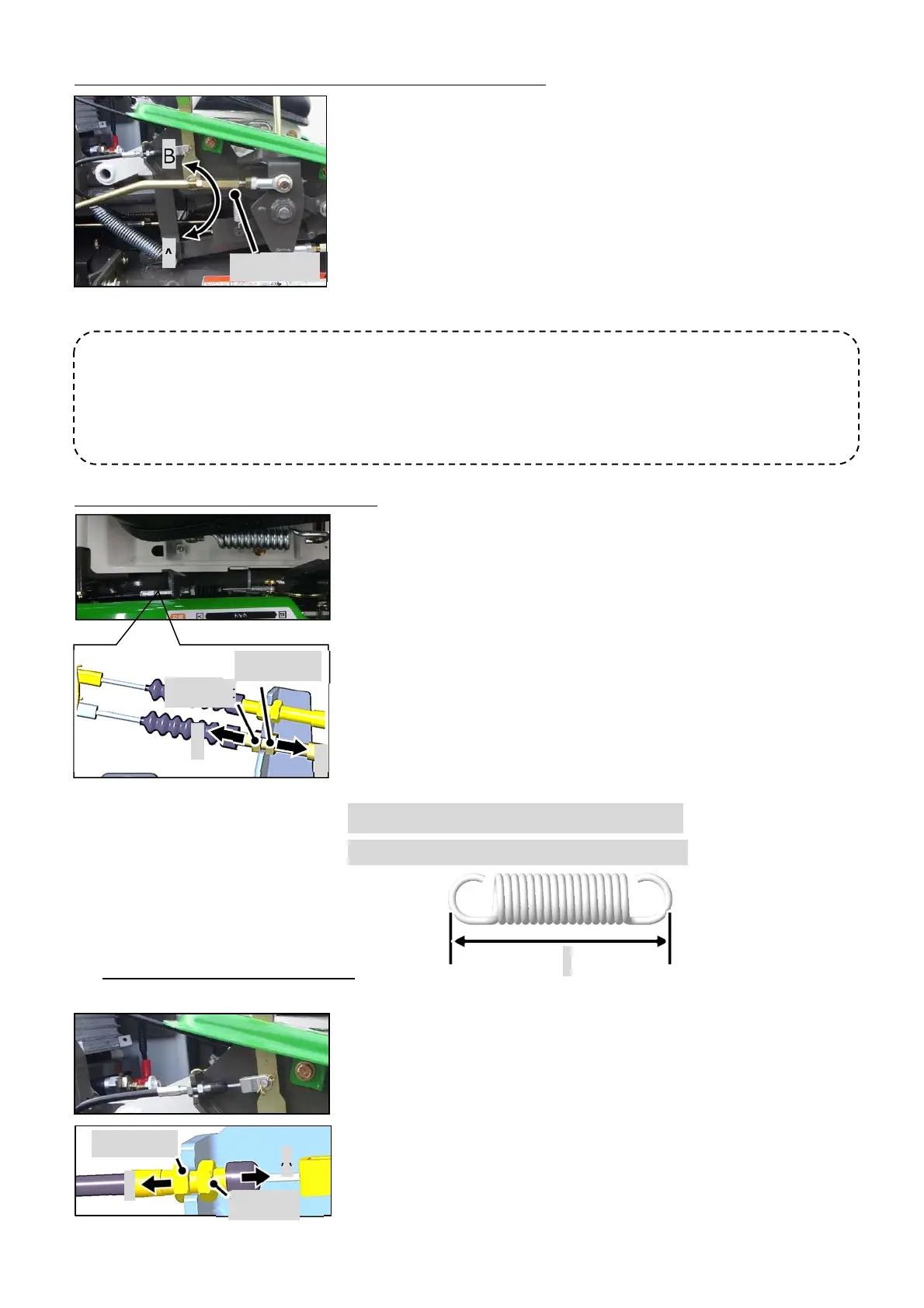

⑥Adjusting the Speed shift lever (change pedal)
② Move the Speed shift lever to the neutral "N" position.
② Adjust by turning the turnbuckle connected to the shift
lever.
③ When moving a little in the forward direction.
…Turn the turnbuckle in direction A.
④ When moving a little in the reverse direction.
…Turn the turnbuckle in the B direction.
Reference︔
Adjustment of the speed shift lever (change pedal) is not necessary except when
disassembling the mission etc. Adjust if the position of the shift lever is not aligned with
the guide display.
⑦Blade clutch wire adjustment
Adjust with the adjustment nut of the Blade clutch wire,
referring to the photo on the left.
① When the knife belt tension is weak.
…Adjust nut in direction A.…
② When the Blade belt is tight.
…Adjust nut in direction B…
Spring extension
① At the highest cutting height, approximately 125 mm
② The lowest cutting height is about 135 mm.
⑧
Diff-lock wire adjustment.
Refer to the photo on the left, adjust with the adjustment
nut of the diff-lock wire, and check if it operates properly
after the adjustment.
① If the differential lock is not work.
…Adjust nut move to direction A…
③ If the differential lock is not released.
…Adjust nut move to direction B…
B
Lock Nut
Adjust Nut
Turnbuckle
A
B
A
B
A
Lock Nut
Adjust Nut
Highest cutting height︓About L=125mm
Lowest Cutting height.︓About L=135mm
L
