UNPACKING AND ASSEMBLY
OREGON® Cordless Tool System
POLE SAW MODEL PS250
AC 1113 - F/N 563397
UNPACKING AND ASSEMBLY
UNPACKING
WHAT’S IN THE BOX?
The pole saw requires some assembly
before use. These items ship with the
pole saw:
• Powerhead
• Extendable shaft with attached
cutting head
• Guide bar
• Saw chain
• Blade cover
• Harness
• Screwdriver
• Allen wrench
• Two Allen screws
• Bar and chain oil
• Charger and power cord (if so equipped)
• Battery (if so equipped)
After removing the pole saw from the
box, inspect it carefully to ensure no
damage has occurred during shipping,
and that no parts are missing. If any parts
are damaged or missing, do not use the
pole saw. Contact OREGON® Cordless
Tool System at .. to obtain
replacement parts.
ASSEMBLY
DANGER: TO AVOID SERIOUS
PERSONAL INJURY, DO NOT
OPERATE THE POLE SAW WITHOUT
THE EXTENDABLE SHAFT, GUIDE
BAR, SAW CHAIN, AND SIDE COVER
PROPERLY ASSEMBLED.
WARNING: A BATTERY OPERATED
TOOL WITH THE BATTERY PACK
INSERTED IS ALWAYS ON AND CAN
START ACCIDENTALLY. REMOVE
THE BATTERY PACK FROM THE
POLE SAW BEFORE ATTACHING THE
EXTENDABLE SHAFT, BAR, AND
CHAIN.
ASSEMBLING THE
EXTENDABLE SHAFT
The extendable shaft fits into the motor
housing on the powerhead (Fig. ).
• It is important to ensure that the
internal drive shaft is properly seated.
To ensure proper seating, use a
clean rag to pull the aluminum drive
shaft out from the fiberglass pole—
approximately in ( cm). Using the
rag, turn the aluminum shaft while
pushing down slightly. This will allow
the drive shaft to properly seat on the
shaft inside of the motor housing. The
cylindrical end of the drive shaft will be
completely hidden below the rim of the
motor housing once properly seated.

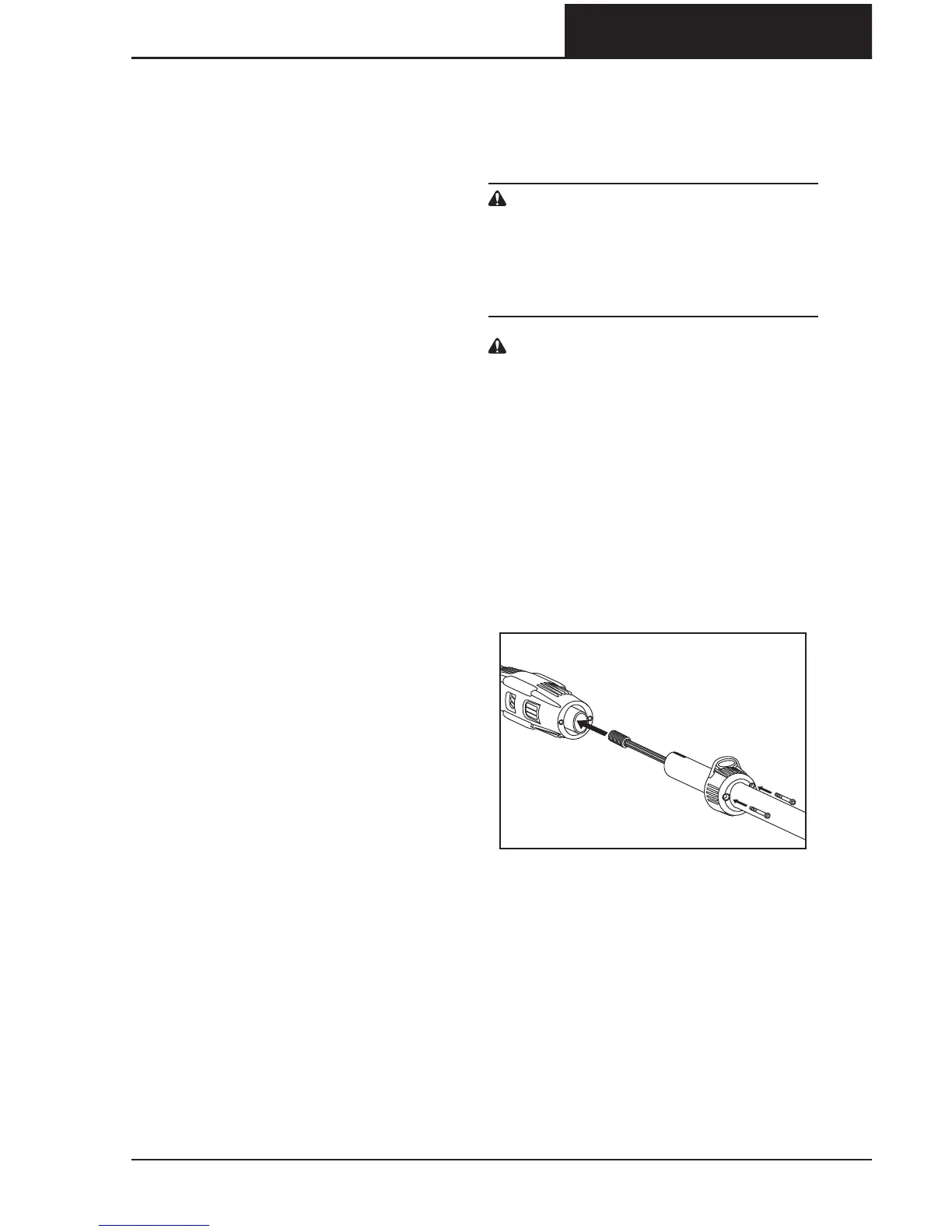

FIG. 6
