Oriental motor BLE2D30-C - Setting of parameters

Operation panel
37
2-3 Setting of parameters
Operation panel
Setting dial
Turn
clockwise
↓
Increase
Turn
counterclockwise
↓
Decrease
Press
↓
Set

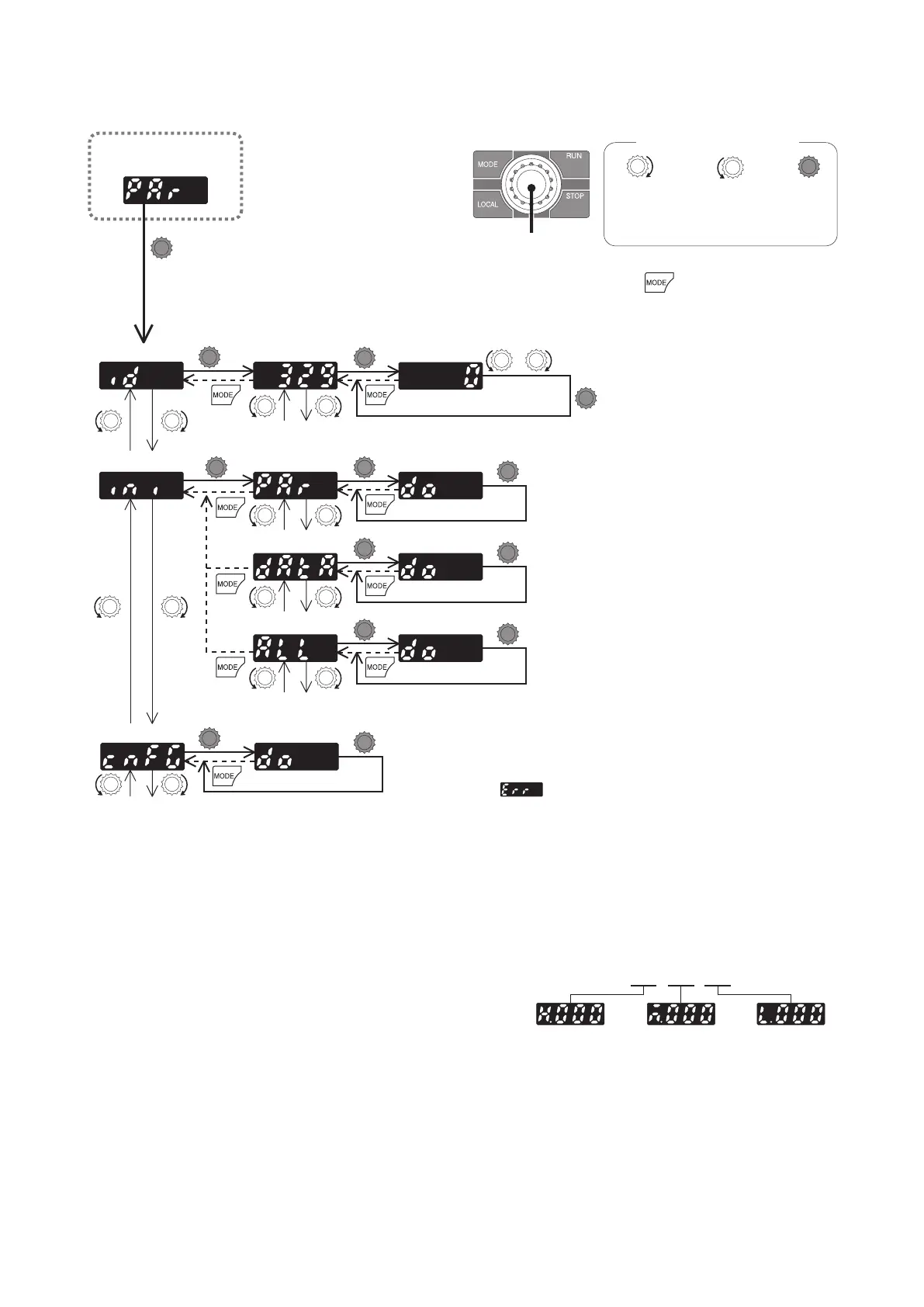

How to read the marks
Initialization∗1
Operation data∗1 Execute∗1
Parameter∗1 Execute∗1
All data∗1 Execute∗1
To parameter
To the next ID
To parameter ID
Parameter ID ID input
Conguration∗1
Execute∗1
Press
Press
Press
Press
Press
Press∗2
Press
Press
∗2
Press
Press
∗2
Press
∗1 "Initialization" "Conguration":
When operations are limited by the edit lock function,
you cannot execute since these screen are not displayed.
∗2 It cannot be performed while the motor is operated.
will be displayed.
Top screen of
parameter mode
Press
Press
Data setting
Press
Press
Press
Press
Press
Press
Press
Press
Press
In the lower level except the top screen,
press
to return to the previous level.

Parameter ID
There is a unique ID in each parameter. Input the ID and set.
Refer to p.40 for parameter ID. Refer to the USER MANUAL for details of parameters.
[Setting method of the parameter selecting a sign]
Selecting a sign after setting ID and pressing the setting dial will appear the data setting screen.
[Setting method of the parameter possible to set up to 9 digits]
The operation panel is 4-digit LED display. Input the setting value of
up to nine digits by dividing into an "upper," "middle," and "lower."
999 999 999
“Upper” (3-digits)
“Middle” (3-digits)
“Lower” (3-digits)
Input example: When inputting 999,999,999

Initialization
Initialization is used to restore the data stored in the driver to the factory setting. Any of the operating data only, parameter only
or all data can be selected, and the selected data can be restored to the factory setting.

Conguration
Executing Conguration can apply the parameters which timing to update is “C: Conguration” to the driver setting.
