Orion 20" User Manual

7
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310
pg7
INSTALLATION
1. DC 12V IN
2. RGB IN
3. CAMERA OUT
4. VIDEO 2 (AV2) IN
5. VIDEO 2 (AV2) OUT
6. AUDIO 1 IN
7. AUDIO 2 IN
8. S-VIDEO (Y/C) IN
9. S-VIDEO (Y/C) OUT
10. PC STEREO IN
RGB signal input.
Composite signal input for AV1
Composite signal for AV2
Stereo audio signal input. This input is for AV1, S-VIDEO
Stereo audio signal input. This output for AV2.
Y/C separated signal input
Y/C separated signal looping output.
Video looping output for AV1

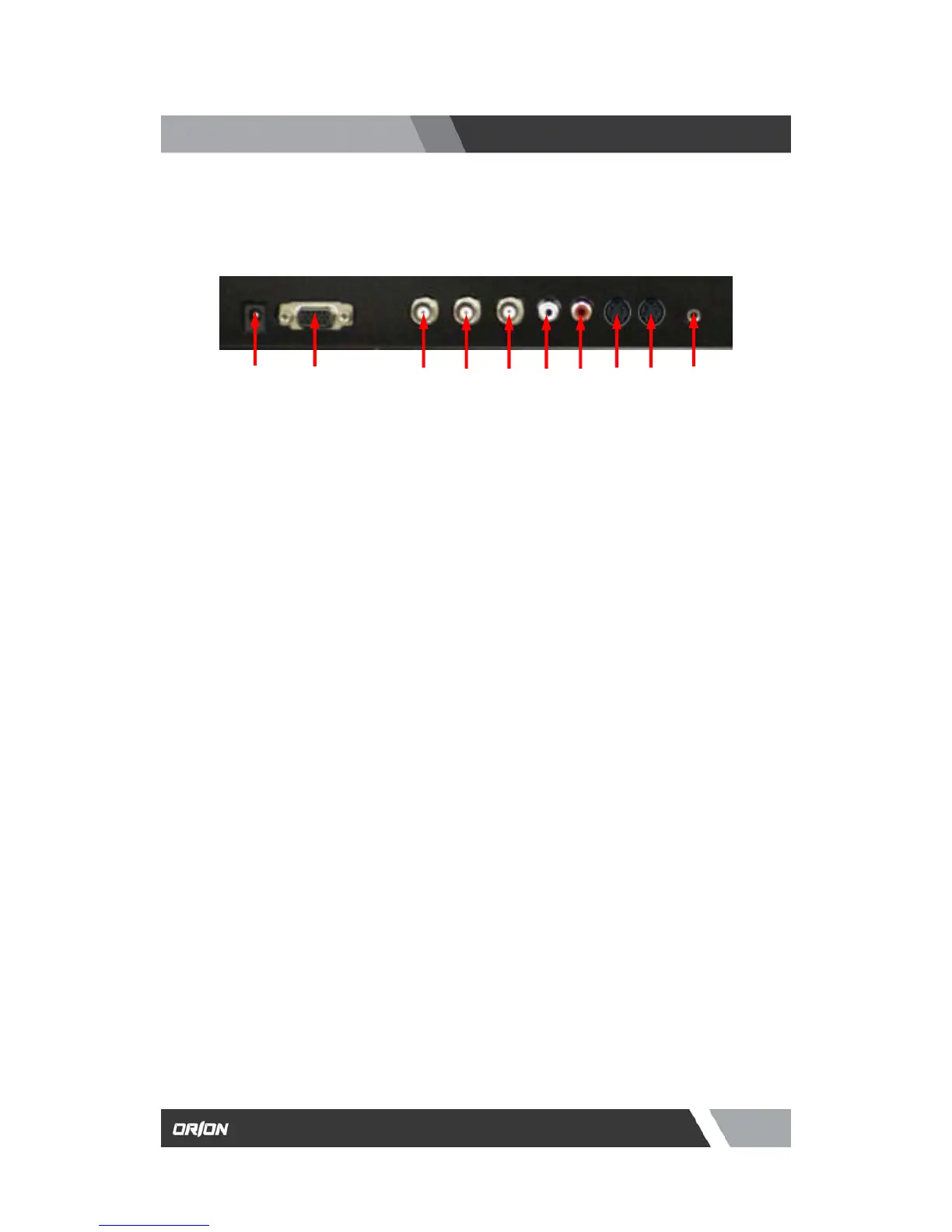

1.2 Connection (20 Inch PVMP)
1
2
3
4
5
6
7
8
9
10

Orion 20" Specifications

General

Screen Size	20 inches
Resolution	1600x900
Aspect Ratio	16:9
Panel Type	TN
Refresh Rate	60 Hz
Response Time	5ms
Brightness	250 cd/m²
Contrast Ratio	1000:1
Viewing Angle	170°/160°
Input Ports	VGA, DVI
Power Consumption	25W
