Orion 20" User Manual

8
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310
pg8

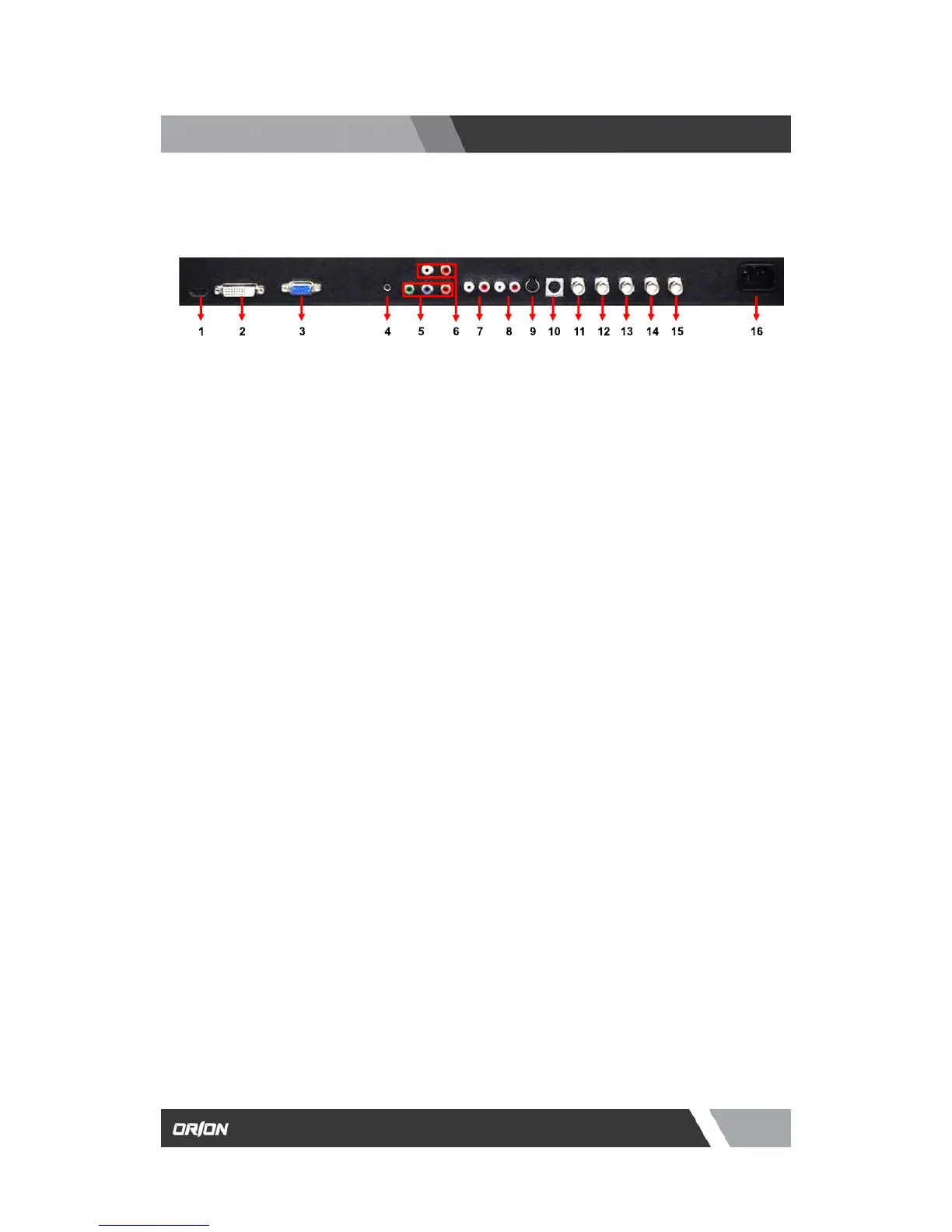

INSTALLATION
1. HDMI In
2. DVI IN
3. RGB IN
4. PC STEREO INPUT
5. COMPONENT IN
6. STEREO AUDIO IN
7. AUDIO 2 IN
8. AUDIO1 IN
9. S-VIDEO (Y/C) OUT
10. S-VIDEO (Y/C) IN
11. VIDEO2 OUT
12. VIDEO2 IN
13. VIDEO1 OUT
14. VIDEO1 IN
15. CAMERA OUT
16. AC INPUT
HDMI signal input
DVI-D signal input
RGB signal input
YPbPr signal input
Component stereo audio signal input
Stereo audio signal input. This output for VIDEO2.
Stereo audio signal input. This output for VIDEO1 and S-VIDEO.
Y/C separated signal looping output
Y/C separated signal input
Video looping output for VIDEO2
Composite signal input for VIDEO2
Video looping output for VIDEO1
Composite signal input for VIDEO1
1.3 Connection (26 & 32 Inch PVMP)

Orion 20" Specifications

General

Screen Size	20 inches
Resolution	1600x900
Aspect Ratio	16:9
Panel Type	TN
Refresh Rate	60 Hz
Response Time	5ms
Brightness	250 cd/m²
Contrast Ratio	1000:1
Viewing Angle	170°/160°
Input Ports	VGA, DVI
Power Consumption	25W
