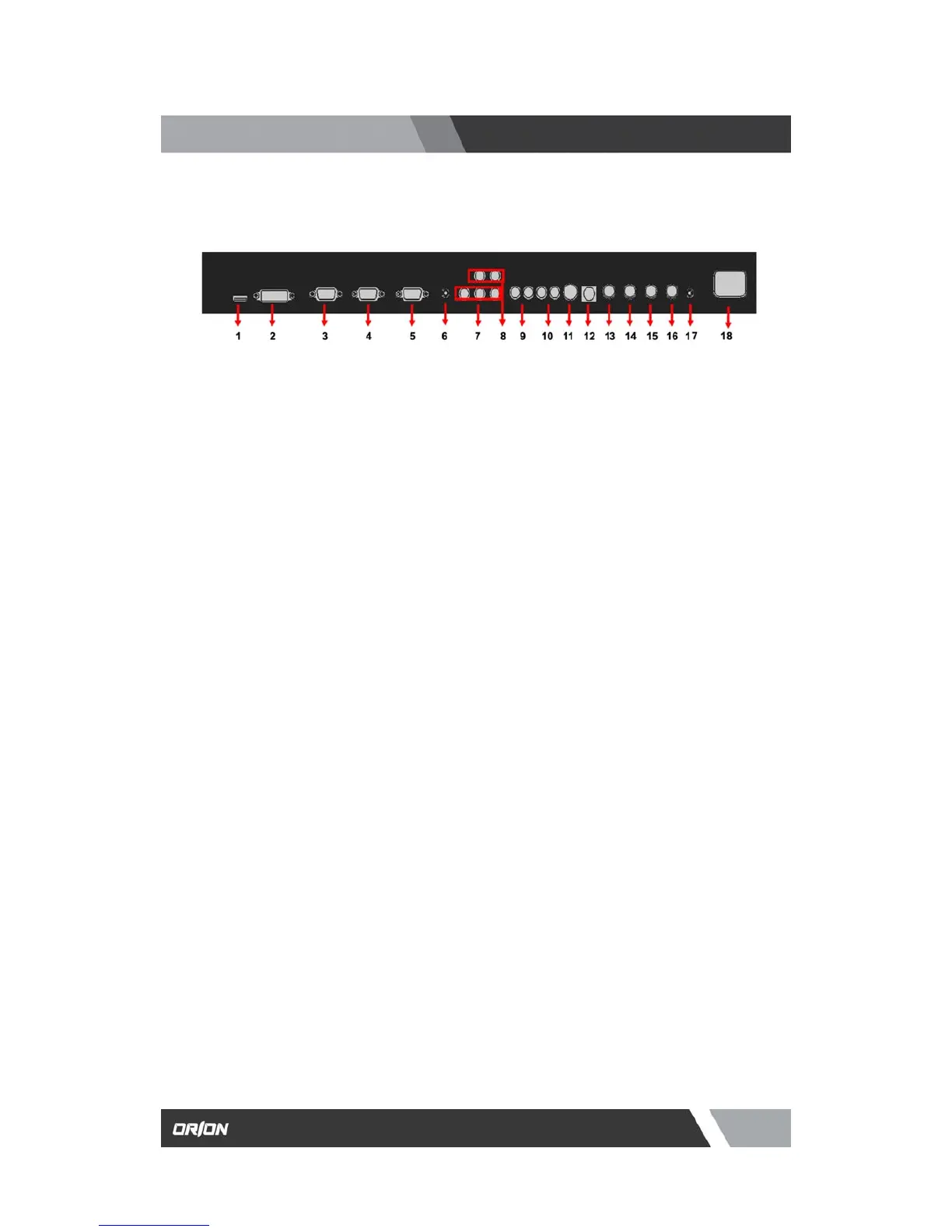

Orion 40” - Connection Ports

7
Installation and User’s Guide
htt
p
://www.orionima
g
es.com
7300 Bolsa Avenue, Westminster CA 92683 / Tel: 714-766-6300 / Fax: 714-766-6310
pg7
INSTALLATION
1. HDMI In
2. DVI IN
3. RGB IN
4. RS-232C MASTER
5. RS-232C SLAVER
6. PC STEREO INPUT
7. COMPONENT IN
8. STEREO AUDIO IN
9. AUDIO 2 IN
10. AUDIO1 IN
11. S-VIDEO (Y/C) OUT
12. S-VIDEO (Y/C) IN
13. VIDEO2 OUT
14. VIDEO2 IN
15. VIDEO1 OUT
16. VIDEO1 IN
17. TRIGGER
18. AC INPUT
HDMI signal input
DVI-D signal input
RGB signal input
YPbPr signal input
Component stereo audio signal input
Stereo audio signal input. This output for VIDEO2.
Stereo audio signal input. This output for VIDEO1 and S-VIDEO.
Y/C separated signal looping output
Y/C separated signal input
Video looping output for VIDEO2
Composite signal input for VIDEO2
Video looping output for VIDEO1
Composite signal input for VIDEO1
1.2 Connection
