Speaker Connections

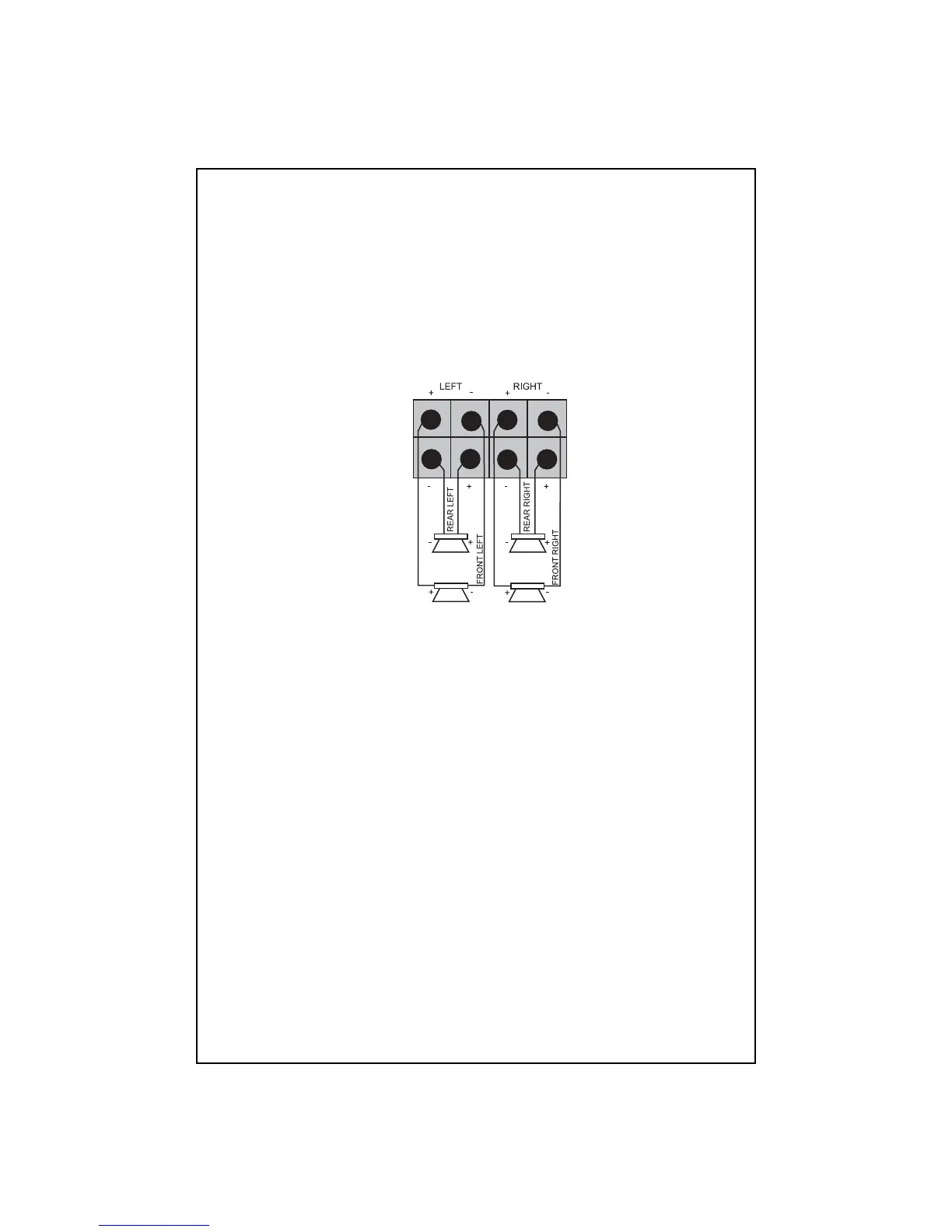

Four Channel Stereo Configuration
● Front and rear channel lowest recommended impedance is 2W stereo.
● Crossover mode, output, and gain configurations are independently adjustable
between the front and rear channels.
● Two-channel or four-channel input can be used for this configuration. For source
unit fading, use the four-channel input mode.
● Front and rear outputs can be configured for high-pass, low-pass, or full range
operation.
Three Channel Stereo/Bridged Configuration
● Front channels are configured for two-channel stereo operation.
● Front channel lowest recommended impedance is 2W stereo.
● Rear channels are configured for a single channel bridged output.
● Rear channel lowest recommended impedance is 4W.
● Crossover mode, output, and gain configurations are independently adjustable
between the front and rear channels.
● Two-channel or four-channel input can be used for this configuration. For source
unit fading, use the four-channel input mode.
● Front and rear outputs can be configured for high-pass, low-pass, or full range
operation.
● Rear outputs are configured for summed bridged operation for subwoofers.
8
©2004 Directed Electronics, Inc.
