● Two-channel or four-channel input can be used for this configuration. For source
unit fading, use the four-channel input mode.
● Front and rear outputs can be configured for high-pass, low-pass or full-range
operation.
● Rear outputs are configured for summed bridged operation for subwoofer appli-
cations.
● Only the rear speaker is controlled when using the RGC-1.

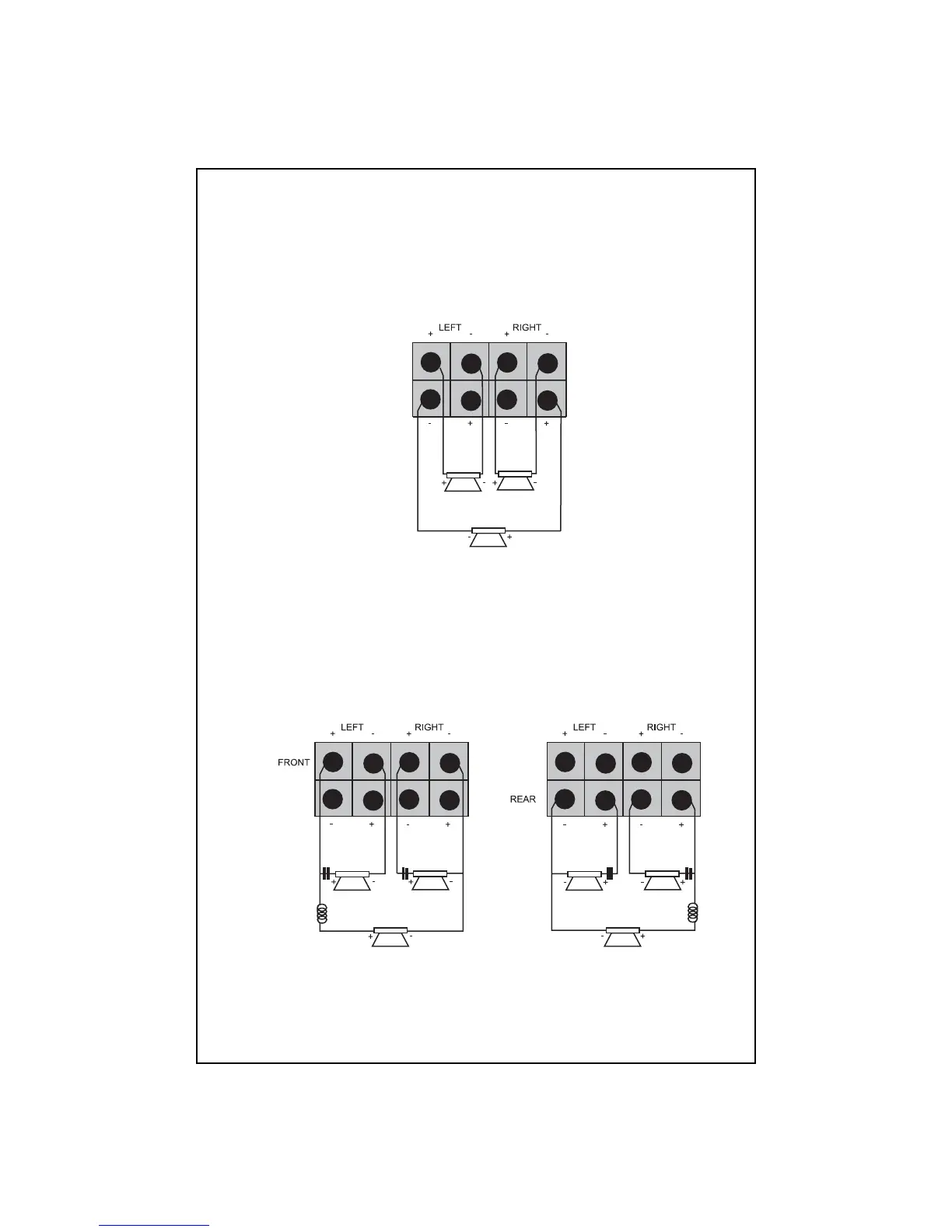

Tri-Mode Six Channel Configuration
● Lowest recommended impedance is 2W stereo and 4W bridged mono.
● Front and rear outputs must be set for full range operation.
● Passive crossovers must be used on all components and frequencies must not overlap.
● Only the rear speaker is controlled when using the RGC-1.
WARNING! Failure to observe these requirements may result in damage to the amplifier.
10
©2004 Directed Electronics, Inc.
