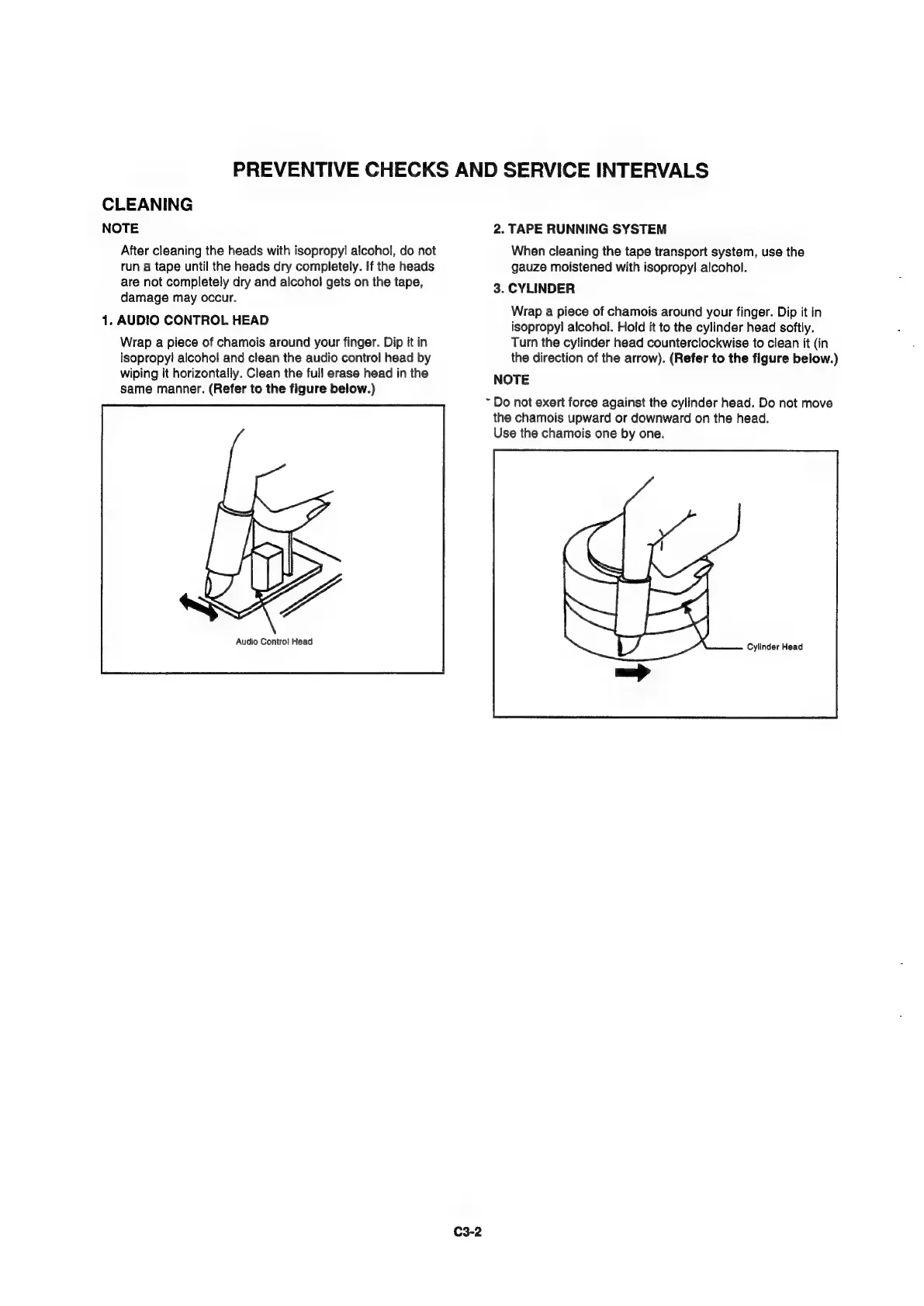

PREVENTIVE

CHECKS

AND

SERVICE

INTERVALS

CLEANING

NOTE

After

cleaning

the

heads

with

isopropyl

alcohol,

do

not

run

a

tape

until

the

heads

dry

completely.

If

the

heads

are

not

completely

dry

and

alcohol

gets

on

the

tape,

damage

may

occur.

1.

AUDIO

CONTROL

HEAD

Wrap

a

piece

of

chamois

around

your

finger.

Dip

it

in

isopropyl

alcohol

and

clean

the

audio

control

head

by

wiping

it

horizontally.

Clean

the

full

erase

head

in

the

same

manner.

(Refer

to

the

figure

below.)

Audio

Control

Head

C3-2

2.

TAPE

RUNNING

SYSTEM

When

cleaning

the

tape

transport

system,

use

the

gauze

moistened

with

isopropyl

alcohol.

3.

CYLINDER

Wrap

a

piece

of

chamois

around

your

finger.

Dip

it

in

isopropyl

alcohol.

Hold

it

to

the

cylinder

head

softly.

Turn

the

cylinder

head

counterclockwise

to

clean

it

(in

the

direction

of

the

arrow).

(Refer

to

the

figure

below.)

NOTE

~

Do

not

exert

force

against

the

cylinder

head.

Do

not

move

the

chamois

upward

or

downward

on

the

head.

Use

the

chamois

one

by

one.

Cylinder

Head
