Orion COMBI 3601VT - Page 5

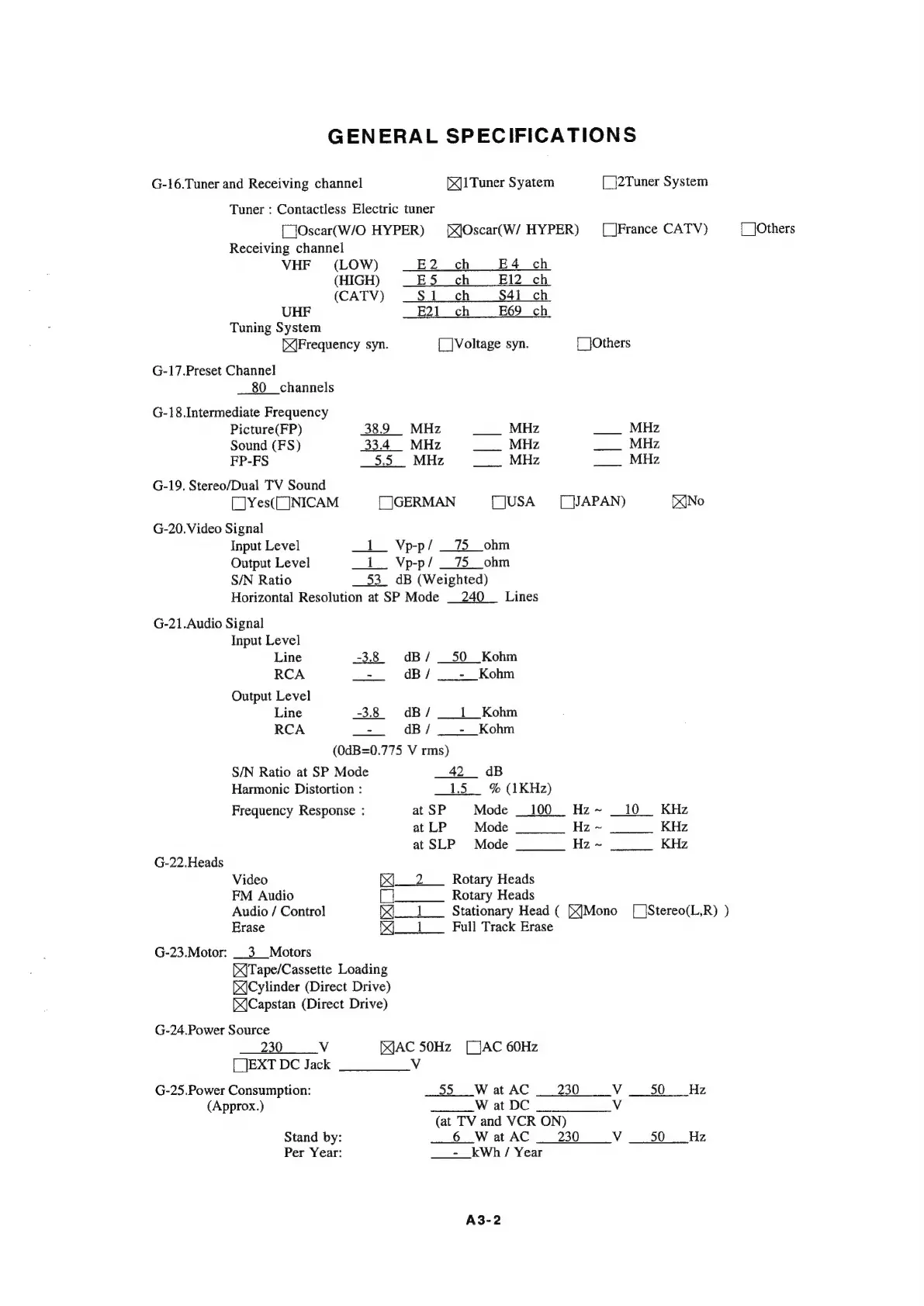

GENERAL SPECIFICATIONS
G-16.Tuner
and
Receiving
channel
<j1Tuner
Syatem
[|
|2Tuner
System
Tuner : Contactless Electric tuner
[ jOscar(W/O HYPER)
Receiving channel
lOscar(W/ HYPER) _[_|France CATV)
[ ]Others
VHF (LOW) E2 ch E4 ch
(HIGH) E5 ch El2_ ch
(CATV) $1. ch S41 ch
UHF E21 ch E69_ch
Tuning System
Ix|Frequency syn. [_]Voltage syn. [ |Others
G-17.Preset Channel
80__channels
G-18.Intermediate Frequency
Picture(FP) 38.9 MHz MHz MHz
Sound (FS) 33.4. MHz MHz MHz
FP-FS 5.5. MHz MHz MHz
G-19, Stereo/Dual TV Sound
L]Yes((_JNICAM [_]JGERMAN {JUSA [_JAPAN) &x<JNo
G-20. Video Signal
Input Level 1 ~Vp-p/ _75 ohm
Output Level 1 Vp-p/ _75 ohm
S/N Ratio 53_ dB (Weighted)
Horizontal Resolution at SP Mode __240_ Lines
G-21.Audio Signal
Input Level
Line 3.8. dB/ _50 Kohm
RCA - dB / -_Kohm
Output Level
Line 3.8 <dB/ 1_ Kohm
RCA - dB / - Kohm
(OdB=0.775 V rms)
S/N Ratio at SP Mode 42 ~dB
Harmonic Distortion : 15. % (1KHz)
Frequency Response : at SP Mode _100 Hz~ _10 KHz
at LP Mode Hz ~ KHz
at SLP Mode Hz ~ KHz
G-22.Heads
Video <2 Rotary Heads
FM Audio i Rotary Heads
Audio / Control x1 Stationary Head ( x|Mono_ [_|Stereo(L,R) }
Erase x1 Full Track Erase
G-23.Motor: __3__ Motors
xiTape/Cassette Loading
[x|Cylinder (Direct Drive)
[>x]Capstan (Direct Drive)
G-24.Power Source
230 Vv XJAC 50Hz [JAC 60Hz
[ JEXT DC Jack Vv
G-25.Power Consumption: 55___W at AC 230 Vv 50 Hz
(Approx.) W at DC Vv
(at TV and VCR ON)
Stand by: 6 Wat AC 230 Vv 50 Hz
Per Year: - kWh / Year
A3-2
