Insta-Cut Screen
This is the Insta-Cut screen. This screen is only used for machine equipped with Insta-Cut.
You may enable or disable Insta-Cut or adjust any of the Insta-Cut parameters.

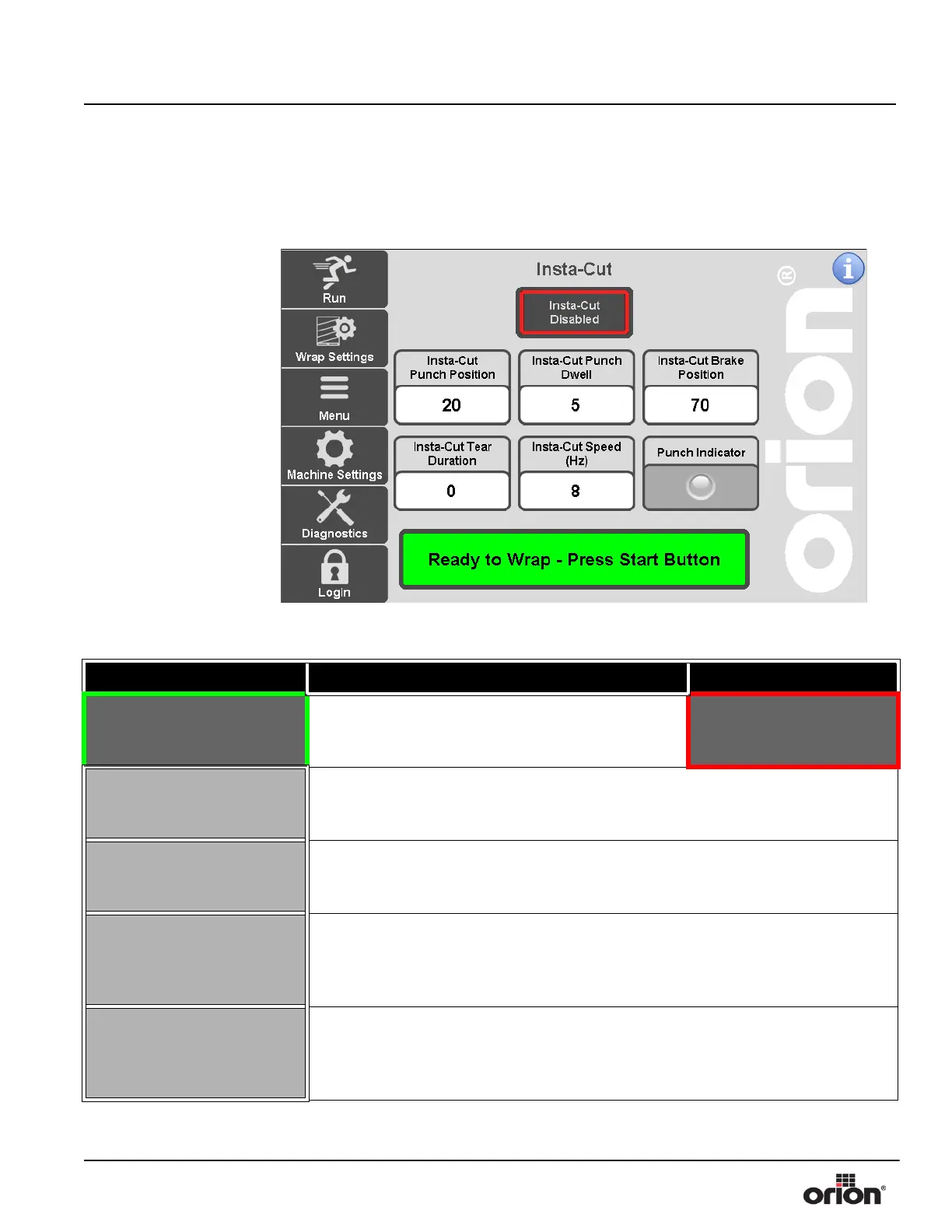

Figure 3 - 23
The Insta-Cut Screen
Table 3-22. The Insta-Cut Screen Button Descriptions
STATE 1 DESCRIPTION STATE 2
INSTA- CUT ENABLED
Press this button to toggle between Insta-Cut On or
Insta-Cut Off. This allows the operator to disable the
Insta-Cut function.
INSTA-CUT DISABLED
INSTA-CUT PUNCH
POSITION
Press this button to modify the Insta-Cut Punch Position. This is the tooth count
position at which the Insta-Cut puncher activates to punch a hole in the film. Min -
20 Max - 96 or 112, depending on sprocket selection.
INSTA-CUT PUNCH
DWELL
Press this button to modify the Insta-Cut Punch Dwell. This is the amount of teeth
that the Insta-Cut puncher will stay activated to create a hole in the film. Min - 2
Max - 15
INSTA-CUT BRAKE
POSITION
Press this button to modify the Insta-Cut Brake Position. This is the tooth count
position at which the Multistretch will stop paying out film, which causes the film
to tear. Min - (Insta-Cut Punch Position + Insta-Cut Punch Dwell) Max - 96 or 112,
depending on sprocket selection.
INSTA-CUT TEAR
DURATION
Press this button to modify the Insta-Cut Tear Duration. This is the amount of teeth
that the Main Drive will continue to travel at the predefined Insta-Cut Speed before
slowing down to Jog Speed and stopping at home. Min - 0 Max - 96 or 112, depend-
ing on sprocket selection.
