© 2009 Directed Electronics. All rights reserved. 12
3PEAKER#ONNECTIONS(##!
The Orion HCCA10002 amplifier offer one positive and one negative
output terminal for ease of connecting channel 1(L CH) and/or 2(R CH)
outputs to the speakers. The amplifier is stable to 2Ω per channel. See
diagrams below.

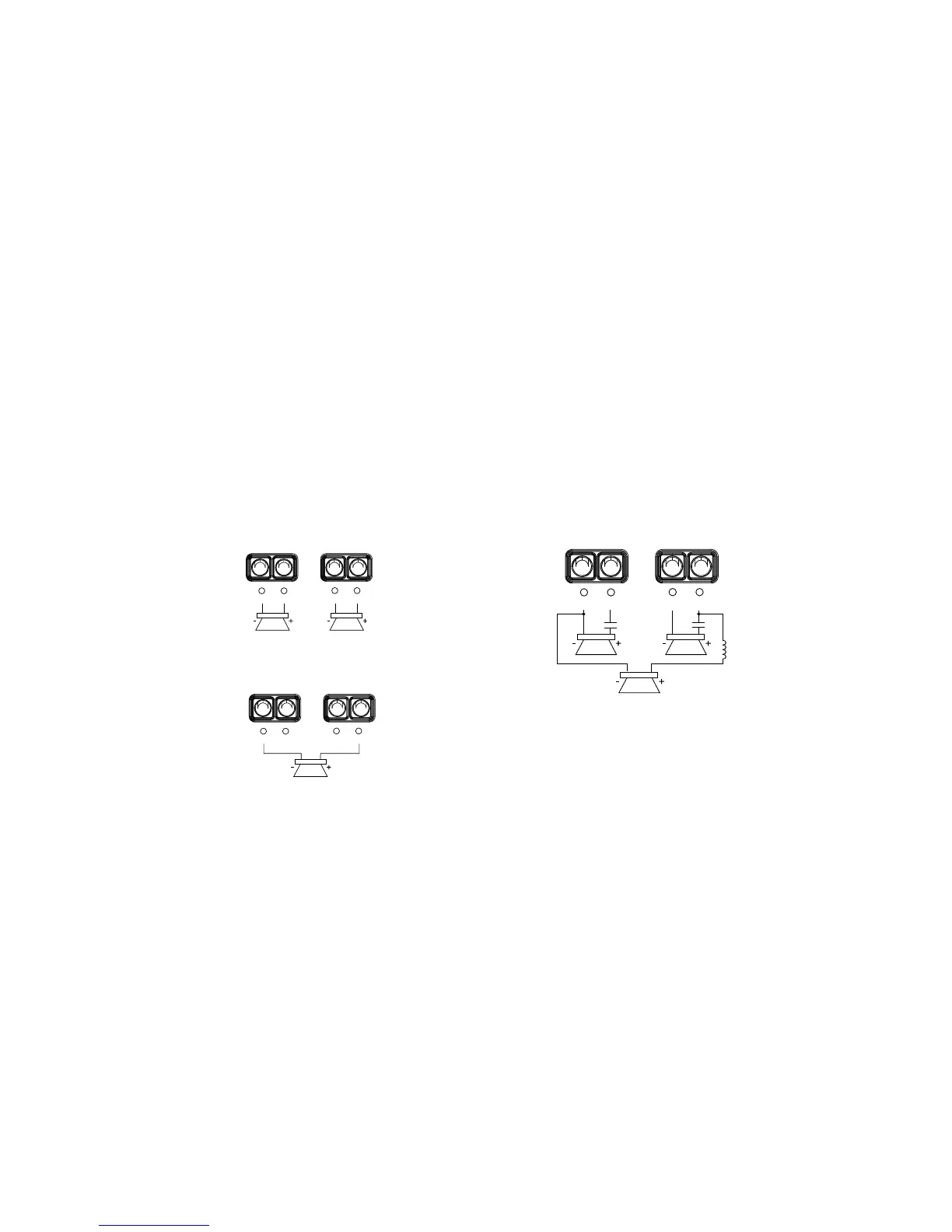

One Channel/Two Channel Configuration
Lowest recommended impedance is 2s Ω stereo.
Outputs can be configured for high-pass, low-pass, or full range s
operation.
Figure 14
Figura 14
Abbildung 14
L CH
+
_
+
_
R CH
Bridge Configuration
Bridging allows one speaker to be driven at a higher power level from
the amplifier.
The bridged outputs lowest recommended impedance is 4s Ω.
Figure 15
Figura 15
Abbildung 15
L CH
+
_
+
_
R CH
Three Channel (L Channel, R Channel, Bridged)
Left and Right are configured for two-channel stereo operation.s
Lowest recommended impedance is 2s Ω stereo.
The third output is configured for a single channel bridged out-s
put.
The bridged outputs lowest recommended impedance is 4s Ω.
Outputs are configured for high-pass, low-pass, or full range s
operation.
Figure 16
Figura 16
Abbildung 16
L CH
+
_
+
_
R CH
NOTE:To get full output in this configuration, band limiting filters as
shown in this diagram may need to be used to prevent the impedance
from dropping too low and engaging protection circuits.
