Orion XTR Power Amplifier XTR10001 - Sealed Example High-Pass Set at 20 Hz

© 2008 Directed Electronics. All rights reserved. 7
Figure 3
Figura 3
Abbildung 3
Figure 4
Figura 4
Abbildung 4

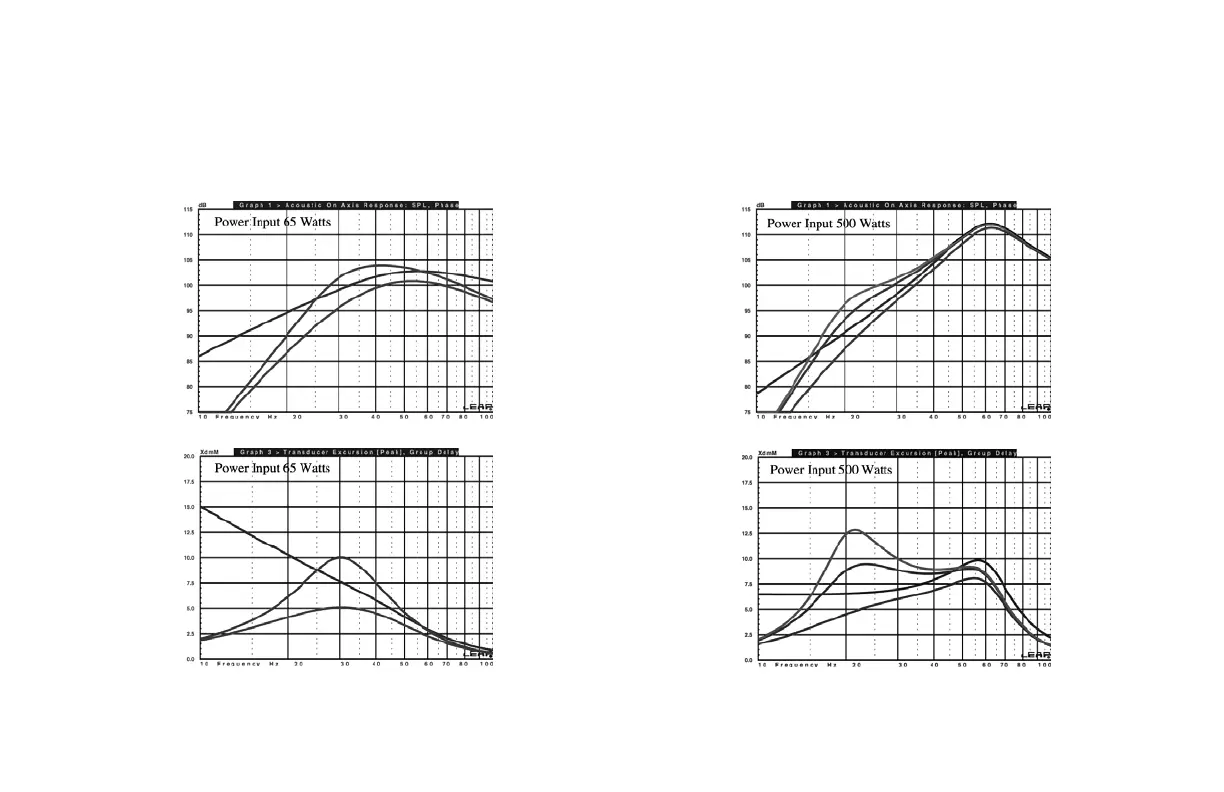

NOTE: The first graph is the response; the second graph is the driver
excursion. These designations apply to the following graphs as well.
Sealed Example High-Pass Set at 20Hz
This sealed example is the same 12-inch woofer in the recommended
sealed enclosure. Up to 6 dB of boost is capable if 20 Hz was used.
With +6dB of boost, the woofer has more output down to 15 Hz.
