3.2 Floor Protection
t is necessary to have a floor protection made of non-combustible materials that meets the
measurements specified in the "Table 1 : Floor Protection" below.

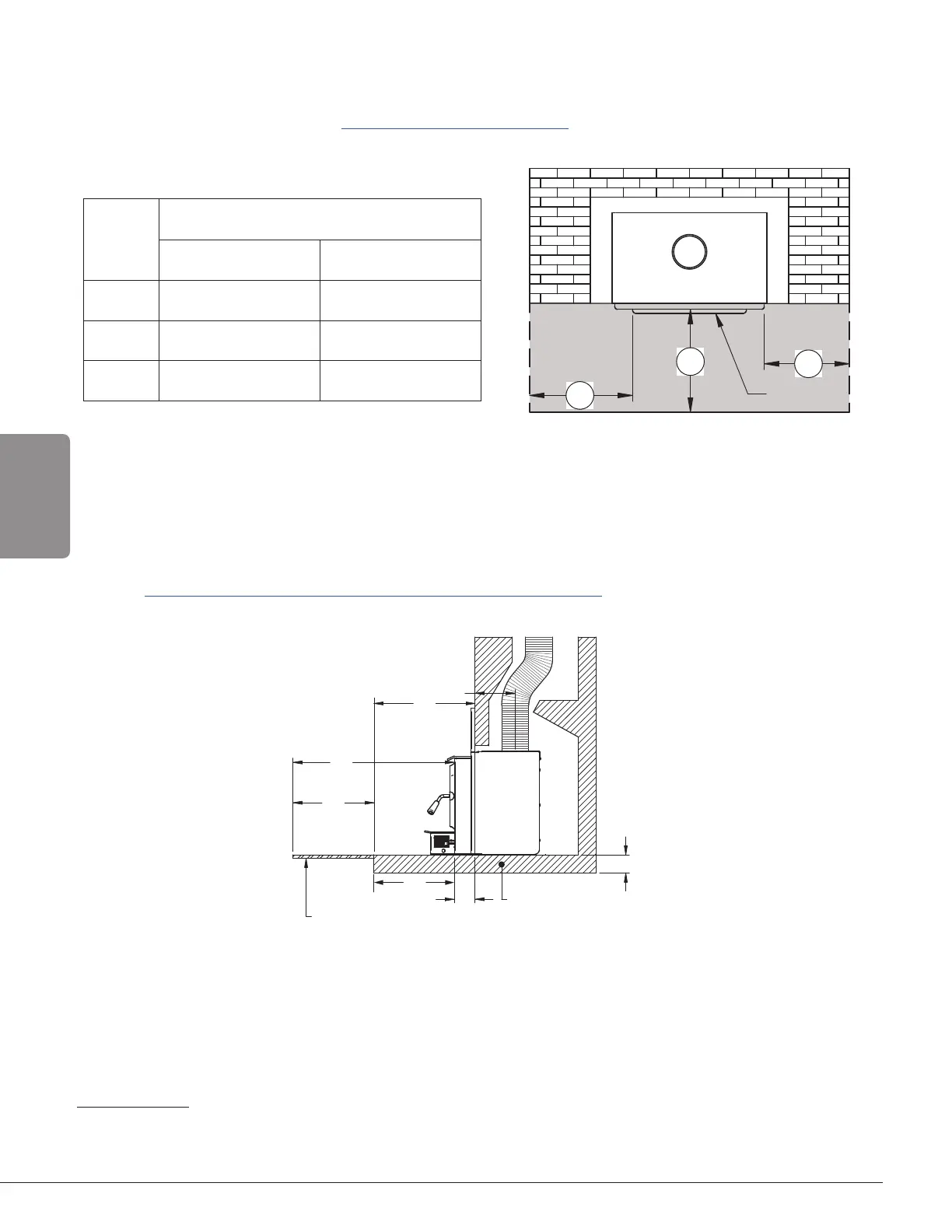

Table 1 : Floor Protection
FLOOR PROTECTION
Canada USA
B
1
18" (457 mm) 16" (406 mm)
M 8" (203 mm) N/A
N N/A 8" (203 mm)
N
M
B
DOOR
Floor Protection
3.2.1 Installation Raised of 4" (102 mm) and Less
If non-combustible material floor protection needs to be added in front of and level with the
hearth extension of the masonry fireplace (F = 4" (102 mm) or less), an R-value equal to or
greater than 1.00 is required and should extend at least 22" (559 mm) in front of the unit (B).
Refer to "Additional Floor Protection - Not Raised Installation"
HEARTH SLAB:
NON-COMBUSTIBLE MATERIAL
FLOOR PROTECTOR:
NON-COMBUSTIBLE MATERIAL
B
C
D
E
F
A
G
Additional Floor Protection - Not Raised Installation
1
From door opening. The depth of the hearth extension in front of the insert is included in the calculation of the oor protector’s dimensions. The
masonry hearth should be at least 5" (127 mm) higher than the combustible oor in front of it and a oor protection must extend at least 16"
(406 mm USA) and at least 18" (457 mm Canada) without an R value. If the hearth elevation is lower than 5" (127 mm), the non-combustible (B)
oor protection in front of the insert should have an R value equal or greater than 1.00 and shall extend 23" (584 mm) in front of the unit.
