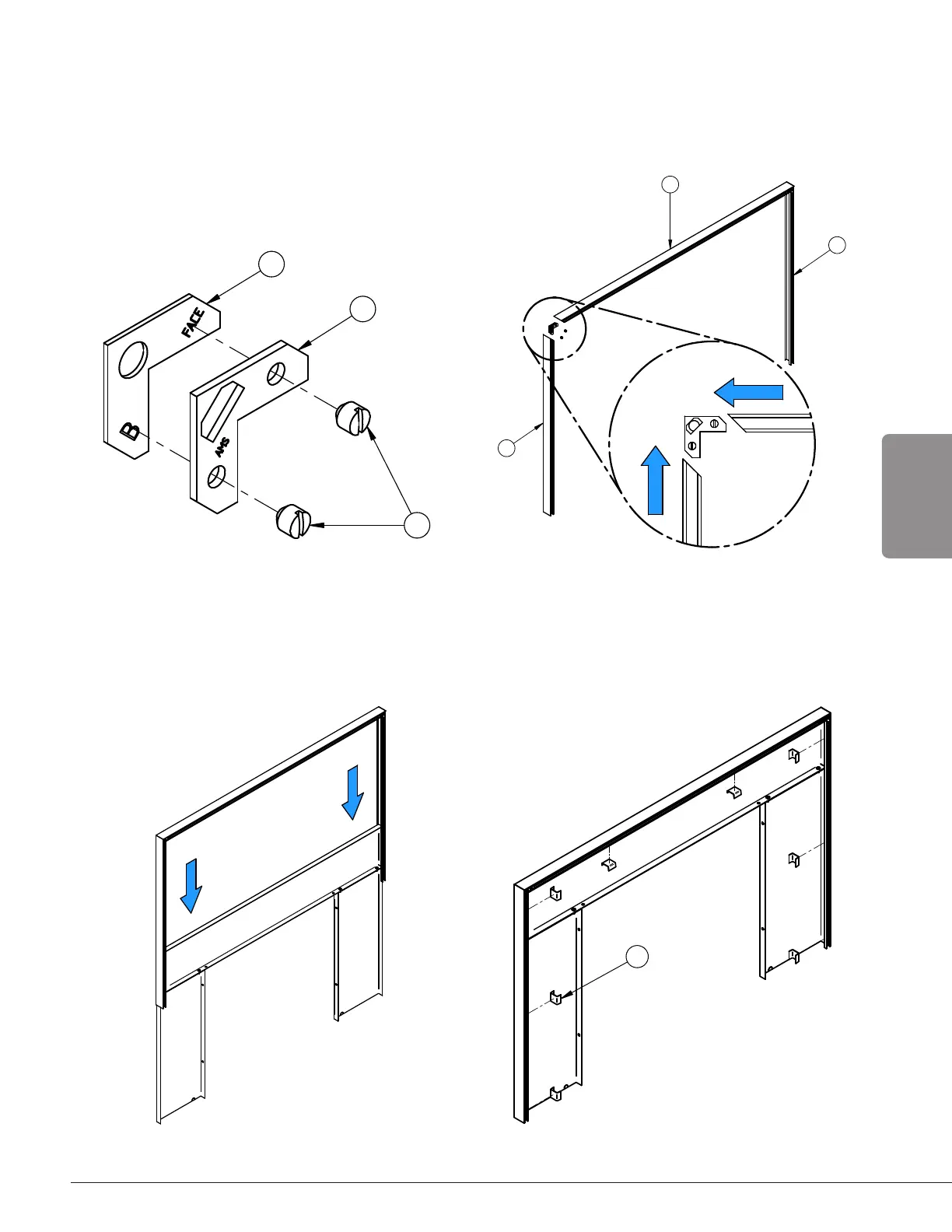

3. Partially thread the screws (S) on the trim’s
corner bracket (R) then superimpose the
corner brackets (R) and (Q) as shown.
4. Insert the superimposed brackets in the
groove of each decorative trim (T), (U) and
(V). Align the corners of the angled side of
each trim, and then tighten the screws (S)
to secure the trims.
Q
R
S
B
T
U
V
DETAIL B
5. Align the trim assembly with the left and
right edge of the faceplate and slowly slide it
down over the faceplate.
6. Secure the trim to the faceplate by
squeezing the eight trim retainers (W)
between the inner edge of the trim and the
front of the faceplate.
W
