OSD Audio SMP100 User Manual

Stereo Amplifier or other
Line Level Input IIustration
to SMP100 Line IN
SMP100 Subwoofer Amp
SMP100 Sub OUT
stereo amplifier. You can also use the Sub OUT, LFE OUT or L&R Line Level OUT on just

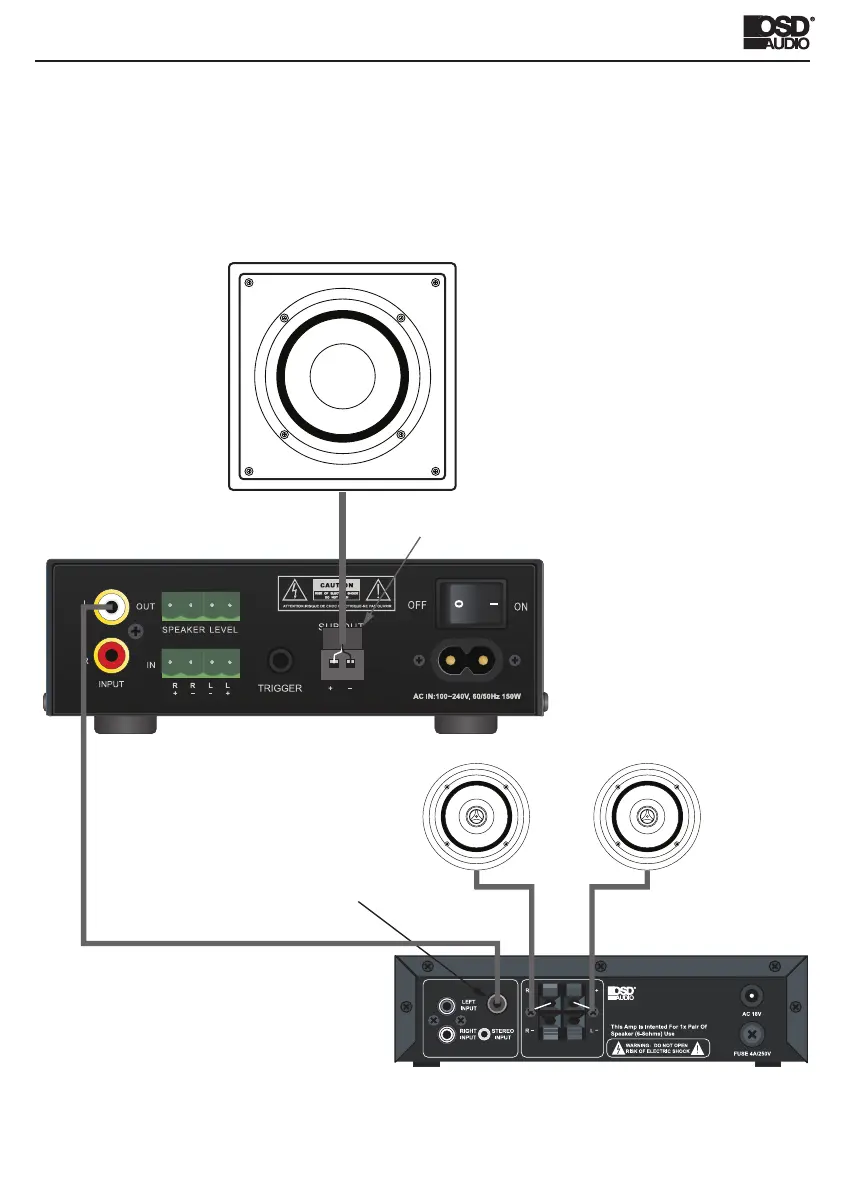

shows the SMP100 connected to the Sub OUT on a
All connections are conveniently placed on the rear panel for sane wire management,
convenient connections and simple service.
The Line Level Input Illustration
about any appropriately featured audio device.
SUB OUT
amp/
r
eceiver with a subwoofer out
In Ceiling Speakers
Mono RCA-RCA Patch Cable
Amp or Receiver
Sub OUT
6”or 8”
Subwoofer
To Subwoofer
CONNECTION

OSD Audio SMP100 Specifications

Audio

RMS output power	80W/8Ω; 100W/4Ω
THD	1%
Frequency response	20Hz-160Hz +/-1dB
Signal to noise	95dB
Input sensitivity	200mV
Crossover	40-160Hz
Phase	0-180°

General

Trigger input	+12VDC to +24VDC
Line voltage range	110-120/220-240 VAC
Standby power	1.8W

Weight and Dimensions

Dimensions	5.6”W x 1.8”H x 4.75” D (143mm W x 45mm H x 120mm D)
Overall length	5.9” (150mm)
Weight	1.75lbs (0.79kg)
