OSD Audio SMP100 User Manual

Do Not Remove the feet and always mount horizontally. Mounting vertically will not allow
proper airflow which may cause damage to the Amplifier. Improper placement is not covered
under warranty.
circulate through the chassis allowing optimum performance.
Even though the SMP100 will typically run cool, the top and bottom vents allow air to
allow adequate space for airflow. Do not set objects on top of the amp.

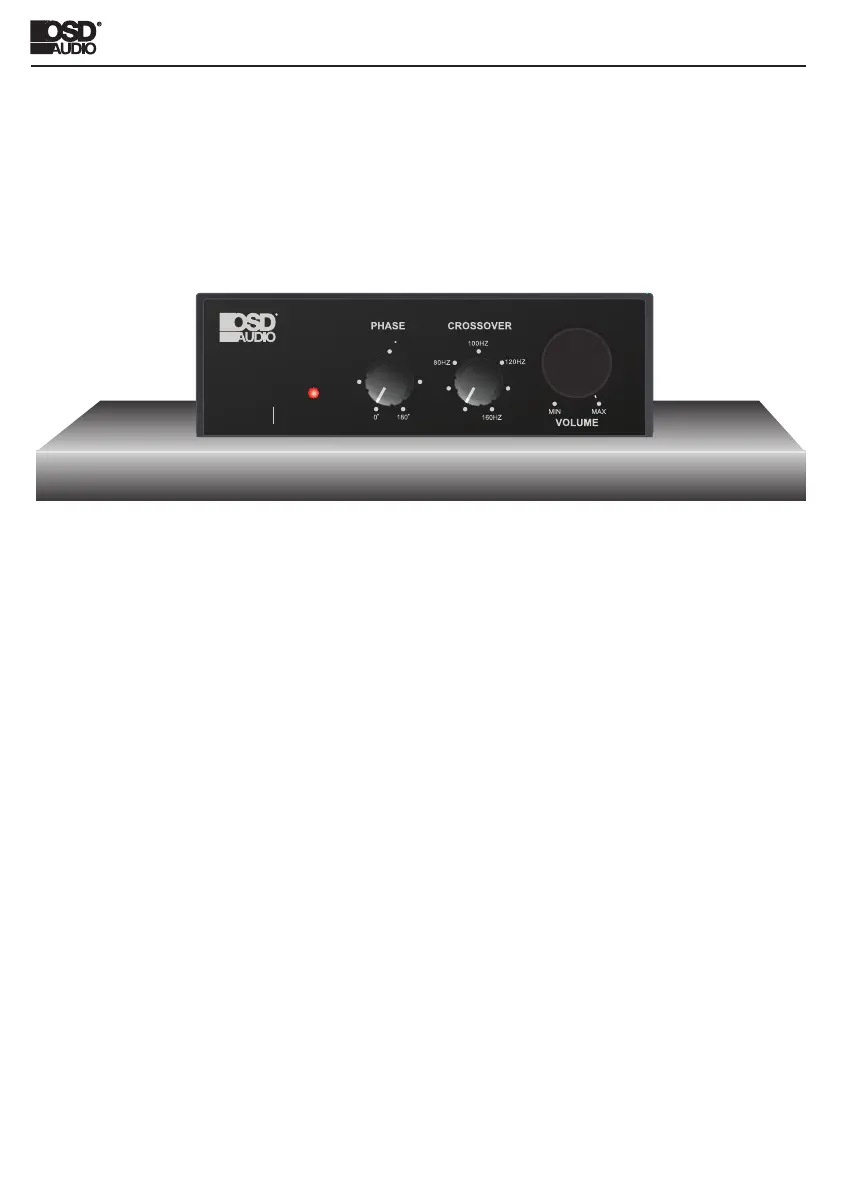

The SMP100 can be conveniently mounted on a shelf top as shown. Leave room for wires.
SHELF MOUNT
VENTILATION
Please be sure to not block the vents with wires or other objects that will block the free flow of
air through the amp.
INSTALLATION
90
35HZ
DIGITAL SUBWOOFER
A M PLIFIE R
SMP100

OSD Audio SMP100 Specifications

Audio

RMS output power	80W/8Ω; 100W/4Ω
THD	1%
Frequency response	20Hz-160Hz +/-1dB
Signal to noise	95dB
Input sensitivity	200mV
Crossover	40-160Hz
Phase	0-180°

General

Trigger input	+12VDC to +24VDC
Line voltage range	110-120/220-240 VAC
Standby power	1.8W

Weight and Dimensions

Dimensions	5.6”W x 1.8”H x 4.75” D (143mm W x 45mm H x 120mm D)
Overall length	5.9” (150mm)
Weight	1.75lbs (0.79kg)
