OSD Audio SMP100 User Manual

to SMP100 Speaker IN
SMP100 Subwoofer Amp
SMP100 Sub OUT to
to In Ceiling Speakers
SMP100 Speaker OUT
the SMP100 and Phase settings before getting amplified to the level set by the SMP100
through to the connected stereo speakers at full bandwidth. The signal also gets processed by
The amplified signal from the distribution amp connects to the SMP100 and gets passed
effective and powerful solution to adding subwoofers to multi-room audio applications.
out on a multi-channel audio distribution amplifier. This configuration provides a simple, cost-

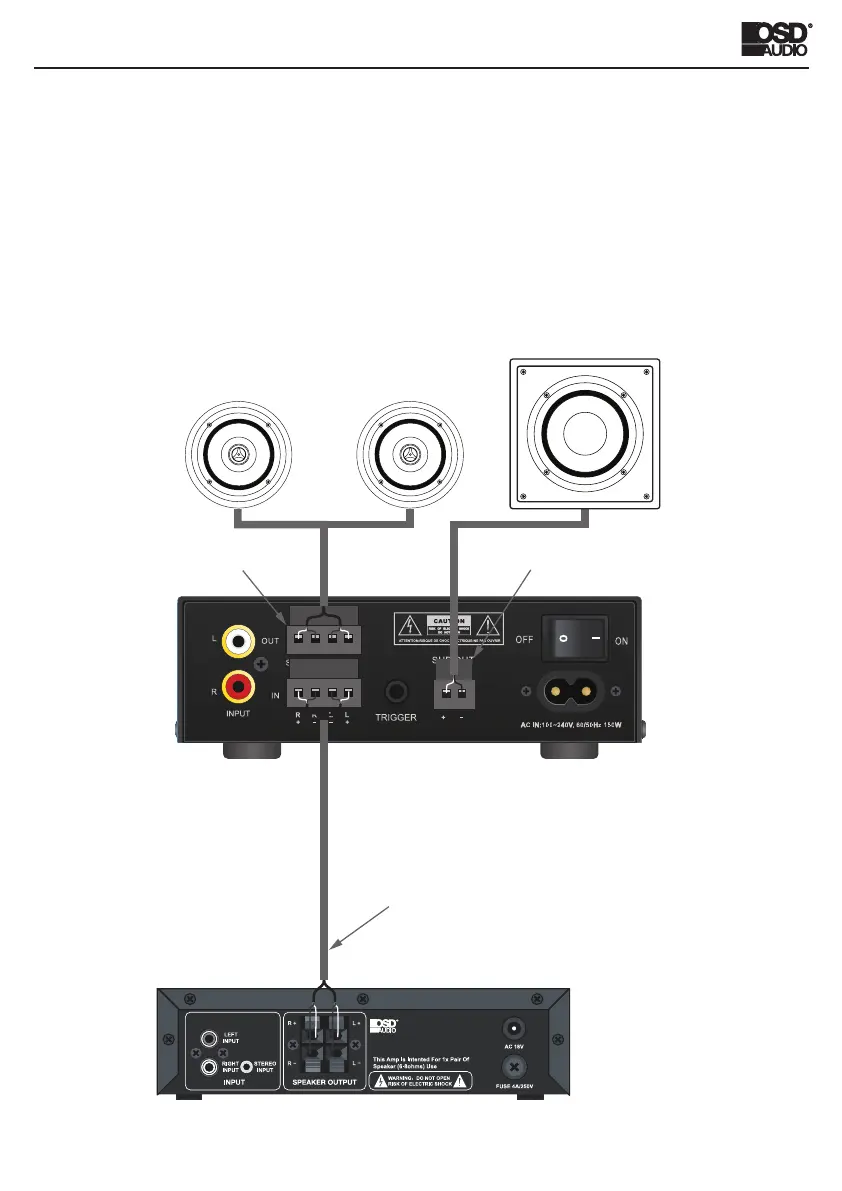

shows the SMP100 connected to the Speaker Level The Speaker Level Input Illustration
Volume Control. Once set, the volume control for the distribution amp zone will act as a
master volume control for both the stereo speakers and sub.
Audio Amp/Receiver
With No Subwoofer OUT
In Ceiling Speakers
Amp or Receiver
Speaker OUT
6”or 8”
Subwoofer
Subwoofer
Speaker Level Input Illustration
CONNECTION

OSD Audio SMP100 Specifications

Audio

RMS output power	80W/8Ω; 100W/4Ω
THD	1%
Frequency response	20Hz-160Hz +/-1dB
Signal to noise	95dB
Input sensitivity	200mV
Crossover	40-160Hz
Phase	0-180°

General

Trigger input	+12VDC to +24VDC
Line voltage range	110-120/220-240 VAC
Standby power	1.8W

Weight and Dimensions

Dimensions	5.6”W x 1.8”H x 4.75” D (143mm W x 45mm H x 120mm D)
Overall length	5.9” (150mm)
Weight	1.75lbs (0.79kg)
