OSD Audio SMP200 User Manual

Adjusts the SMP200 audio output level to the connected subwoofer. Set to an
SMP200 Sub OUT.
AC power and turned ON.
One, green LED. Green LED illuminates when the SMP200 is connected to 1. POWER LED -
2. PHASE - The Phase setting allows compensation for subwoofer location relative to the
main speakers. Adjust the Phase setting to the point of highest sub audio output.
RANGE: 0º to 180 º.
3. CROSSOVER - The Crossover sets the frequency at which audio content will pass to the
RANGE: 35Hz to 160Hz.
4. VOL
90
35HZ
DIGITAL SUBWOOFER
A M PLIFIER
SMP200
UME -
appropriate level for a smooth, natural sounding transition to extend and enhance the low
frequency output of the full-range speakers connected to Speaker Level OUT.

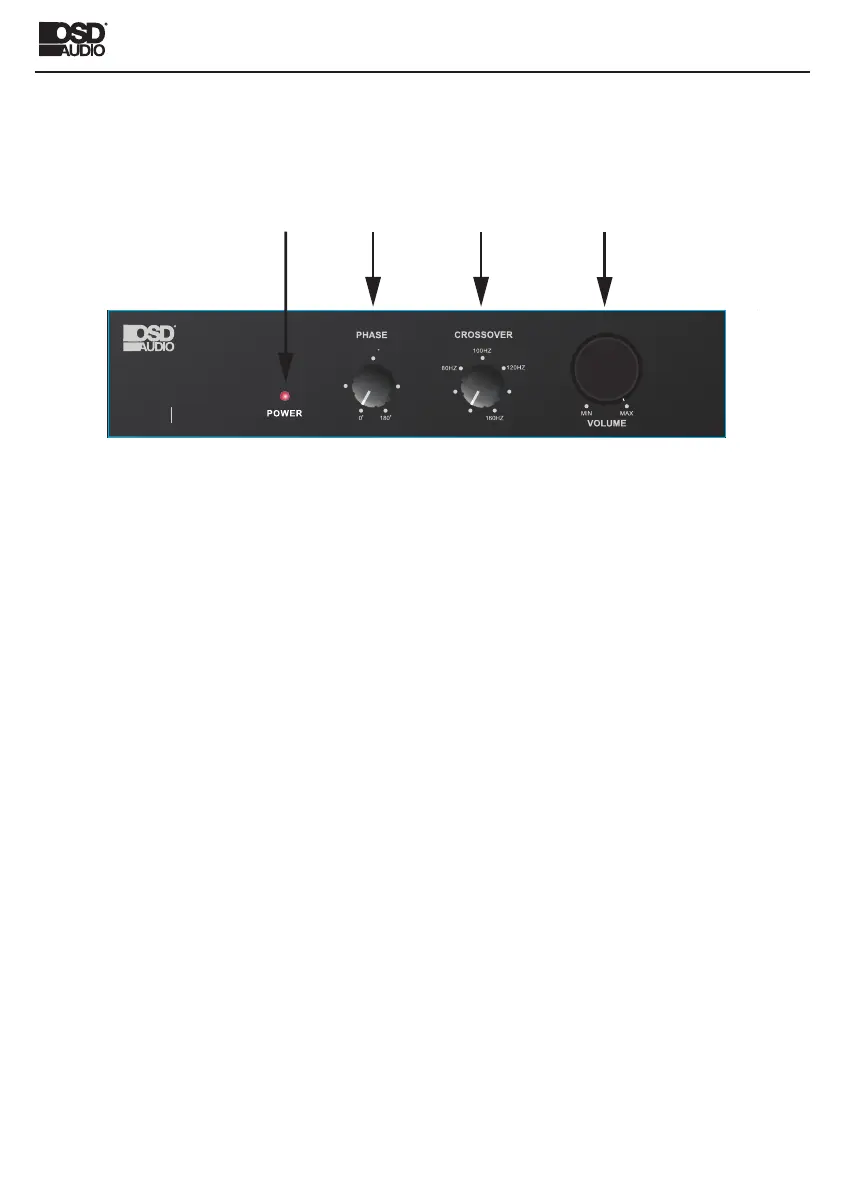

Front Panel Features
2 3 41
FRONT PANEL

OSD Audio SMP200 Specifications

Audio Specifications

maximum output power	120W/8Ω; 200W/4Ω
total harmonic distortion (THD)	1%
frequency response	20Hz-160Hz +/-1dB
signal to noise ratio	95dB
input sensitivity	200mV
crossover frequency	35-160Hz
phase adjustment	0-180°

General Specifications

trigger input voltage	+12VDC to +24VDC
line voltage range	110-120/220-240 VAC
standby power consumption	1.8W

Weight and Dimensions

dimensions (W x H x D)	8.5” x 1.75” x 9.8” (214mm x 250mm x 44mm)
overall length (including knobs/connectors)	10.7” (272mm)
weight	2.9 lbs (1.32 kg)
