OSD Audio SMP200 User Manual

not covered under warranty.
against a wall will not allow adequate airflow which may cause damage to the amplifier that is
Do not remove the feet, and always shelf mount the SMP200 mounting the amp vertically
circulate through the chassis allowing optimum performance.
Even though the SMP200 will typically run cool, the top and bottom vents allow air to
allow adequate space for airflow. Do not set objects on top of the amp.

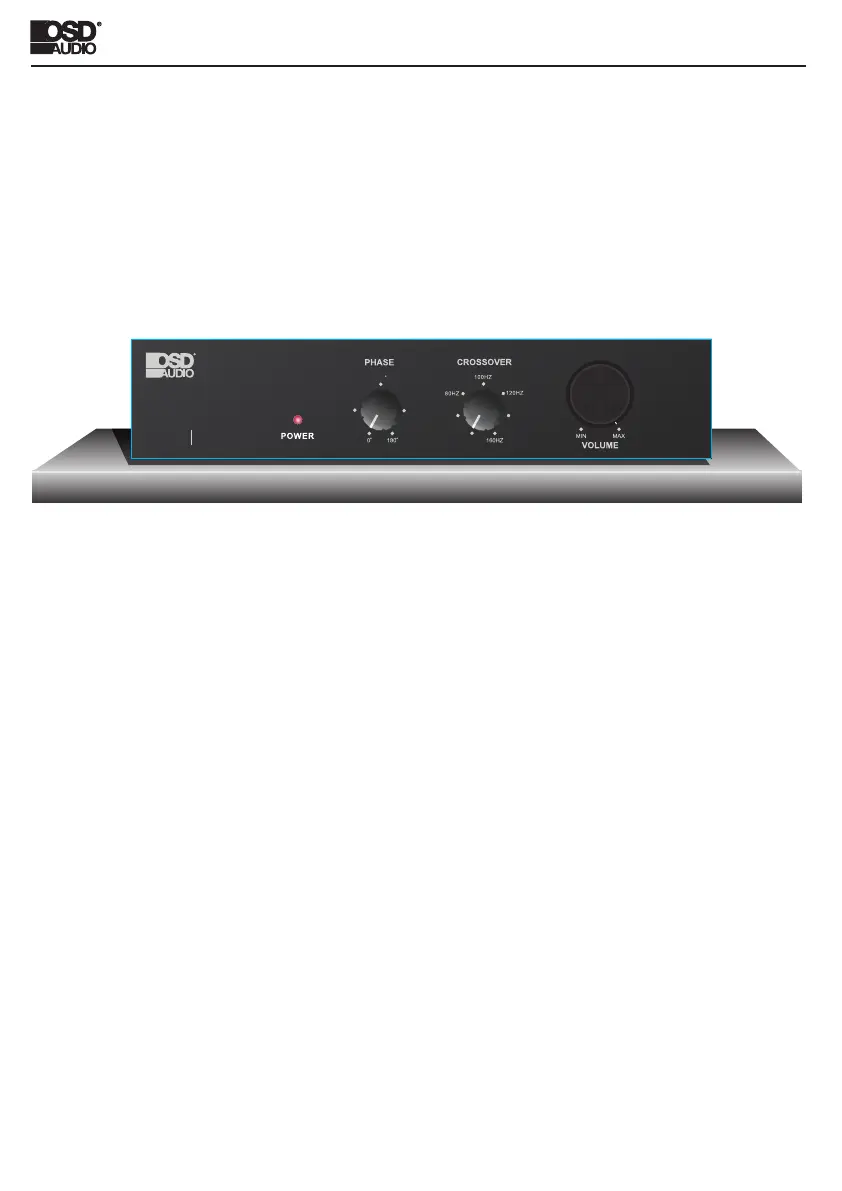

The SMP200 can be conveniently mounted on a shelf top as shown. Leave room for wires.
SHELF MOUNT
VENTILATION
Please be sure to not block the vents with wires or other objects that will block the free flow of
air through the amp.
INSTALLATION
90
35HZ
DIGITAL SUBWOOFER
A M PLIFIER
SMP200

OSD Audio SMP200 Specifications

Audio Specifications

maximum output power	120W/8Ω; 200W/4Ω
total harmonic distortion (THD)	1%
frequency response	20Hz-160Hz +/-1dB
signal to noise ratio	95dB
input sensitivity	200mV
crossover frequency	35-160Hz
phase adjustment	0-180°

General Specifications

trigger input voltage	+12VDC to +24VDC
line voltage range	110-120/220-240 VAC
standby power consumption	1.8W

Weight and Dimensions

dimensions (W x H x D)	8.5” x 1.75” x 9.8” (214mm x 250mm x 44mm)
overall length (including knobs/connectors)	10.7” (272mm)
weight	2.9 lbs (1.32 kg)
