OSD Audio SMP200 User Manual

SUB OUT
230V
115 V
AC IN:115V/230V,60/50Hz 250W
Stereo Amplifier or other
Line Level Input IIustration
to SMP200 Line IN
SMP200 Subwoofer Amp
SMP200 Sub OUT
stereo amplifier. You can also use the Sub OUT, LFE OUT or L&R Line Level OUT on just
shows the SMP200 connected to the Sub OUT on a
All connections are conveniently placed on the rear panel
for sane wire management,
convenient connections and simple service.

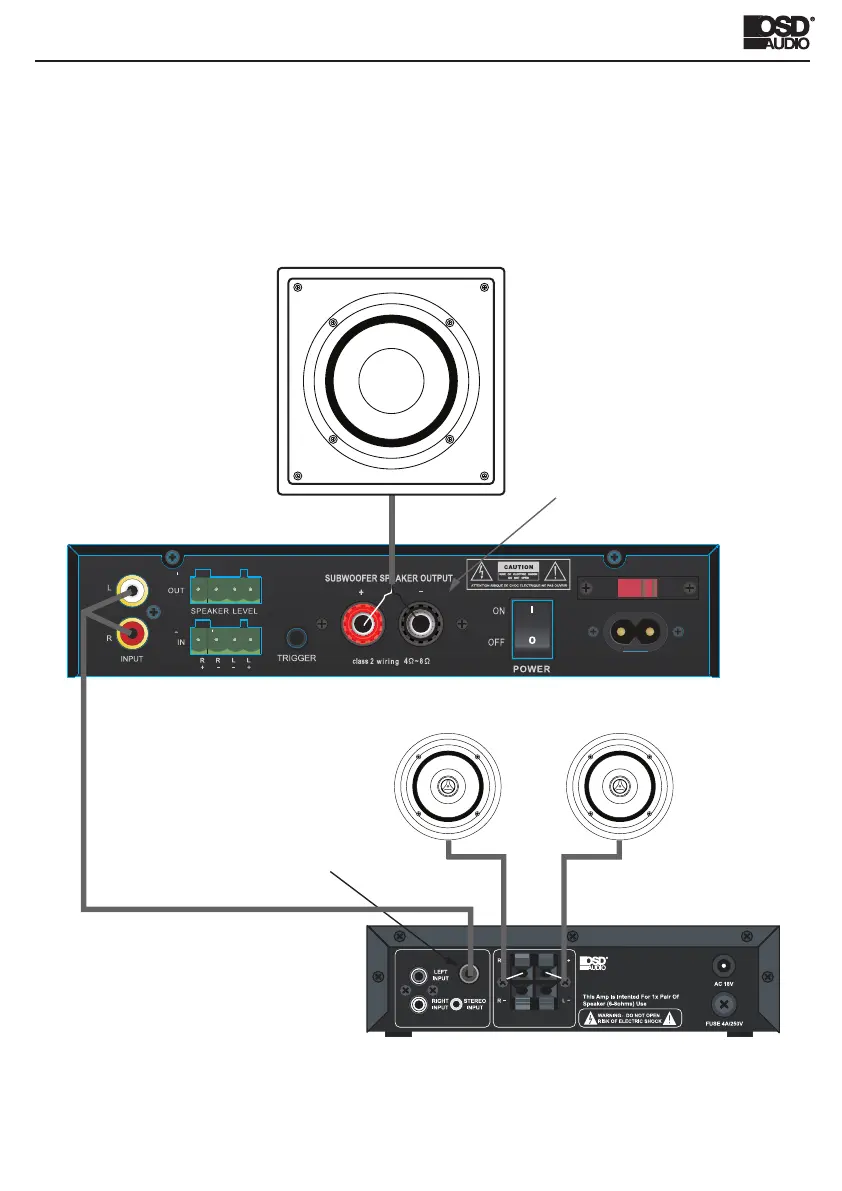

The Line Level Input Illustration
about any appropriately featured audio device.
amp/receiver with a subwoofer out
Ceiling Speakers
RCA Patch Cable
Amp or Receiver
Sub OUT
to Subwoofer
CONNECTION
6”or 8”
Subwoofer

OSD Audio SMP200 Specifications

Audio Specifications

maximum output power	120W/8Ω; 200W/4Ω
total harmonic distortion (THD)	1%
frequency response	20Hz-160Hz +/-1dB
signal to noise ratio	95dB
input sensitivity	200mV
crossover frequency	35-160Hz
phase adjustment	0-180°

General Specifications

trigger input voltage	+12VDC to +24VDC
line voltage range	110-120/220-240 VAC
standby power consumption	1.8W

Weight and Dimensions

dimensions (W x H x D)	8.5” x 1.75” x 9.8” (214mm x 250mm x 44mm)
overall length (including knobs/connectors)	10.7” (272mm)
weight	2.9 lbs (1.32 kg)
