Operating Instructions
1. Install the auxiliary box adapter on the
transmission jack mounting plate using the
carriage bolts and ange nuts provided. Tighten
the ange nuts. See Figure 1.
2. Plan the placement of the support screw and
stud to t your application. Figure 1 shows
the support screw and the stud assembled to
the adapter plate in one of several possible
arrangements.
3. Assemble both the support screw and the stud
to the plate with one ange nut above the plate
and one ange nut below the plate. The at
side of each ange nut must rest against the
plate.
4. Thread the lower ange nut on the stud all the
way to the bottom of the threads. This allows
room for adjustment.
5. Remove a bolt from the front of the transmission
auxiliary box.
6. Move the jack under the transmission, aligning
the stud with the hole where the bolt was
removed in the auxiliary box. Insert the bolt
through the stud and into the auxiliary box.
See Figure 2.

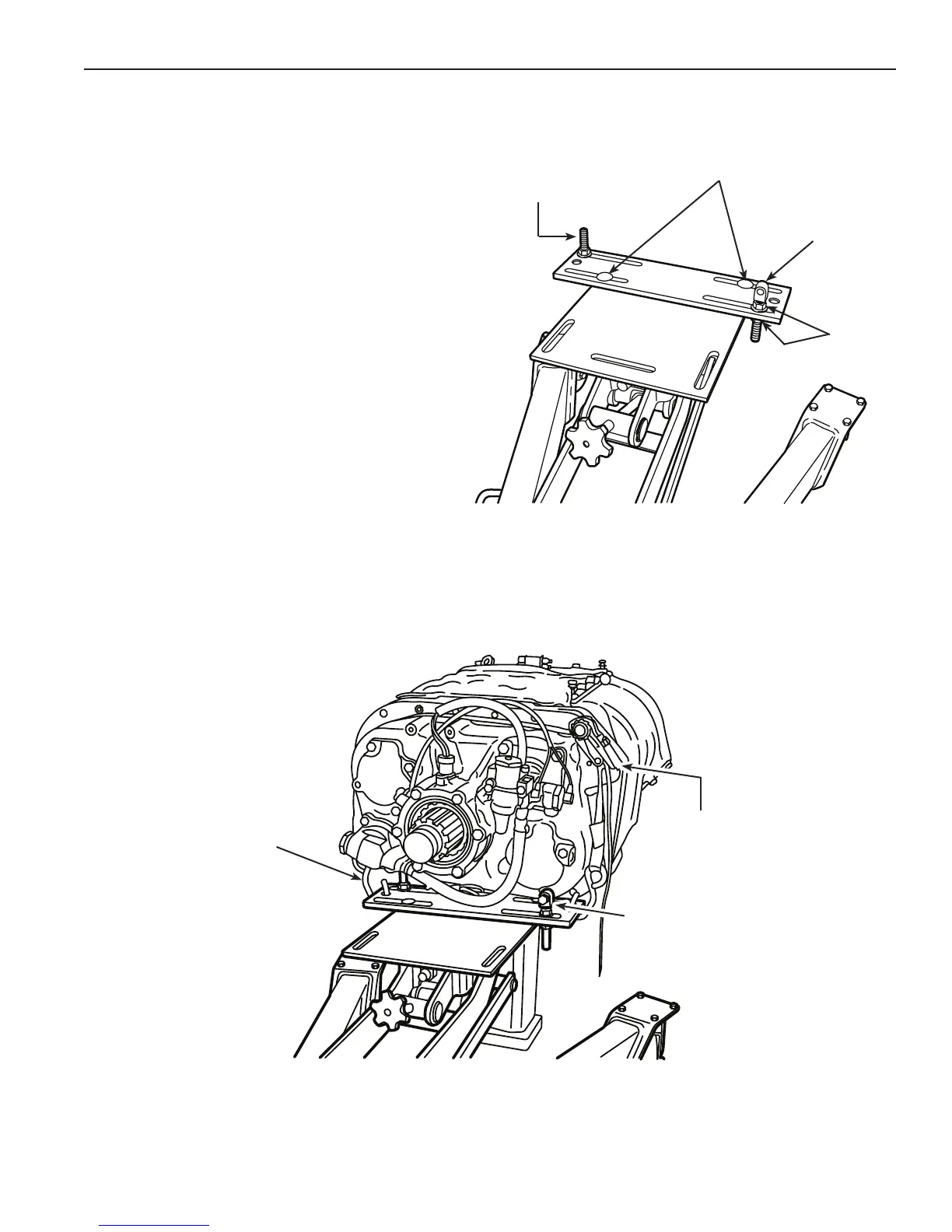

Carriage Bolt &
Flange Nut
Support Screw &
(2) Flange Nuts
Stud
Flange
Nuts (2)
Figure 1
Figure 2
Bolt Inserted Through
Stud and Auxiliary Box
Ratchet
Strap
Ratchet Strap
Hooked
Through
Hole in Plate
Parts List & Operating Instructions Form No. 561942
