4. Programming the chairlift
4.1 Need to know before programming
The chairlift must always be programmed, when moving to the right. (seen from user position)
Thus a lift which is mounted on the left side of the stairs, must be programmed from the endpoint at
the top till the endpoint of the bottom, and a lift which is mounted on the right side of the stairs, must
be programmed from endpoint of the bottom till the endpoint at the top.
Be careful, when using the servicebox in bypassmode the lift only stops when an endswitch is
operated. (Bypass see chapter 5.1 page 12)
When an overspeed governor is mounted on the chairlift, and the bypass-connector is connected and
activated, the lift will not stop when the overspeed governor contact (catch) opens,.
Please keep this in mind.

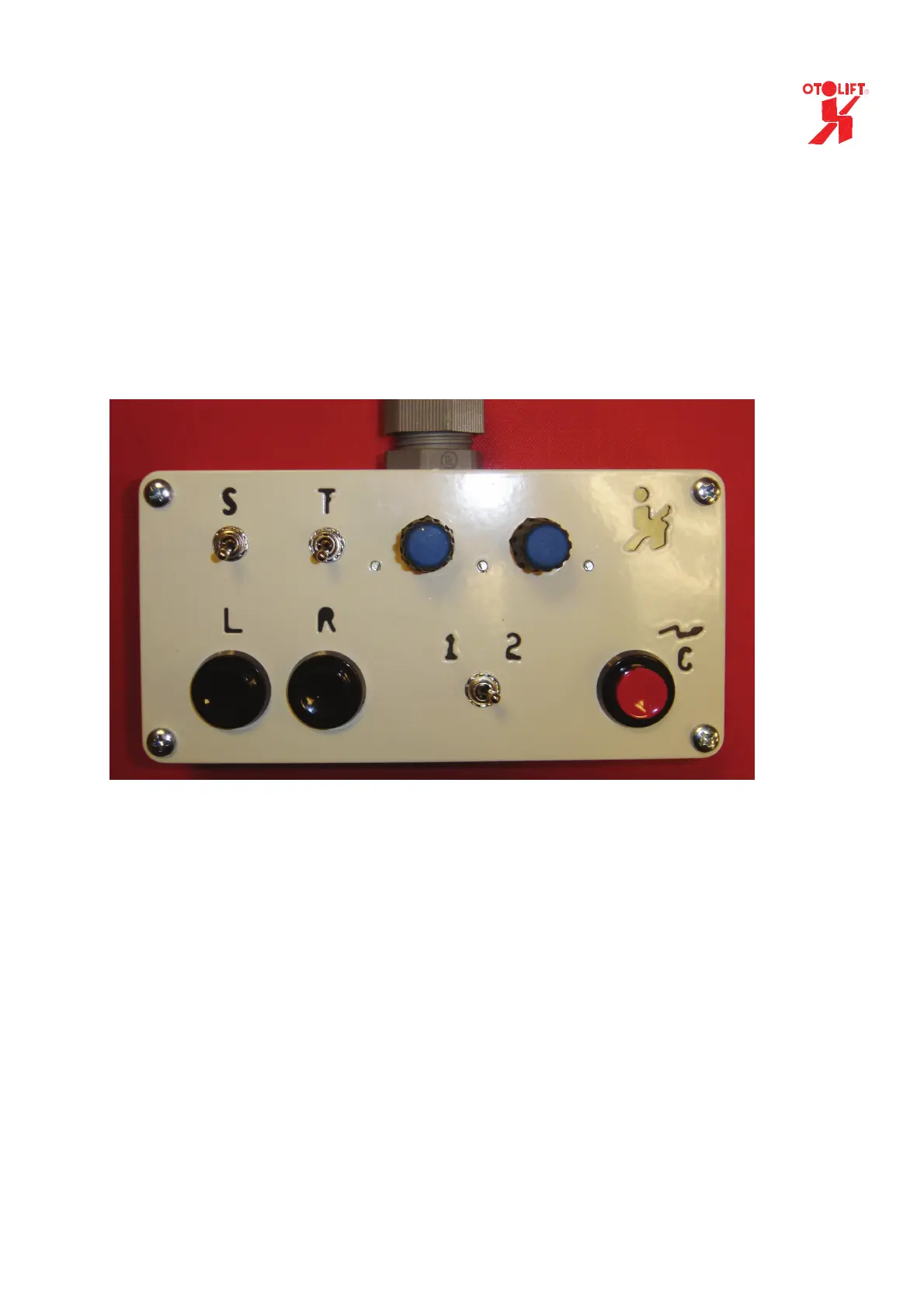

Servicebox control
S = Service => switch upwards = on / down = off
T = Teach in => switch upwards = on / down = off
L = move Left => switch operated = on
R = move Right => switch operated = on
1 2 = speed 1 or 2
C = Hold to Run Button Bypass Connector
Before programming, always check to make sure the lift stops at the endswitches.
Service + Left: the lift must stop when safety-cap endswitch left is controlled.
Service + Right: the lift must stop when safety-cap endswitch right is controlled.
The speeds must be set before starting programming the lift.
The position of the potentiometer is related to the speed.
With the switch below the potentiometers (1 2) you can choose the potentiometer-speed .
To see the actual set (potentiometer) speed, move the lift by Service and Left or Right.
During movement in service mode you can adjust the speeds.
Do not adjust the potentiometers during programming procedure.
