1. Chairlift in general
1.1 Basics
- Closed loop control for controlling the synchronous motor and DC brake.
- On board charging-circuit for charging the batteries (= 2x12V/7Ah)
- The lift is equipped with a buzzer on the PCB and a LED in the armrest for failure report to the user.
- The PCB has a display for failure report to the mechanic or installer.
- Errorlog for backwards failure handling.
1.2 Need-to-know locations

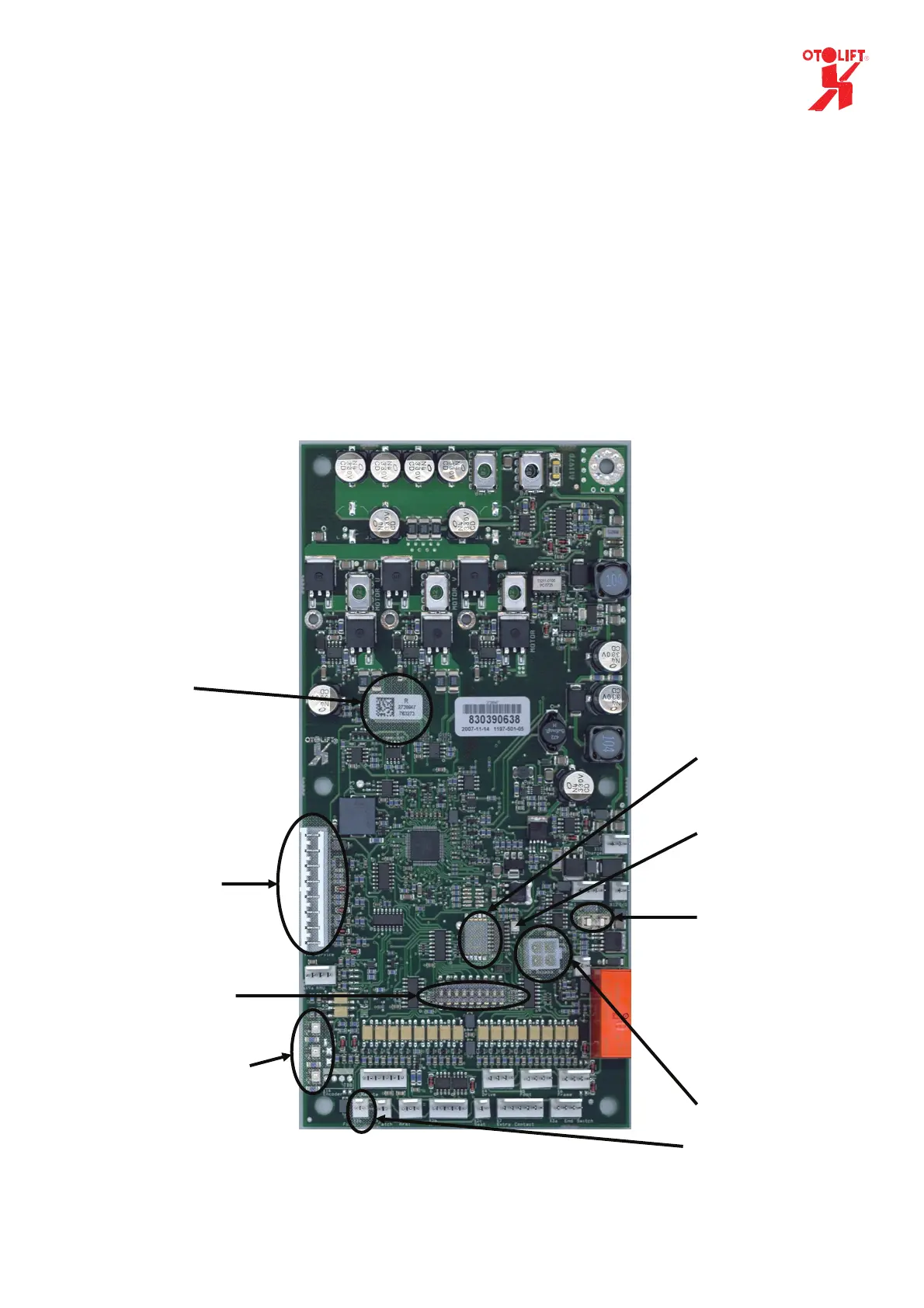

Service-
connector
X13
Dipswitches
Display
LED 1, 2 & 3
LED 4
PCB-
number
Bypass-
connectors
X15 and X3b
Fuse-
375 mA
