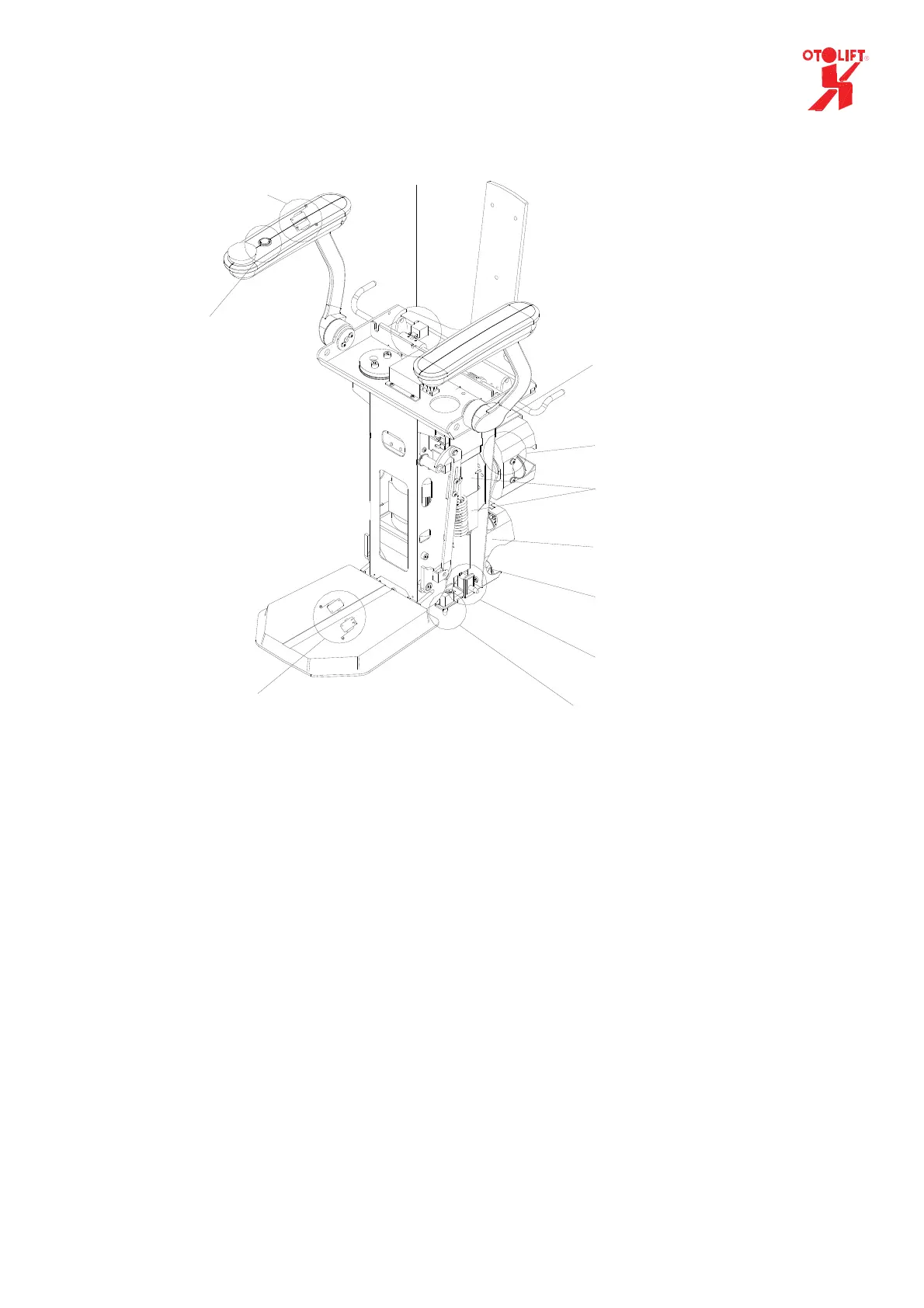

1.3 Names and locations
Control armrest (switch
left-right)
Armrest-switch
incl. LED
Safety switch chairframe
Overspeed governor (catch)
& rotation monitor unit
Safety switches footrest
Charging contact
Safety drive-unit
Receiver(s)
Safety switch bottom of chairframe
Endswitch
Swivelseat switch
1.4 Definition left/right
When the left or right side of the chair is mentioned, it is always seen from the position of the user
when he or she is seated on the chairlift.
Keep this in mind, when parts should be ordered, or when you ‘read’ the error or errorlog.
In the upper drawing the control armrest is mounted in the right armrest.
When a left or right rail is mentioned, it is always seen from the bottom of the staircase.
On the frontpage-photo you see a left rail.
1.5 software version
The version of the software which has been loaded into the PCB, will be shown when you connect the
PCB to the battery. In case of software C38 the display will show C, 3, 8, C, 3, 8, C, 3, 8 .
