9. Error-handling for mechanic

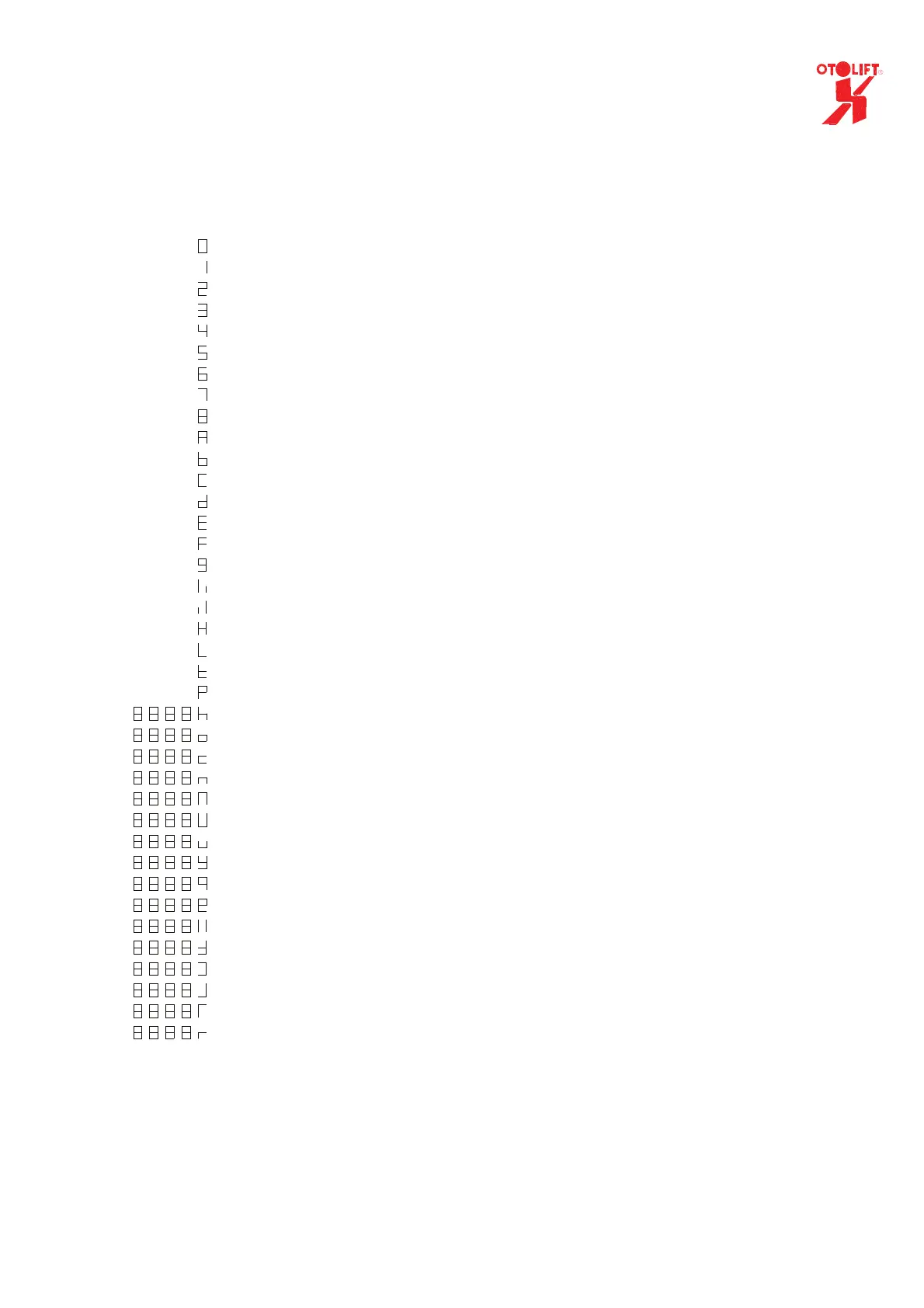

9.1 Diagnostic display
A display on the PCB shows the actual error. More detail info of this display errors is attached to this
document. (attachment 87900 error eng).
The display can show the following errors.
S witch in arm rest is in off position
Switch in armrest is on (main safety-line OK)
Swivelseat-switch is operated
Extra contact is not interconnected (by jumpers, 1-channel receiver or ssp 008 v3 and/or SENSOR)
Current consumption on x10-3 hinger than 100 mA
Lift is operated on two places
Lift did not charge for 1 or 8 hours. (depending setting dipswitch)
Lift was in sleepmode
Mechanic-needed-error. (1 till 12 gives fast beep).
Safety drive unit right controlled
Safety drive unit left controlled
S afety footrest right controlled
S afety footrest left controlled
Safety frame right (or underside rail left) controlled
S afety fram e left (or underside rail right) contro lled
Lift is on an endpoint and the endswitch in opposite direction is operated.
Endswitch right is controlled
Endswitch left is controlled
High load "overcurrent" (too much load on the chairlift)
Low battery-voltage
Temperature PCB too high
Rotation monitor unit defect (overspeed governer). (dipswitch 1 setting OK?)
Error 1 (h) Too high voltage on X10-1. (wiringfault of transformer/chargepoint)
Error 2 (o) Overvoltage on batteries during charging or movement.
Error 3 (c) Relay error or wiring brake not OK or connected (also see error 15 and 16)
E rror 4 (n) O ther volta ges are interconnecte d in safetyline
Error 5 (N) Interconnection between safetyline left and right
Error 6 (U ) P CB defect (HSL or HSR internally shortcircuit)
E rror 7 (u) P C B defect (H SL or H S R do not function)
Error 8 (y) smd fuse, overspeed governer (catch) or input limit interconnection not OK
Error 9 (q) One of the contacts on X7 do not work synchronised (defect contact?)
Error 10 (e) Defect encoder. (not applied/used in 86 model)
E rror 11 (11 ) B ypass-co nn ector is still connected (and active).
Error 12 (reverse t) Batteries did not reach max batterie voltage (after 3xC).
Error 13 ( J) 10x high output current x10-3
Error 14 ( j) Internal defect on PCB
Error 15 (
r )Relay does not become active. (C38 software or higher)
Error 16 ( r) W iring brake not connected. (C38 software or higher)
If for example the display shows 2, this means that the swivelseat-switch is controlled, or that the
wiring to this switch is defect.
In combination with the detail drawing of the wiring (attachment 86900 CW eng) it should be easy to
solve the problem, if the problem is related to the wiring.
An 8888x error is shown as a 4x blinking eight and then failure code .
All 8888x errors will generate a fast beep (5Hz).
Exception for error 8888J (error 13) This one does not generate the fast beep.
