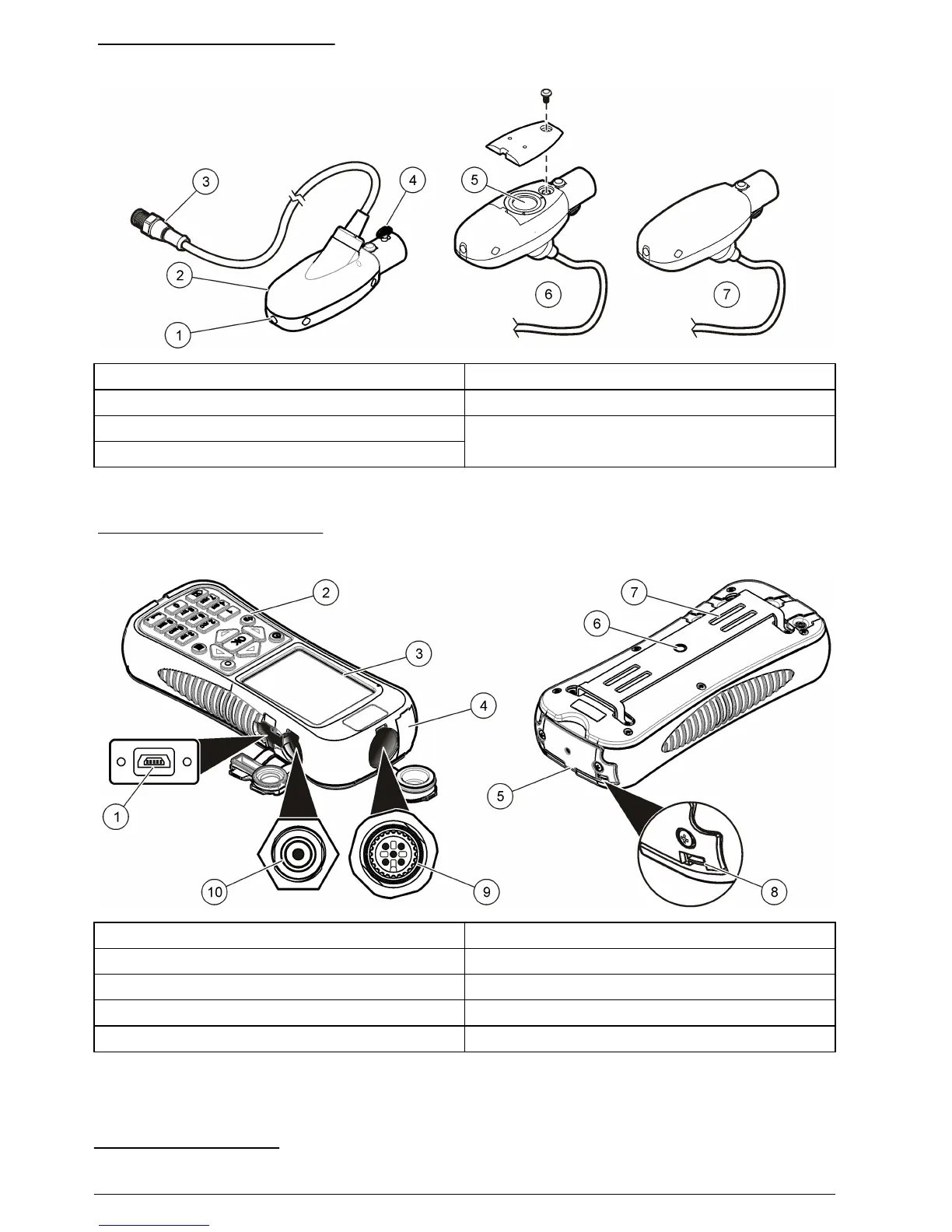

Figure 2 Sensor components
1 Sensor electrodes 5 Pressure cell (sensors with depth option)
2 Sensor body 6 Sensor with depth option
3 Sensor connection plug 7 Sensor without depth option
4 Sensor attachment thumb screw
Meter overview
Figure 3 shows the features of the meter.
Figure 3 Meter components
1 USB connection port
2
6 Threaded hole for adjustable meter mount
2 Keypad 7 Slots for velcro or strap attachment
3 Meter display 8 Slot for neck strap attachment threads (2x)
4 Expansion port (not used) 9 Sensor connection port
5 Battery compartment cover 10 Battery charger connector
2
Do not use the USB connection to charge the battery.
