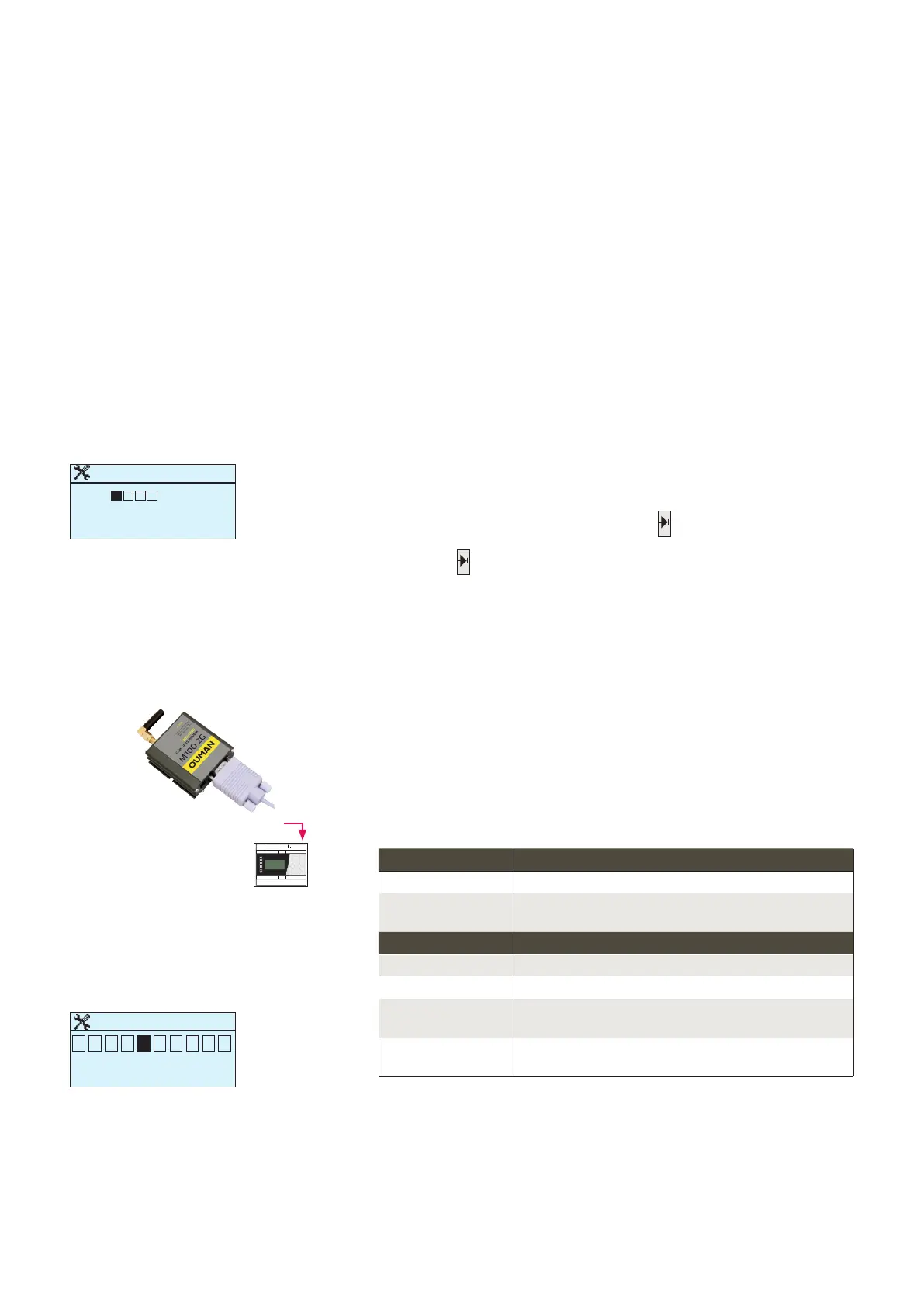

1.2 Text message (SMS) settings
Use of text messaging requires that the GSM modem (optional ac-
cessory) is connected to a Ouflex M.
SMS PIN:
If the SIM card has PIN inquiry in use, Ouflex M device asks you to
enter the PIN.
SMS PIN
Device ID
0
O U 0 1
Entering the code:
1. Turn the control knob and press to accept each number.
Press ESC to return to the previous digit.
2. Press for a number of seconds to accept the code.
Press ESC for a number of seconds to cancel.
Modem and SIM card status:
Device ID:
It’s possible to define device ID to Ouflex M. Device ID works as a pass-
word for SMS communication. When device ID (e.g. TC01) is in use, it
should be added in front of the keyword in every SMS (e.g. TC01 IN-
PUTS).
Signal strength:
Signal strength is expressed with the following descriptions:
”Excellent”, ”Good”, ”Moderate”, ”Low”, ”Very low” and ”Initialization
failed”. If signal strength indicates ”No network,” try changing the
modem’s location or use an additional antenna. If the signal strength
is ”Very low” you should also move the modem to another location to
try to improve signal strength. If ”Initialisation failed” is stated, check
that the SIM card is correctly installed.
Approve: Press and hold OK
Cancel: Press and hold ESC
Approve: Press and hold OK
Cancel: Press and hold ESC
System settings > SMS settings
Modem status Explanation / Instructions
Ok The modem is ready for use.
Not connected The modem is not connected or the connection is in-
correct.
SIM card status Explanation / Instructions
Unregistered The subscription agreement is not valid.
Registered The SIM card is ready for use.
PIN error Enter Ouflex M controller the same PIN as as the GSM
modem’s SIM card PIN.
PUK Use the SIM card in your phone and check if the SIM
card is locked (PUK code).
Take the GSM modem into use:
1. Enter your PIN
2. Make a blackout.
3. Connect the modem.
4. Switch the power on and the controller initializes the modem and
detects the message center (the message center number is not
visible on the display).
5. Check the signal strength and status of modem from Ouflex M
display
6. Enter Device ID, if you want.
7. Test the sms communication. Send to Ouflex M a message: Key
words. If the Ouflex M sends a message where is a list of key
words, text message communication is ok.
