www.cyrusher.com
14 / 29
automatic shutdown when the bike is in still state or there is
no operation.0 presents “won’t automatic shutdown”. The

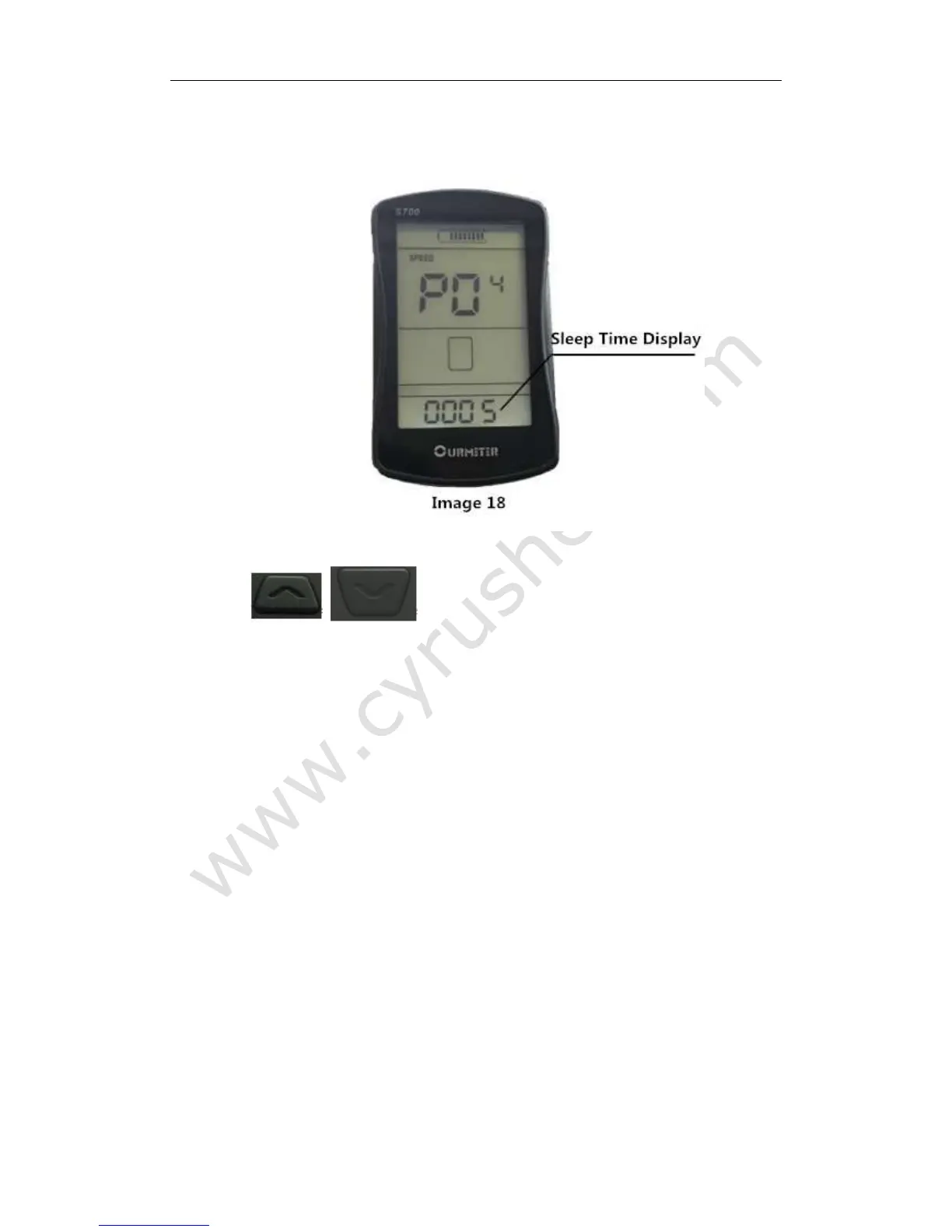

default sleep time are 5 minutes, as the image 18 shows.
5)
Assistance Stall: showing P05, shortly press the button
/ and it displays 0,1,2.
0: the assistant stall is 3-stall mode, which are stall 1,2,3;
1: the assistant stall is 5-stall mode, which are stall
1,2,3,4,5.
2: the assistant stall is 9-stall mode, which are stall
1,2,3,4,5,6,7,8,9.
When the assistant stall is 1, there are 5 stall modes on the
operation interface, as the image 19、20 shows.
