Outback Power Systems FLEXnet DC User Manual

26
ADV/DC/PAGE 1----------------
choose category

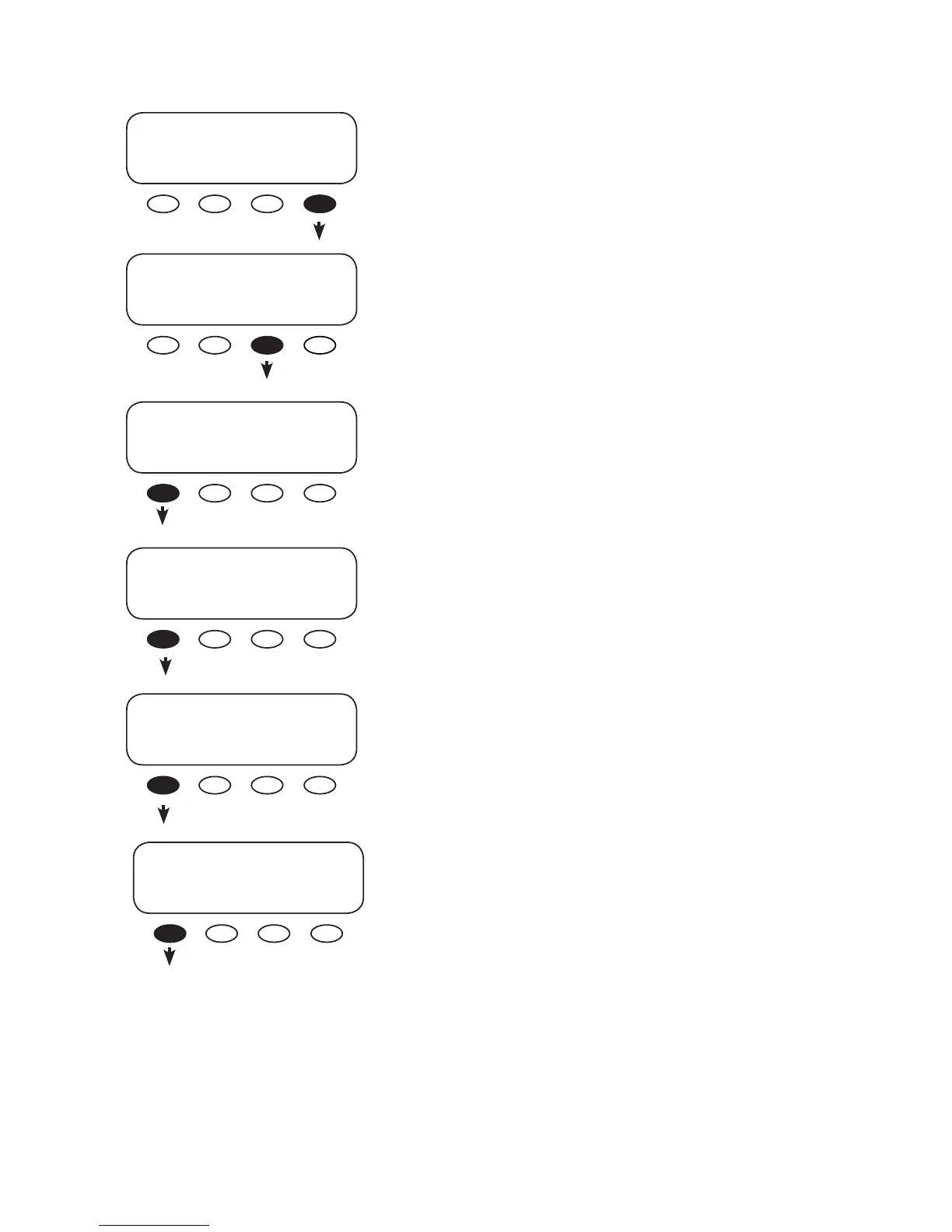

ADV BAT SHUNT PG2
Press the <PG2> soft key.
Use the low volts screen and the <INC> and <DEC> soft
keys to control the AUX by a high voltage value. Press the
<DOWN> soft key to view the SOC high % screen.
ADV/DC/AUX LOW VOLT------
low volts vdc
DOWN INC DEC TOP
Press the <AUX> soft key.
ADV/DC/PAGE 2-----------------
choose category:
PG1 CHARGE AUX PG3
ADV/DC/AUX SOC HIGH--------
SOC high %
DOWN INC DEC TOP
Pressing the <OFF> or <ON> soft keys will manually shut the
AUX o (the relay is open) or turn it on (the relay is closed),
respectively. In Auto mode, the AUX is controlled by user-
determined set points. After setting the AUX control, press
the <DOWN> soft key.
ADV/DC/AUX CONTROL--------
currently: Auto On
DOWN OFF AUTO ON
Use the high volts screen and the <INC> and <DEC> soft
keys to control the AUX by a high voltage value. Press the
<DOWN> soft key to view the low volts screen.
ADV/DC/AUX HIGH VOLT------
high volts vdc
DOWN INC DEC TOP
Use the <INC> and <DEC> soft keys to change the SOC high
percentage to trigger the AUX function. Press the <DOWN>
soft key to view the SOC low % screeen.
