Outback Power Systems MATE User Manual

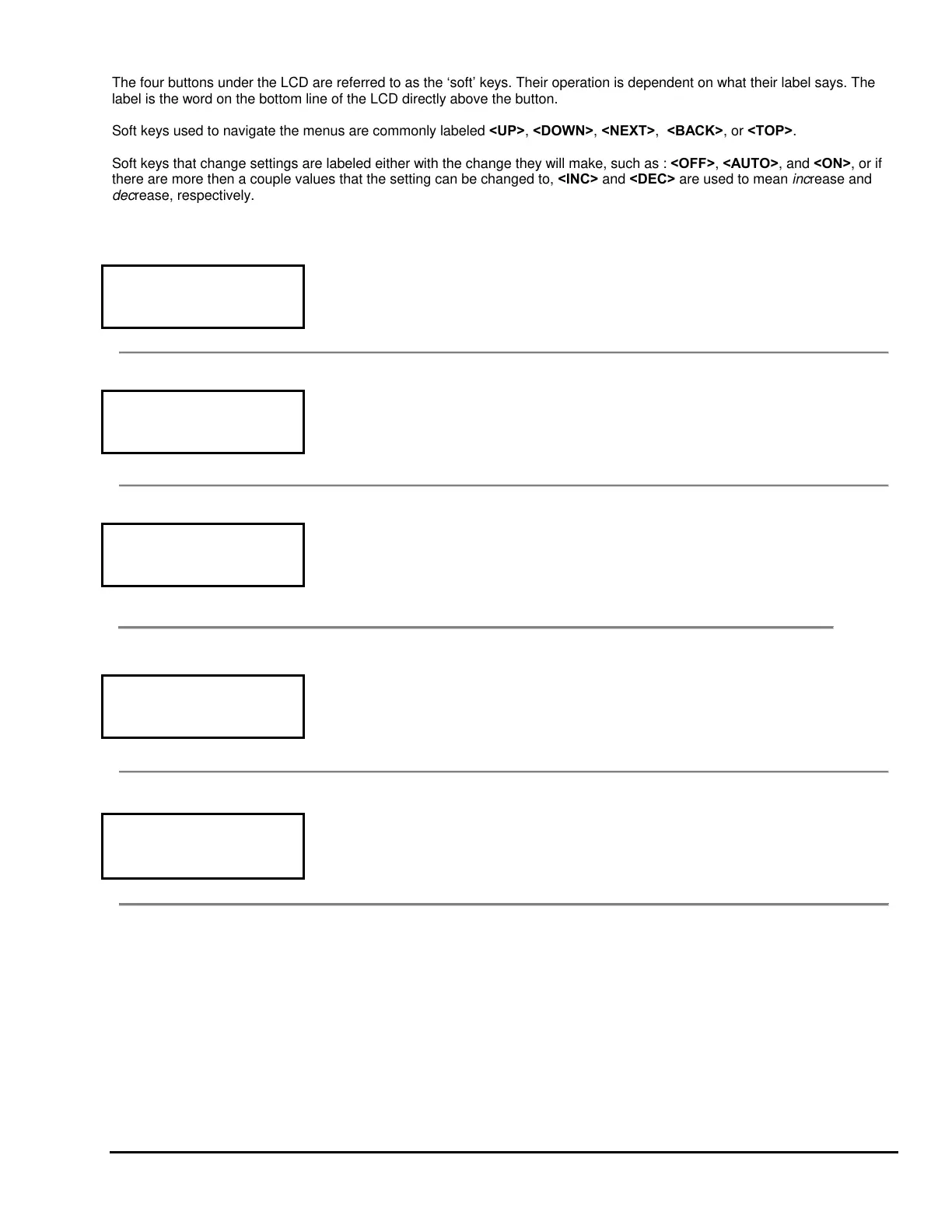

2.2.3 ‘SOFT’ Keys
The four buttons under the LCD are referred to as the ‘soft’ keys. Their operation is dependent on what their label says. The
label is the word on the bottom line of the LCD directly above the button.
Soft keys used to navigate the menus are commonly labeled
<UP>, <DOWN>, <NEXT>, <BACK>, or <TOP>.
Soft keys that change settings are labeled either with the change they will make, such as :
<OFF>, <AUTO>, and <ON>, or if
there are more then a couple values that the setting can be changed to,
<INC> and <DEC> are used to mean increase and
decrease, respectively.
SETUP/FX/INPUT---P00
Copyright 2003 © OutBack Power Systems, Inc User Manual . MATE System Controller and Dis
p
la
y
19009 62
nd
Ave NE, Arlington WA 98223 USA
Tel 360 435 6030 Fax 360 435 6019 Rev 2.30 03/31/04 Page 7
ac transfer GRID
control
DOWN GRID GEN PORT
In this example, pressing
<DOWN> will take you to the next setpoint screen in
the SETUP/FX/INPUT menu.
SETUP/FX/INPUT---P00
Input setup
completed
TOP SETUP MAIN
In this example, pressing
<TOP> will take you to the first setpoint screen in
the SETUP/FX/INPUT menu.
<SETUP> will return you to the SETUP/FX
screen, and
<MAIN> will take you back to the Main screen.
SETUP/FX/INPUT---P00
ac transfer GRID
control
DOWN GRID GEN PORT
In this example, pressing
<GRID> will change the FX AC transfer control to
GRID mode. Conversely, pressing <GEN> will change the FX AC transfer
control to
GEN mode.
SETUP/FX/INPUT---P00
ac1/grid 60 aac
limit
DOWN INC DEC PORT
In this example, pressing <INC> or <DEC> will change the numerical value of
the
ac1/grid limit setting.
ADV/FX/AUX-------P00
aux output Remote
function
DOWN INC DEC PORT
In this example, there are multiple operating modes for the aux output function.
Pressing
<INC> or <DEC> will cycle through the available modes.
