7
C14
Assembly
IMPORTANT!
• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
• The assembly of this barbecue requires 2 people.
• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
• Please read the Important Information section carefully before assembly and use of your
barbecue.
2

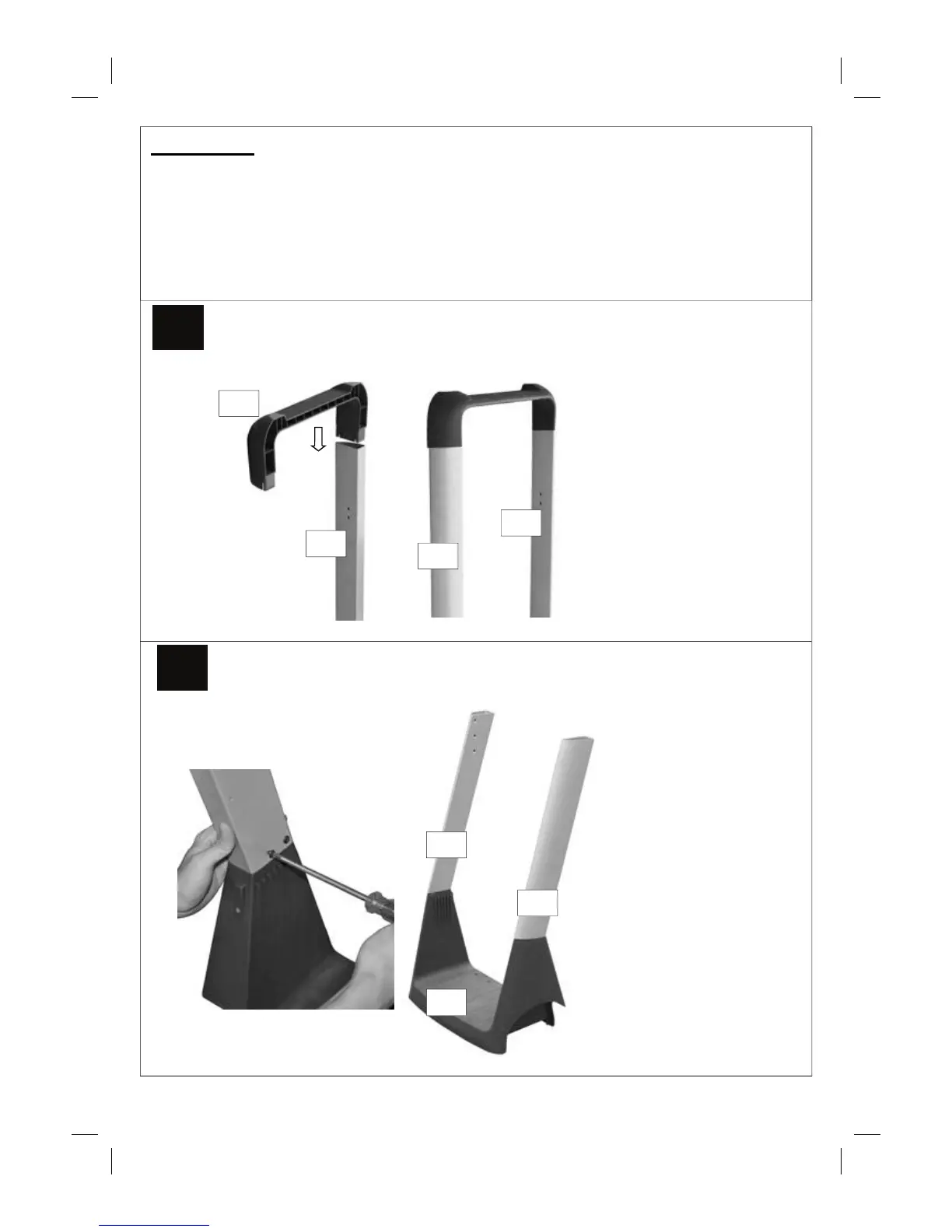

Attach the Left Front Leg
(C11) and Left Rear Leg
(C12) to the Gas Bottle
Holder (C16) using
ST4.0x10 Screws(D4).
C17
Attach the Right Front Leg
(C13) and Right Rear Leg
(C14) to the Leg End Loop
(C17). The legs are a push
fit onto the leg end loop. In
case of difficulty, they may
need tapping with a soft
faced mallet. Take care not
to damage the parts.
1
Excel 200 Excel 300
Excel 200 Excel 300
C11
C12
C16
C13
C14
