Outback Meteor 4 - Assembly Guide; Cabinet and Base Assembly

5
Assembly
IMPORTANT!
 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
 Remove any internal component or packaging from the barbecue body.
 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
 Please read the Important Information section carefully before assembly and use of your
barbecue.
1
2

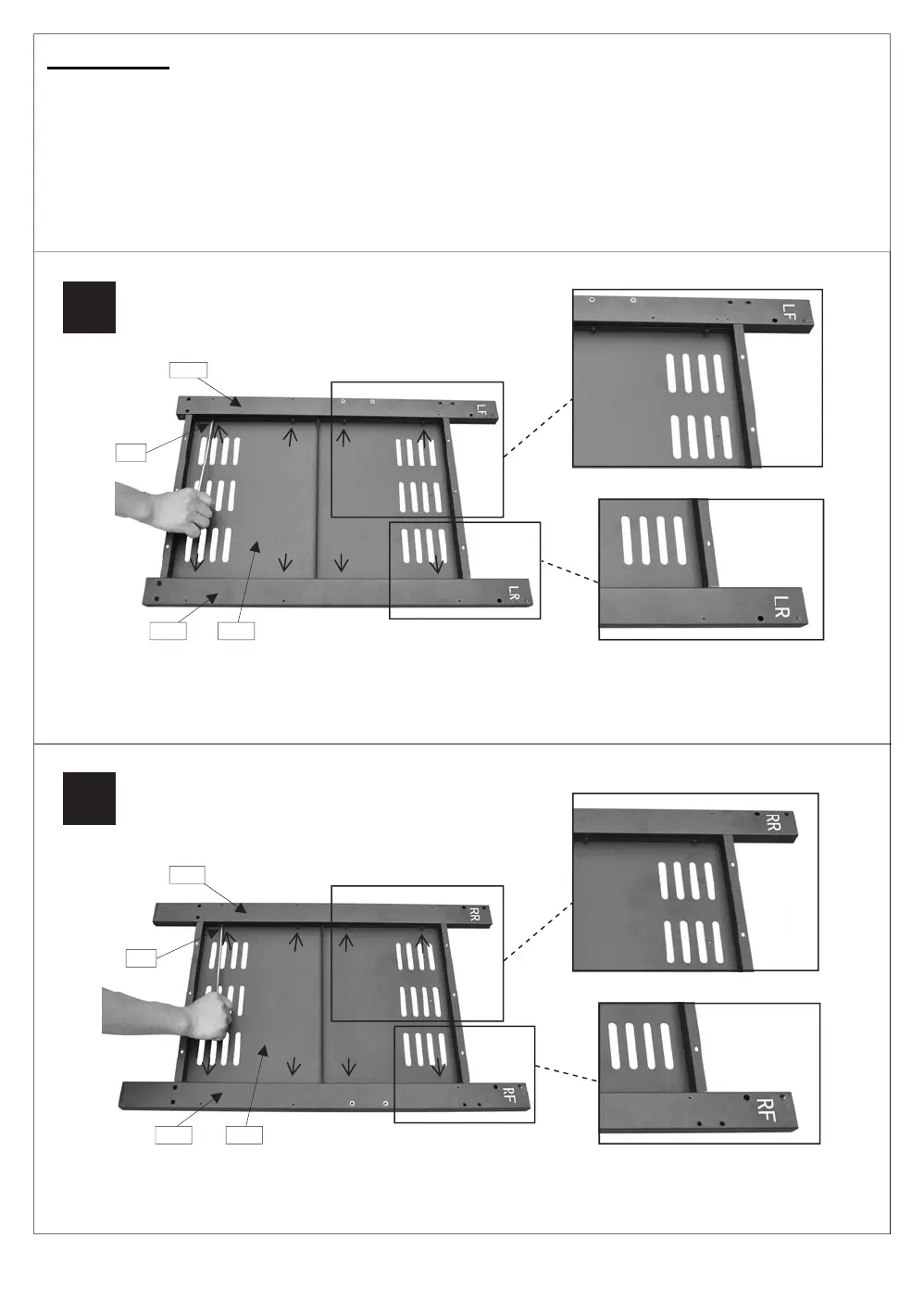

Attach the Left Legs (C10,C11) to the Side Panels (C18x2pcs) using ST4.0x10 Screws
(D1x8pcs) as shown.
Attach the Right Legs (C12,C13) to the Side Panels (C18x2pcs) using ST4.0x10 Screws (D1x8pcs)
as shown.
Left Cabinet Panel Assembly
Right Cabinet Panel Assembly
C10
C11
D1
C18
C13
C12
D1
C18
