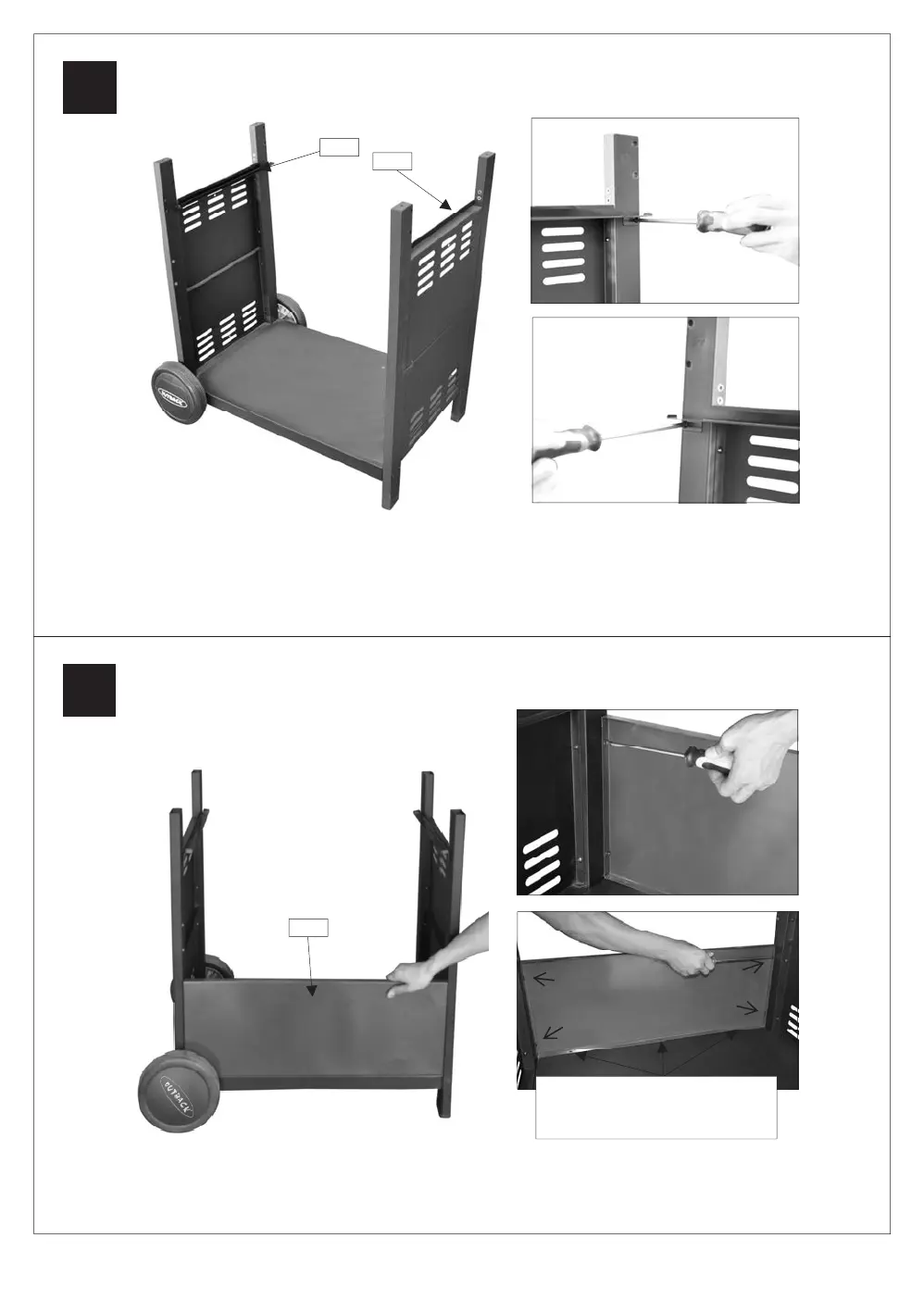

Attach Drip Tray Left Bracket (B8) to the left legs using ST4.0x10 Screws (D1x2pcs) as shown.
Repeat above process for Drip Tray Right Bracket (B9).
Install Front Panel (C17) between left / right front legs using ST4.0x10 Screws (D1x4pcs).
5
6
C17
NOTE: Please Ignore Holes at
Base of Front Panel(C17) No
Screws are Required.
B8
B9
