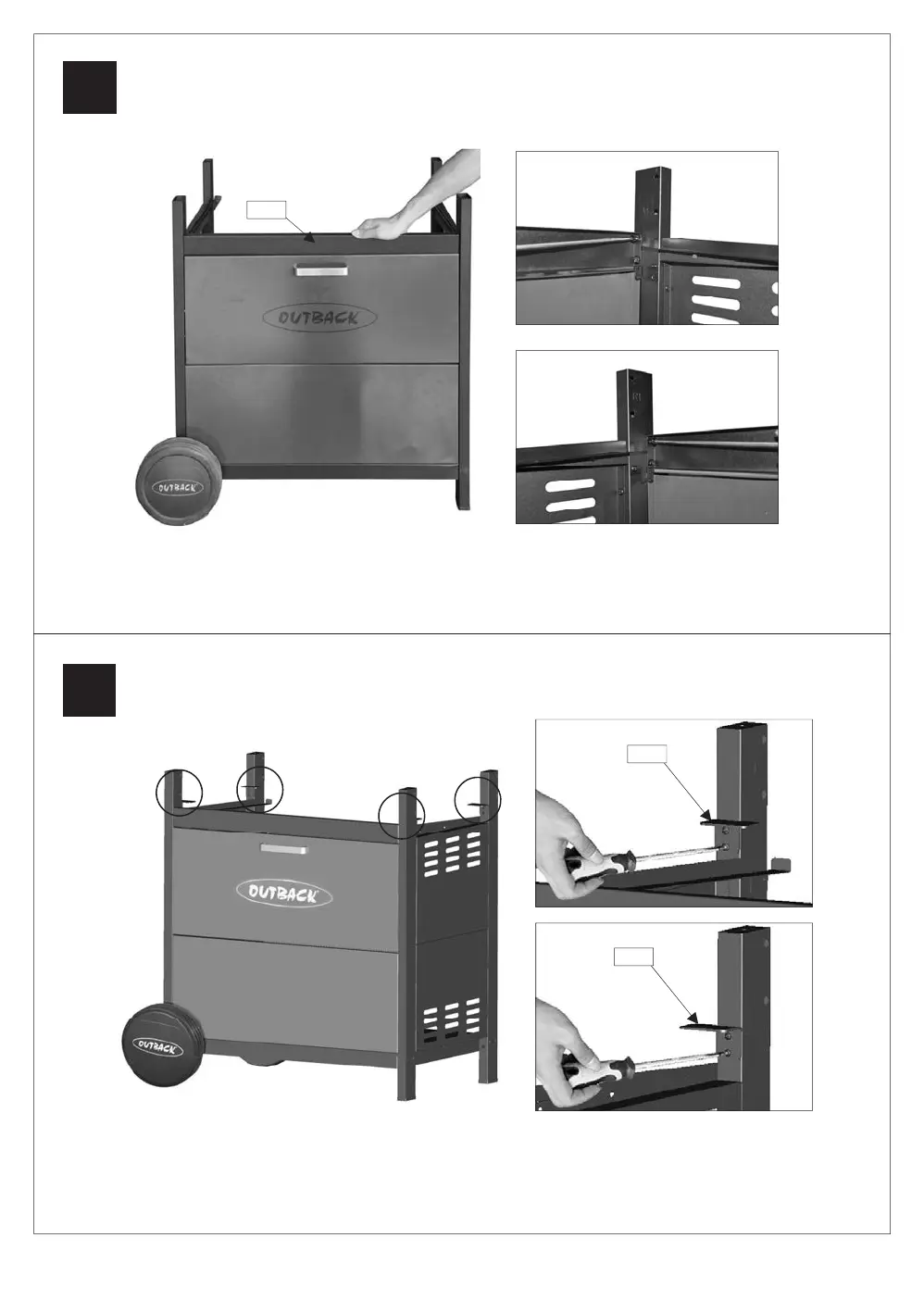

Attach the Upper Support (C14) to the front legs using M6x15 Bolts (D4x4pcs).
C14
Remove the retaining bolts from legs, and then attach Body Support A (C23) onto the left rear
leg and right front leg and attach Body Support B (C24) onto the right rear leg and left front
leg using the retaining bolts.
