S-176-9-E
※
Option
8.2 Meter Size 39
◇

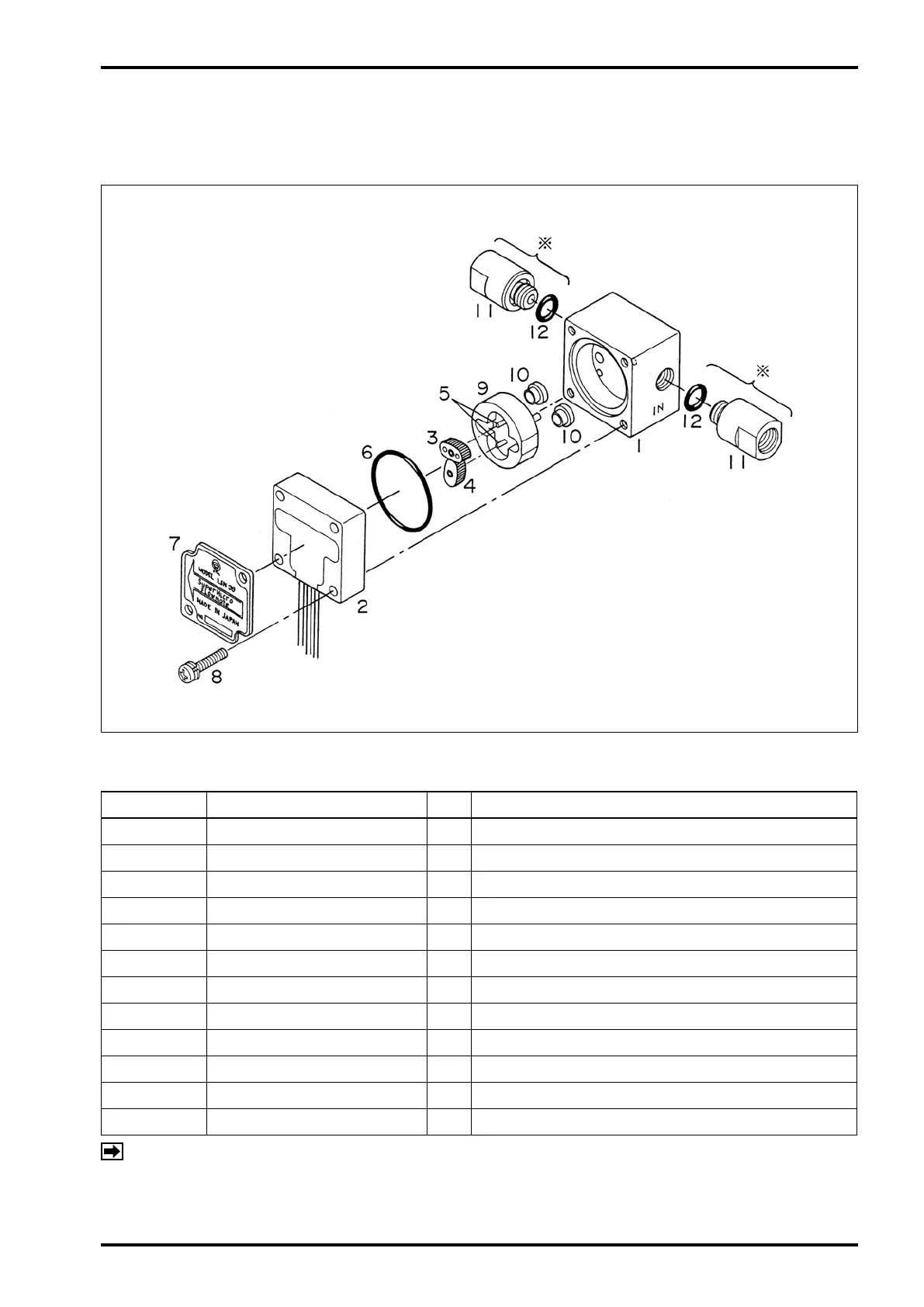

Exploded View
◇
◇
Parts List
◇
Symbol No. Part Name Q'ty Remarks
1 Meter Body 1
2 Front Cover with MR Sensor 1 Molded MR sensor built in (lead wires
200mm)
3 First Rotor 1 Signal generating magnet embedded
4 Second Rotor 1
5 Rotor Shaft 2 Press t into the inner case
6 O-Ring 1 S-3
2
7 Nameplate 1
8 Screw 4 Washer provided (M4
×
20)
9 Inner Case 1
1
0 Seal Cap 2
※
11 Fitting 2 300 mesh net incorporated
※
12 O-Ring for Fitting 2 S-
10
NOTE :
※
Option
●
When ordering replacement parts, please specify the product No., flowmeter model,
instruction manual No., symbol No., part name, quantity desired, etc.
To Next Page
