Oval LSF40 Series - Meter Sizes 40, 4 and 45

14
S-176-9-E
Connector
8.3 Meter Sizes 40, 41 and 45
◇

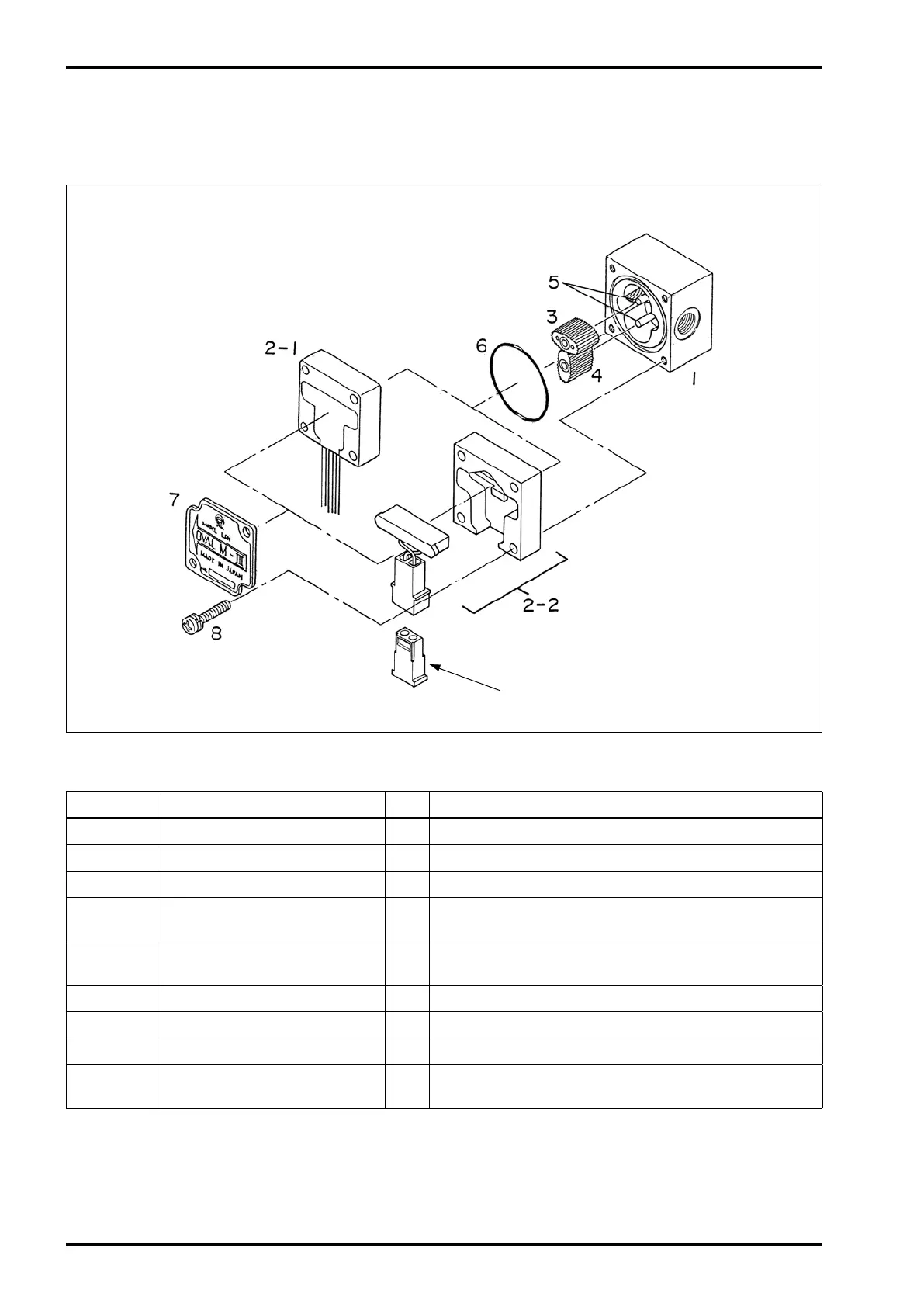

Exploded View
◇
◇
Parts List
◇
Symbol No. Part Name Q'ty Remarks
1 Meter Body 1
2
-1 Front Cover with MR Sensor 1 Molded MR sensor built in (lead wires
200mm)
2-2 Front Cover with Reed Switch 1 Connector provided
3 First Rotor 1
With bearing and signal generating magnet
(Meter size 40 without bearings)
4 Second Rotor 1
With bearing
(Meter size 40 without bearing)
5 Rotor Shaft 2 Press t into the meter body with built-in O-ring
6 O-Ring 1 Meter sizes 40, 4
1: S-32 ; Meter size 45 : S-42
7 Nameplate 1
8 Screw 4
Washer provided
(Meter sizes 40,
41: M4
×20 ;
Meter size 45: M5
×25)
◦
When ordering replacement parts, please specify the product No., owmeter model,
instruction manual No., symbol No., part name, quantity desired, etc.
