8. EXPLODED VIEWS AND PARTS LISTS
8.1 Meter Size 38
◇

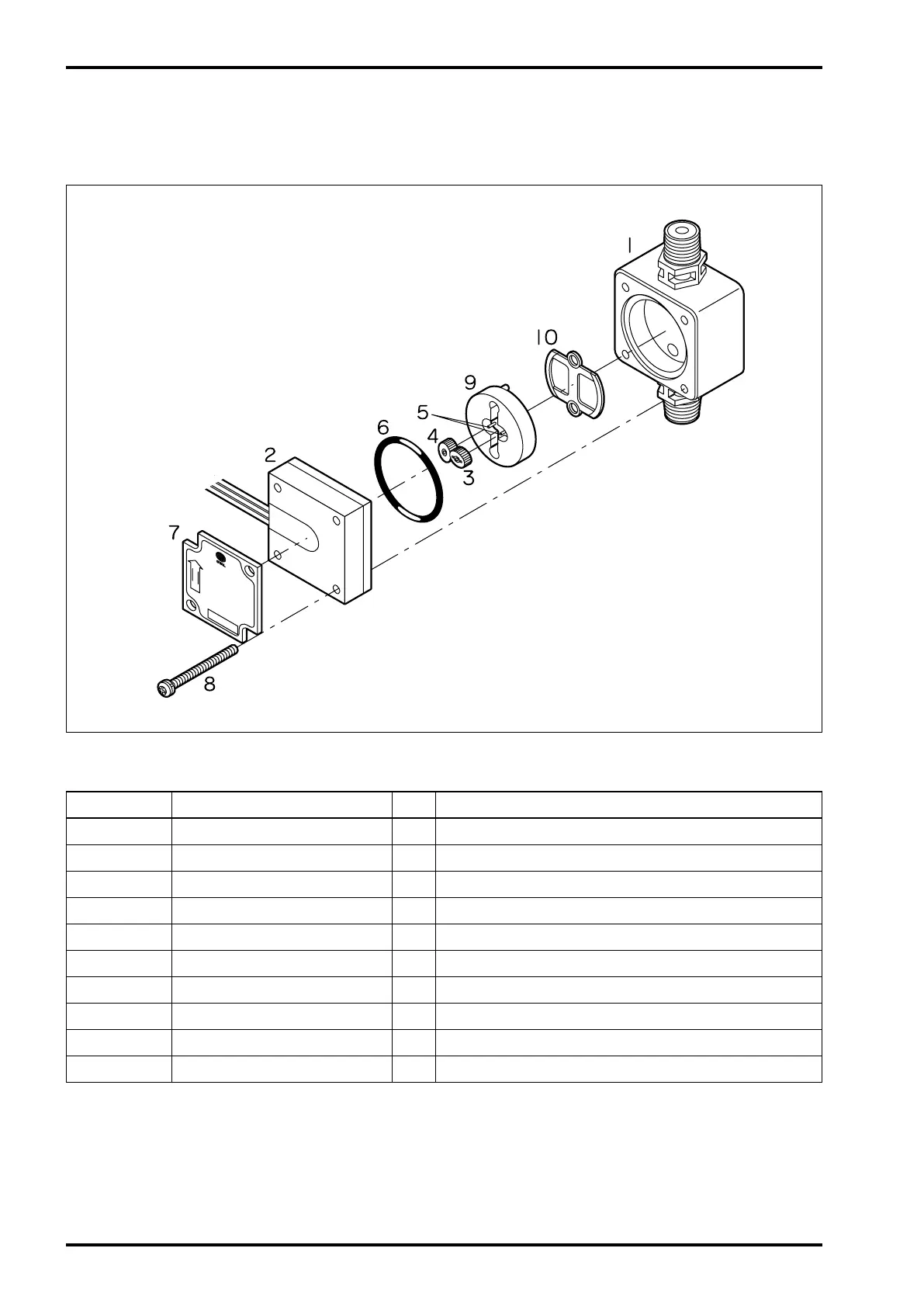

Exploded View
◇
◇
Parts List
◇
Symbol No. Part Name Q'ty Remarks
1 Meter Body 1
2 Front Cover with MR Sensor 1 Molded MR sensor built in (lead wires
200mm)
3 First Rotor 1 Signal generating magnet embedded
4 Second Rotor 1
5 Rotor Shaft 2 Press t into the inner case
6 O-Ring 1 S-3
2
7 Nameplate 1
8 Screw 4 M4
×
35 washer, hex nut provided
9 Inner Case 1
1
0 Inner Case Retaining Gasket 1
◦
When ordering replacement parts, please specify the product No., owmeter model,
instruction manual No., symbol No., part name, quantity desired, etc.
MODEL
SuperMicr
o
MADE I N JA
PAN
mL
／
P
LSF38
NO.
TOP
OUT
IN
BOTTOM
